HVAC Brass Flare Connector with Copper Tube Tail – Refrigeration,45° SAE flare x solder. Forged brass body with copper tube tail. SAE J512/J513 compliant. Connects flare joints to brazed tubing without extra adapters. Sizes 1/4″ to 3/4″. 700 psi rated.

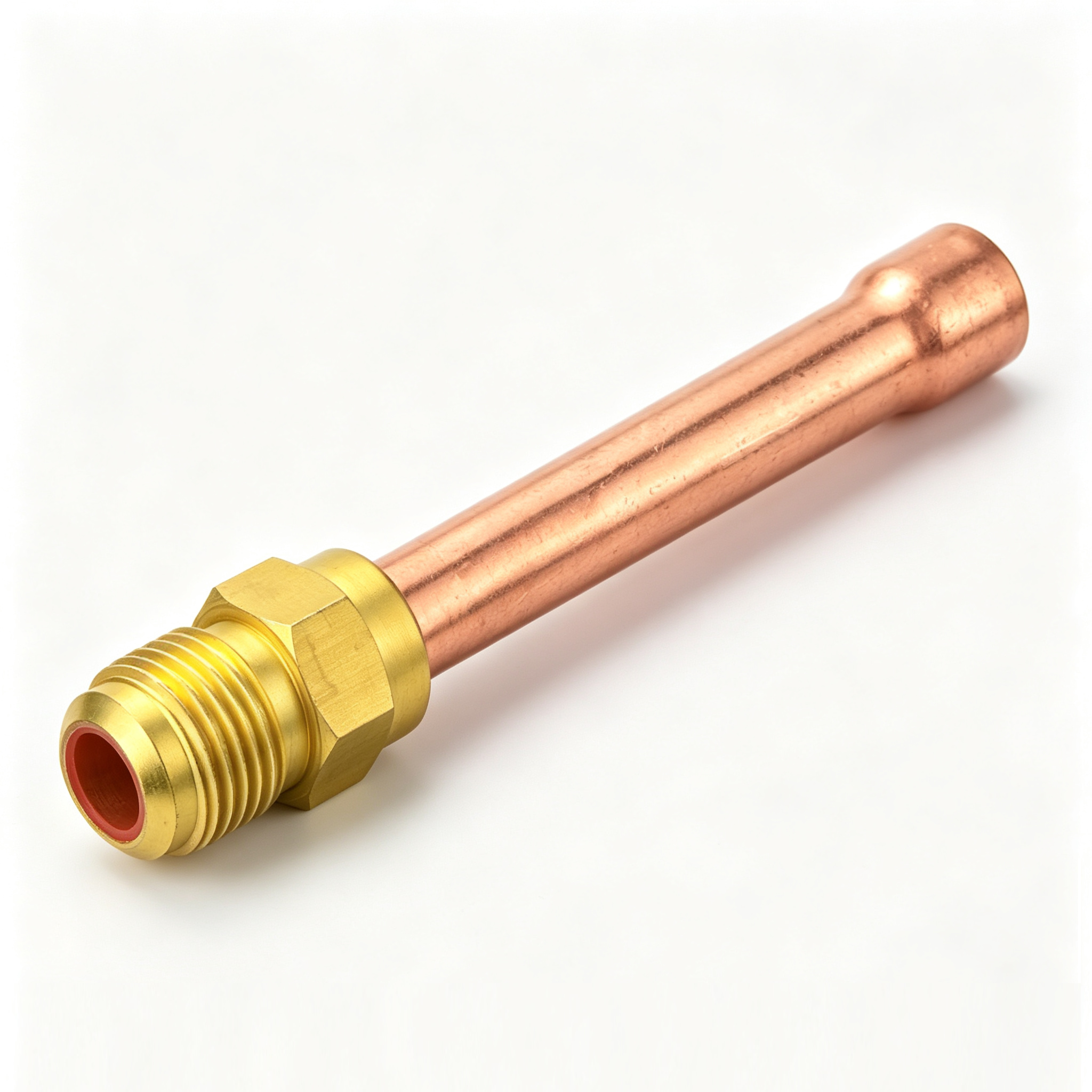

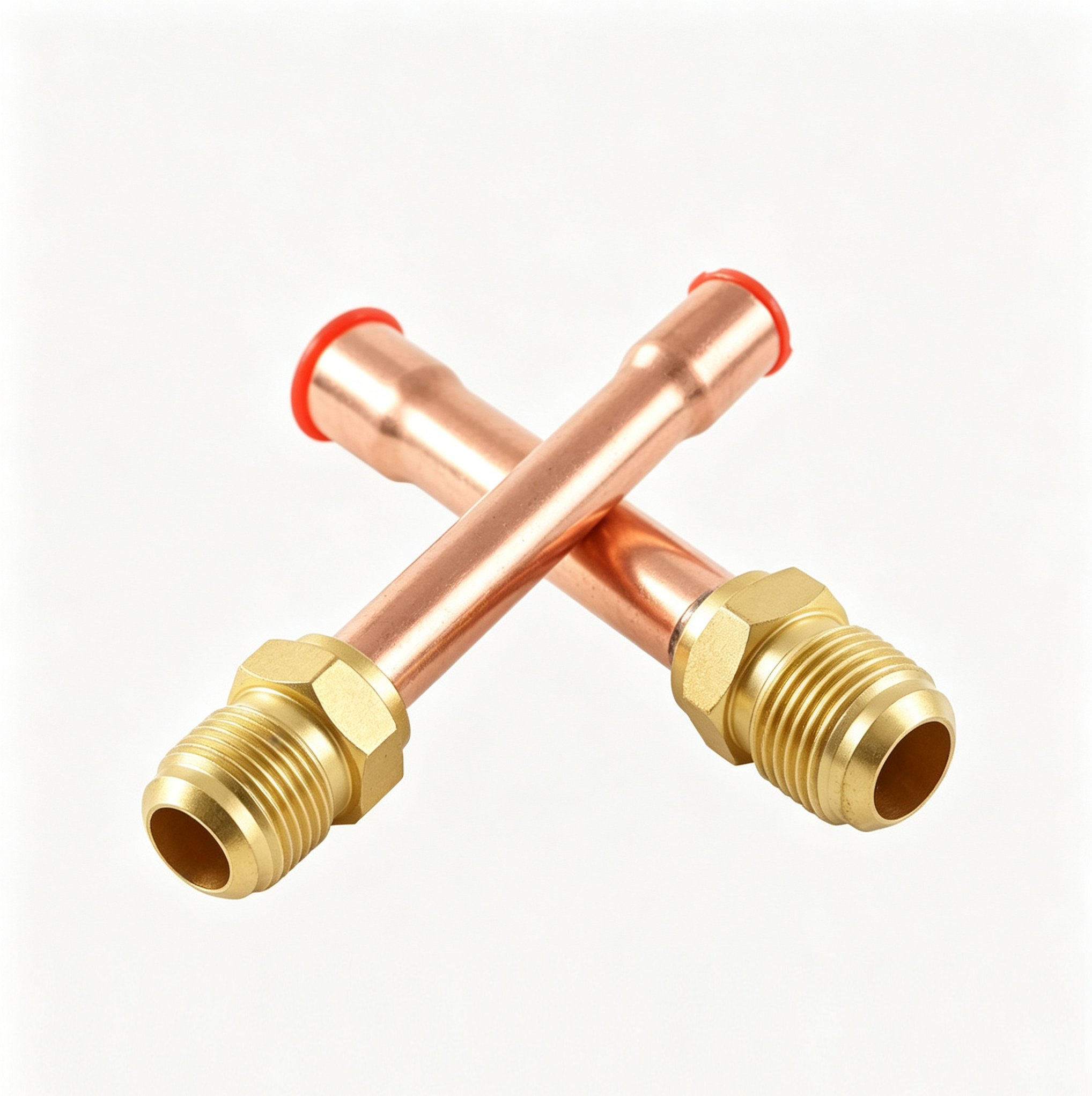

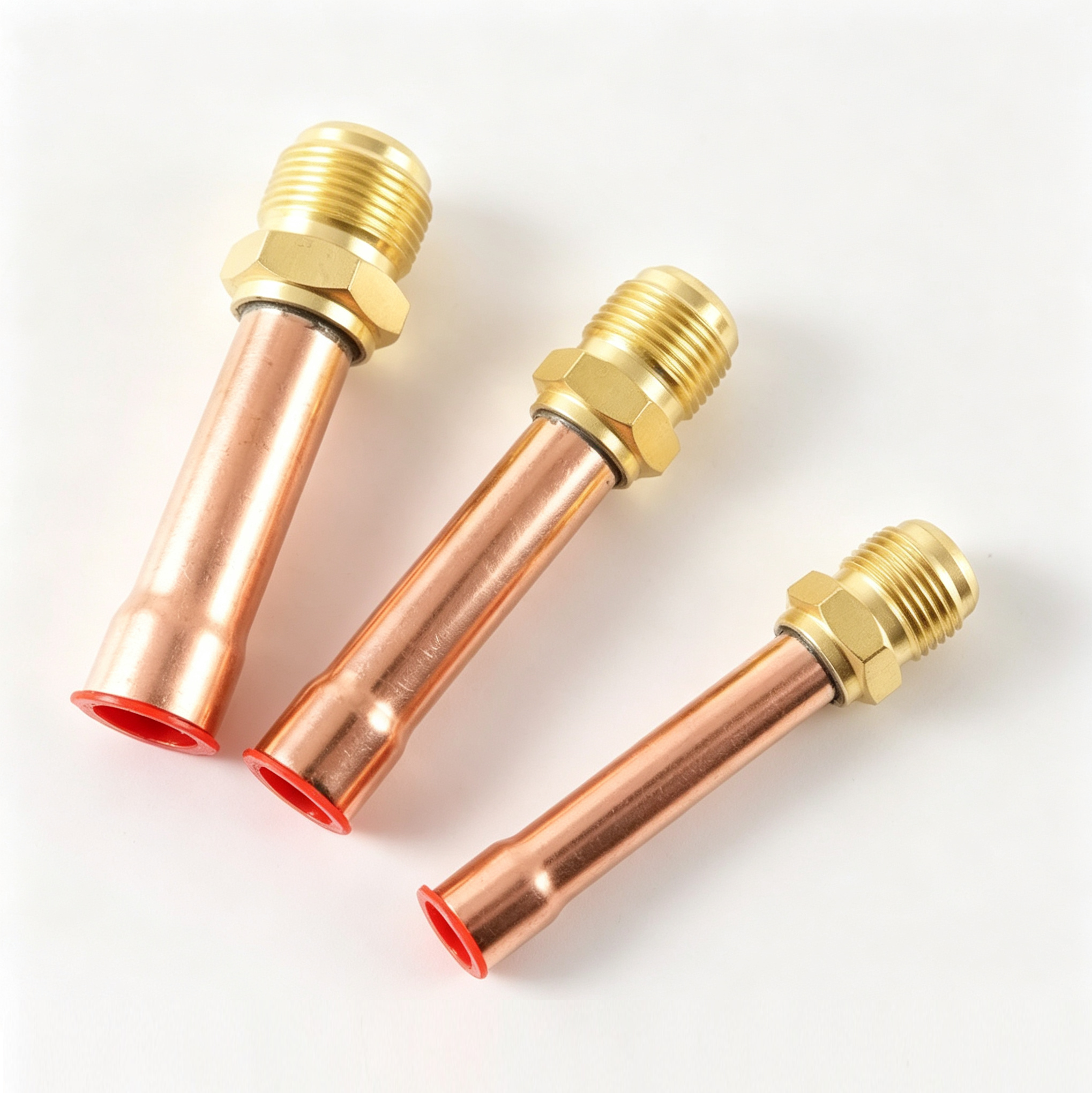

Our Brass Flare Connector with Copper Tube Extension is a precision-machined fitting designed to transition between a 45° SAE flare connection and a soldered copper tube in air conditioning, refrigeration, and heat pump systems. The brass body features a male flare end with a forged hex nut, while the copper tube tail provides a solder-ready connection point.
Manufactured from forged brass with a high-purity copper tube, it offers high mechanical strength, vibration resistance, and a pore-free structure that prevents refrigerant seepage. The 45° flare seat creates a metal-to-metal seal that can be assembled and disassembled repeatedly without brazing, making it ideal for service access and field repairs where soldering is impractical.
| Parameter | Details |
|---|---|
| Material | Forged Brass Body + Copper Tube |
| Standard | SAE J512 / SAE J513 |
| Type | Flare Connector with Copper Tube Extension |
| Connection | 45° SAE Male Flare x Solder (ODS) |
| Size Range | 1/4″ – 3/4″ (6.35mm – 19.05mm) |
| Tube Part OD | Matches flare size (e.g., 3/4 SAE = 19.05mm) |
| Tube Part Length | 50mm – 70mm (customizable) |
| Working Pressure | Up to 700 psi |
| Operating Temperature | -53°C to +121°C (-63°F to +250°F) |
| Thread Type | UNF (SAE) |
Flare x Solder Transition – Connects a flare joint directly to brazed copper tubing without additional adapters, simplifying installation and reducing potential leak points
Forged Brass Construction – Eliminates porosity and seepage risk found in cast fittings, ensuring a leak-proof seal under high pressure and vibration
Copper Tube Tail – High-purity copper tube provides a reliable solder joint with standard brazing practice
45° SAE Flare Seat – Precision-machined flare seat creates a reliable metal-to-metal seal that can be assembled and disassembled repeatedly without damage
Vibration Resistant – Forged structure withstands vibration in compressor lines better than machined or cast fittings
Wide Temperature Range – -53°C to +121°C, suitable for both cold-storage and high-heat HVAC applications
Connecting flare service valves to soldered refrigerant lines
Transitioning between flare-connected components and brazed copper tubing in split AC and refrigeration systems
Field repairs where a flare joint must be adapted to existing soldered piping
Propane, fuel, and natural gas lines
OEM assembly of air conditioners, heat pumps, and refrigeration units

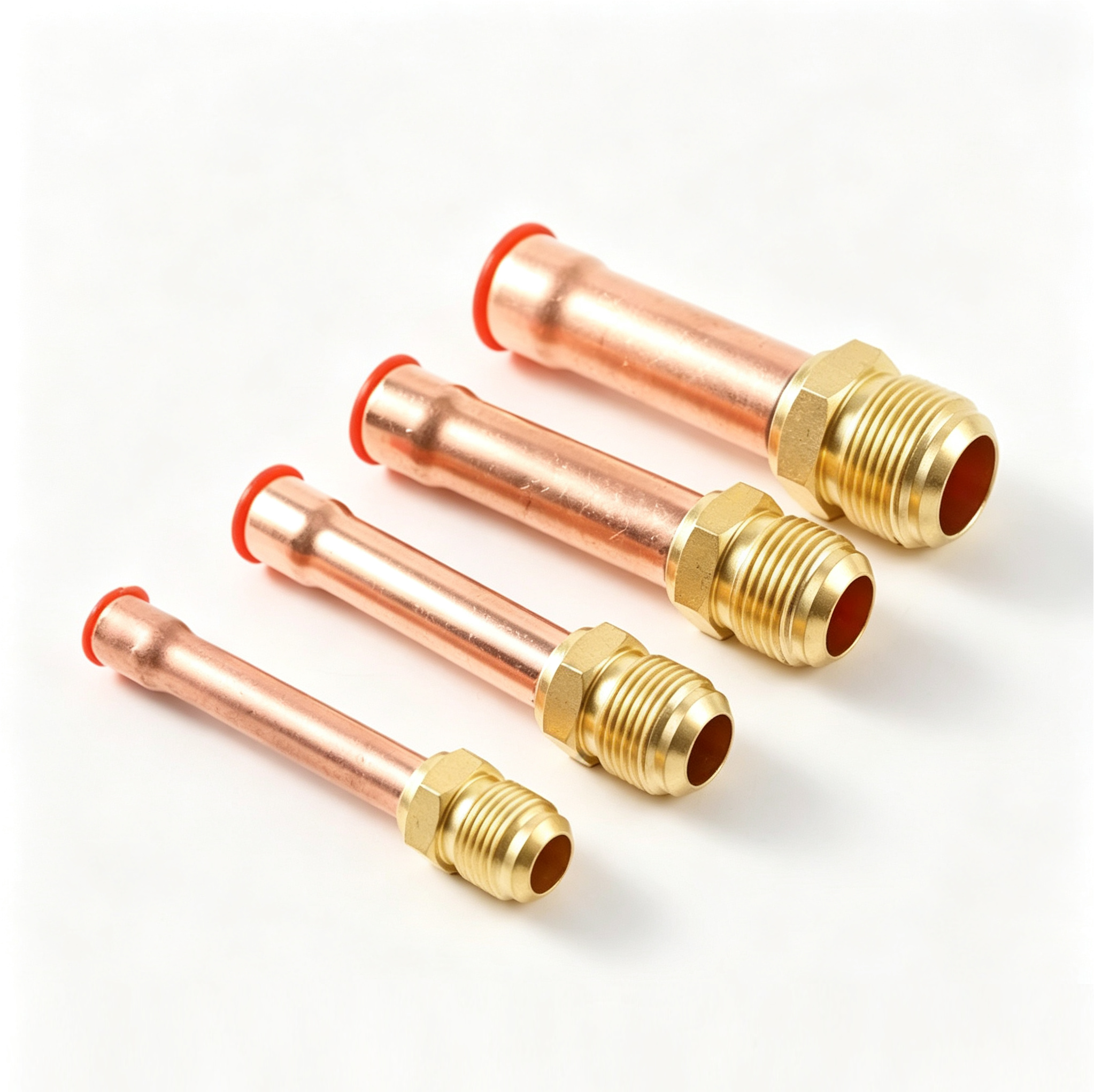

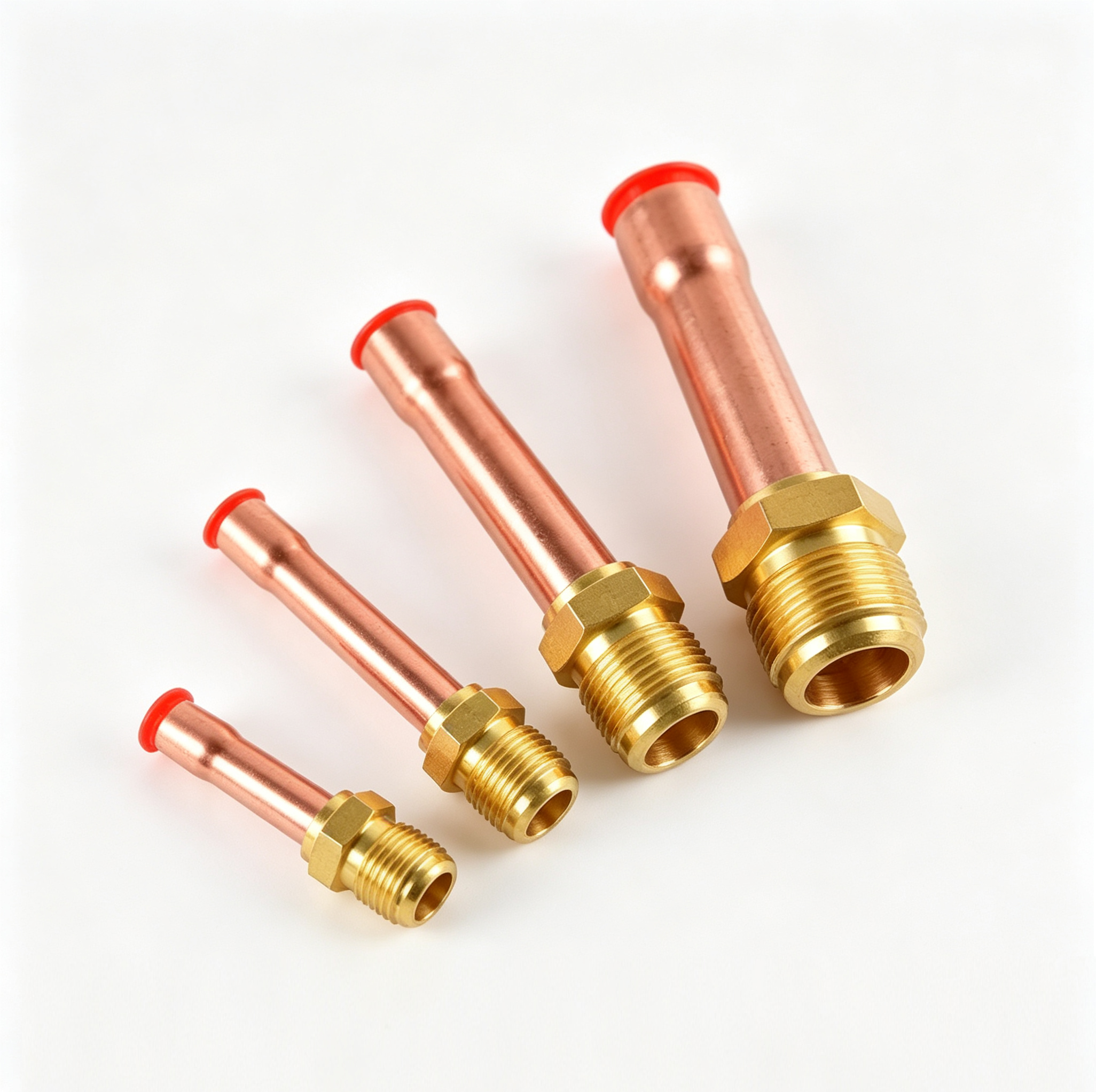

Size – 1/4″ to 3/4″, custom sizes available
Tube Length – 50mm to 70mm or per customer drawing
Material – Standard forged brass; lead-free brass on request
Surface – Natural, nickel-plated, or custom finish
OEM/ODM – Custom dimensions and thread specifications accepted
Packaging – Bulk carton, individual bag, or custom labeled packaging
Lead Time – 7–25 days for standard sizes
MOQ – Flexible, contact us for details
Samples – Available upon request
For technical datasheets, samples, or bulk pricing, contact us directly.
