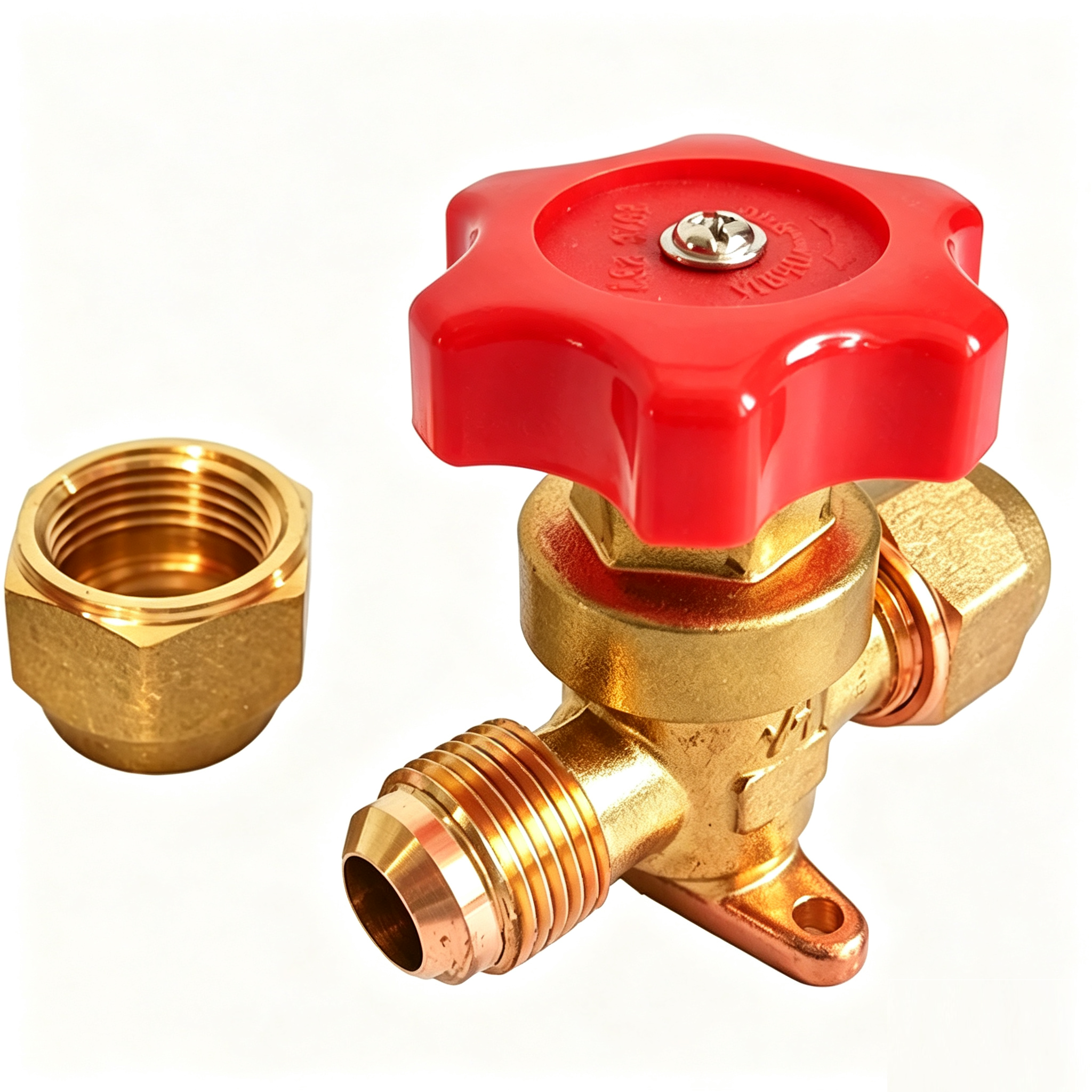

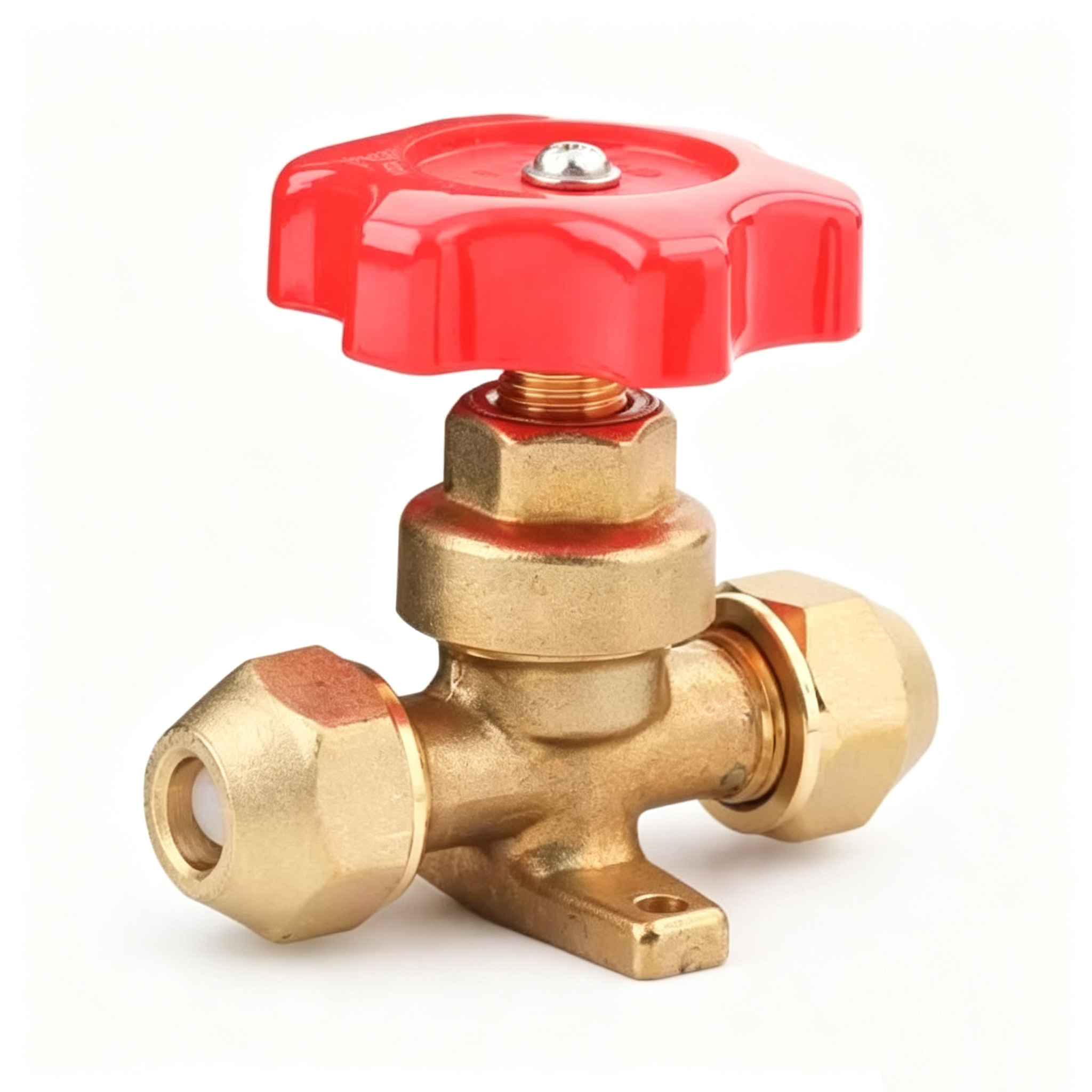

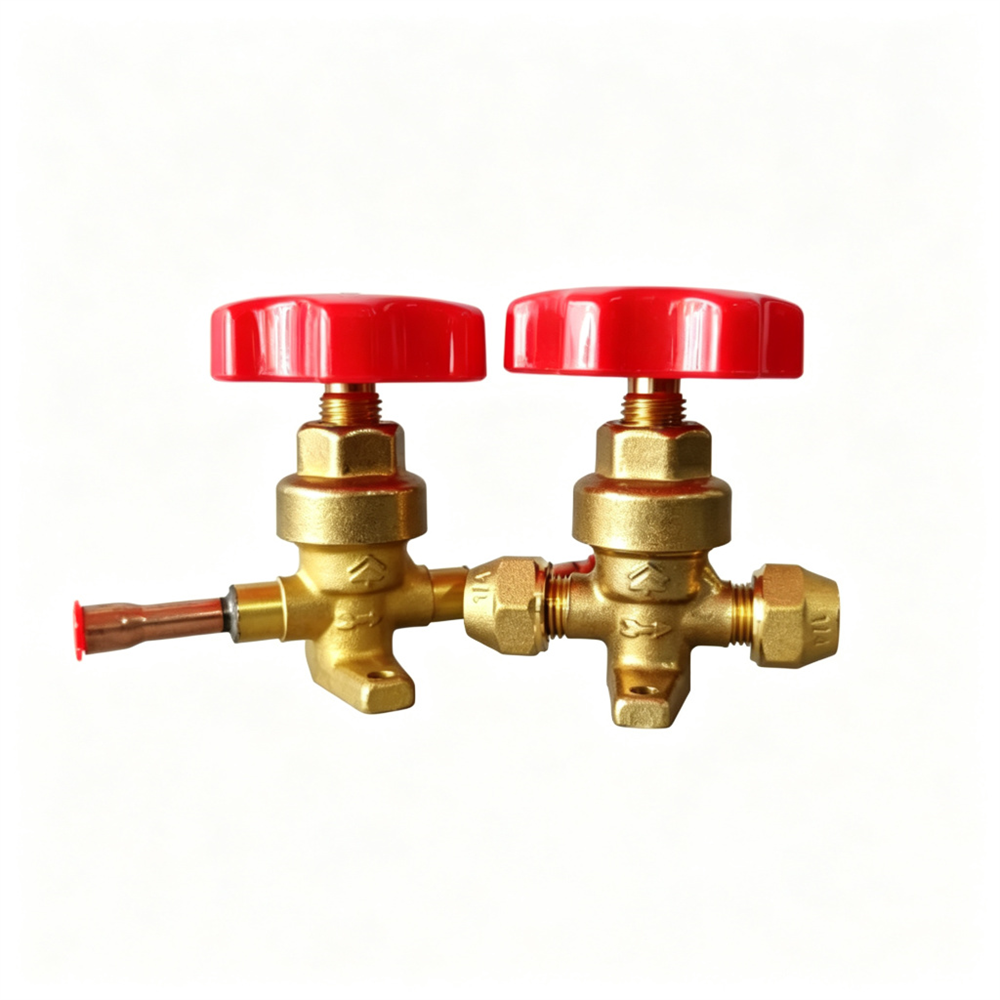

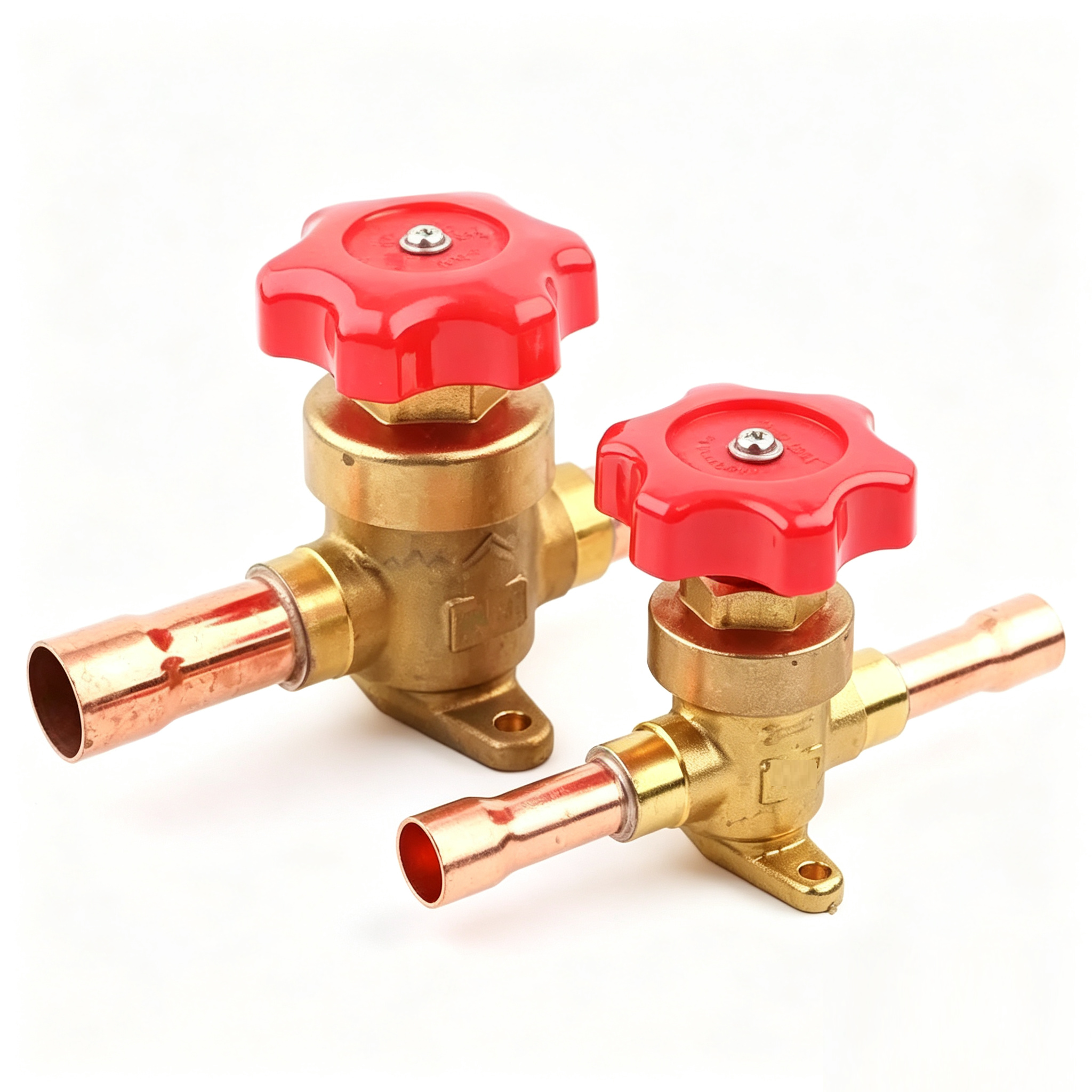

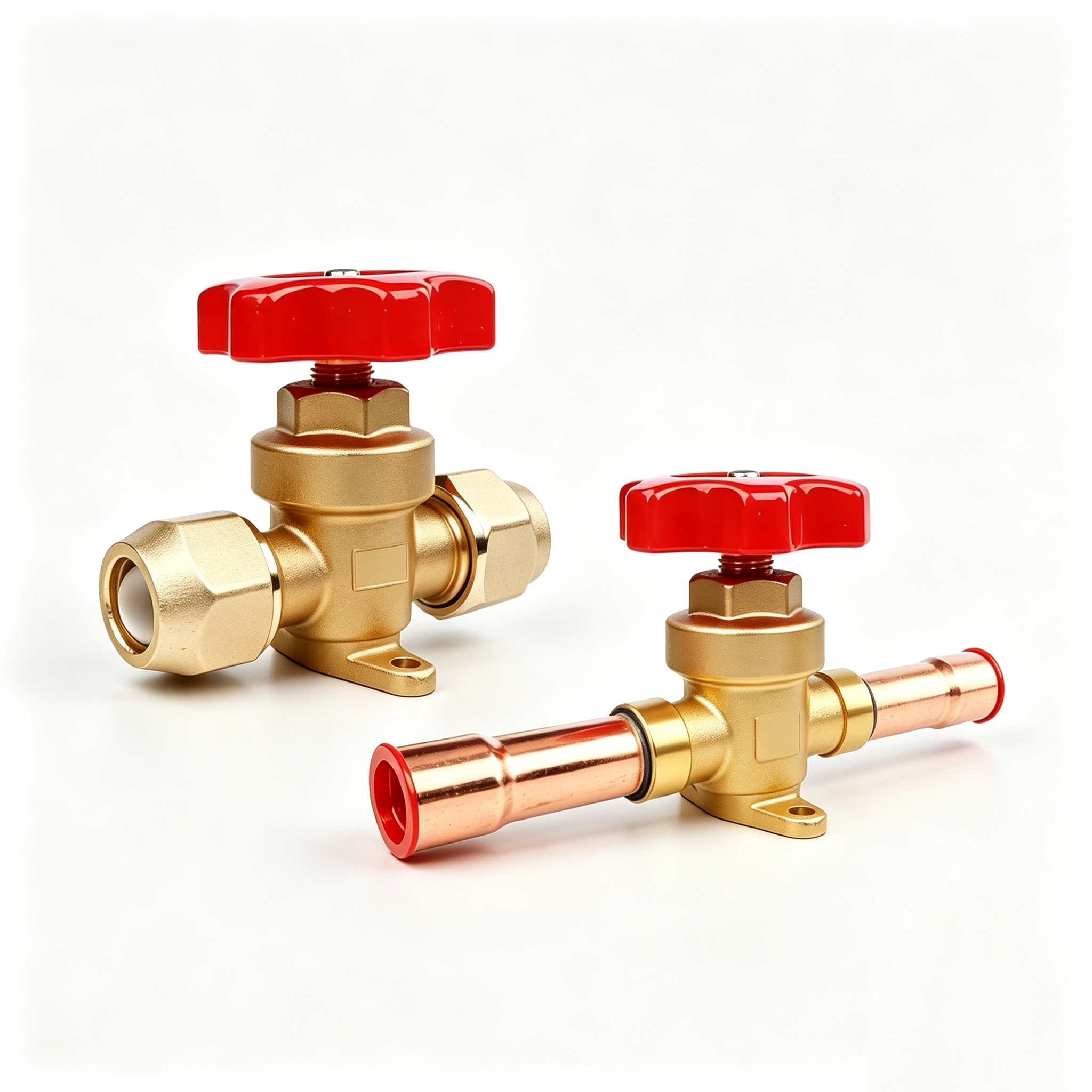

Brass Hand Valve for HVAC Refrigeration – Manual shut-off valve, forged brass construction, red ergonomic handle. ODF solder and SAE flare connections. Max working pressure 4.5MPa. Temperature range -25°C to +100°C. Compatible with R22, R134A, R410A, R502, R407C.
Our Brass Hand Valve is a manual shut-off valve designed for one-way flow control in refrigeration, air conditioning, and cold storage systems. It regulates the flow of refrigerant, oil, and air on liquid, suction, and hot gas lines. The forged brass body with modified nylon valve core ensures reliable sealing, wear resistance, and high-temperature performance.
The ergonomic red handle allows quick open/close operation — only one and a half turns to fully open or close. The sand-blasted surface provides a comfortable grip without sharp edges.
| Parameter | Details |
|---|---|
| Material | Forged Brass (Copper-Zinc Alloy) |
| Valve Core | Modified Nylon |
| Diaphragm | Stainless Steel |
| Connection | ODF Solder / SAE Flare |
| Size Range | 1/4″ – 3/4″ (6.35mm – 19.05mm) |
| Max Working Pressure | 4.5MPa |
| Temperature Range | -25°C to +100°C |
| Refrigerants | R22, R134A, R410A, R502, R407C |
| Handle | Red Plastic, Ergonomic Grip |
| Surface | Sand Blasting |
| Certification | ISO 9001 |
| Size | ODF Connection | SAE Connection |
|---|---|---|
| 1/4″ | ø6.35 | 7/16-20UNF |
| 3/8″ | ø9.52 | 5/8-18UNF |
| 1/2″ | ø12.7 | 3/4-16UNF |
| 5/8″ | ø15.88 | 7/8-14UNF |
| 3/4″ | ø19.05 | 1-1/16-14UNF |
Forged Brass Construction – High strength and hardness, corrosion resistant for long-term durability in harsh HVAC environments
Modified Nylon Valve Core – Excellent sealing, wear resistance, and high-temperature resistance
Stainless Steel Diaphragm – Prevents leakage throughout service life
Quick Open/Close – Only 1.5 turns to fully open or close, simple operation with no noise
Ergonomic Handle – Red plastic grip fits hand pattern well, easy identification in low-light conditions
Sand Blasted Surface – Exquisite appearance, no sharp edges or hand injury
Liquid, suction, and hot gas lines in refrigeration and air conditioning systems
Cold storage units and commercial refrigeration
HVAC systems requiring manual shut-off and flow control
Connection – ODF solder or SAE flare
Size – 1/4″ to 3/4″, custom sizes available
Surface – Sand blasting, nickel-plated, or custom finish
Handle Color – Red standard; custom colors available
Packaging – Carton box or custom labeled
Lead Time – 7–25 days
MOQ – Flexible; samples available
For datasheets, samples, or bulk pricing, contact us directly.
