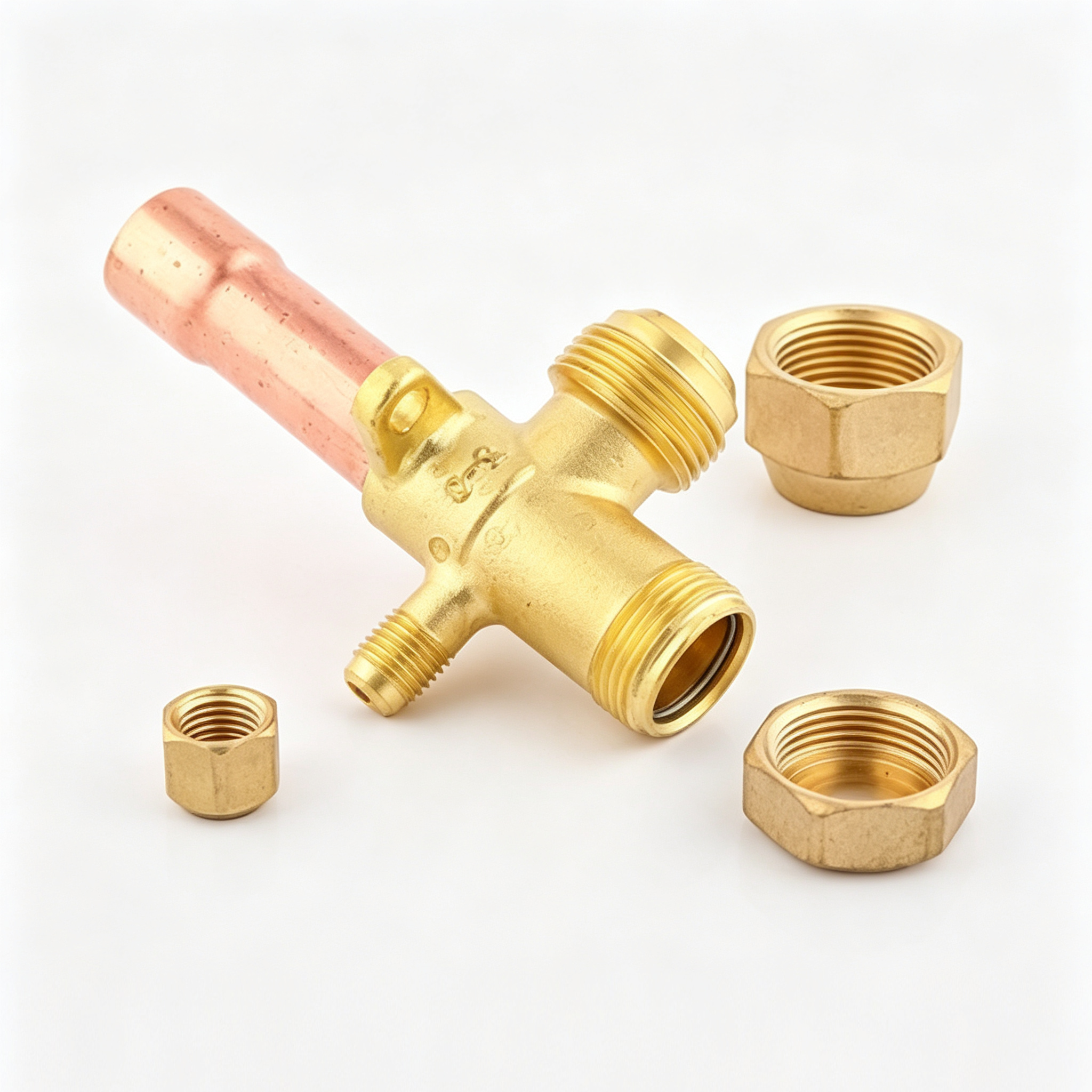

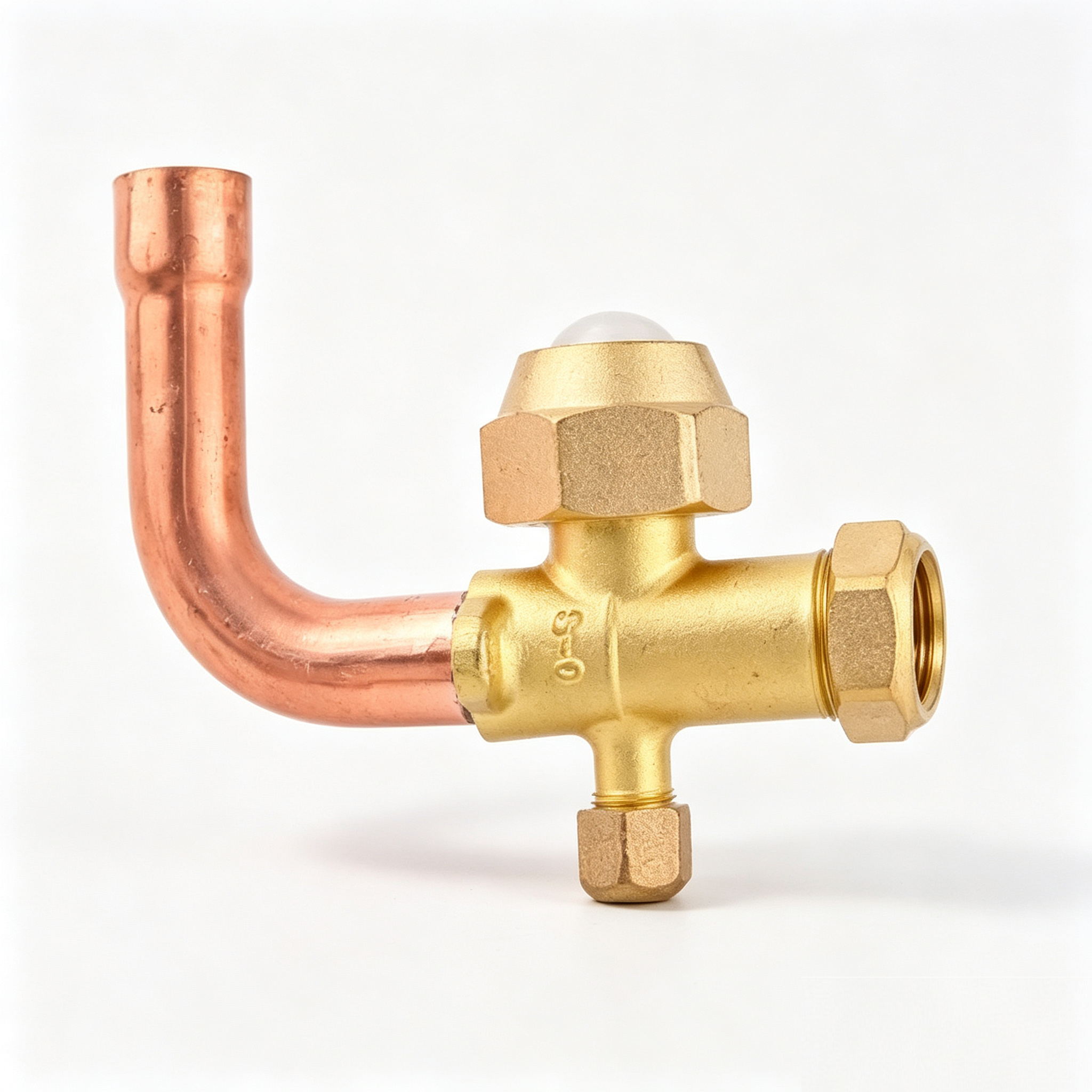

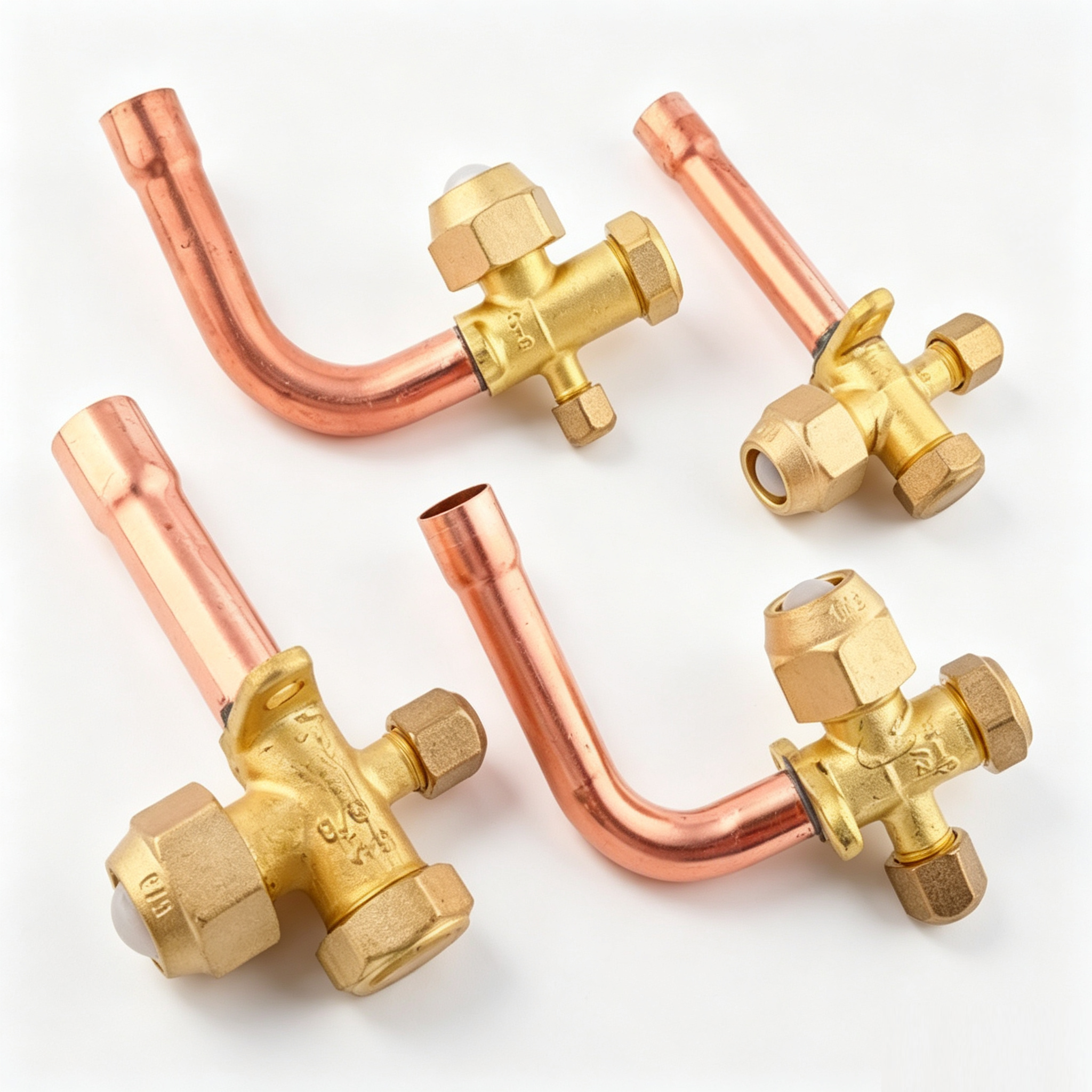

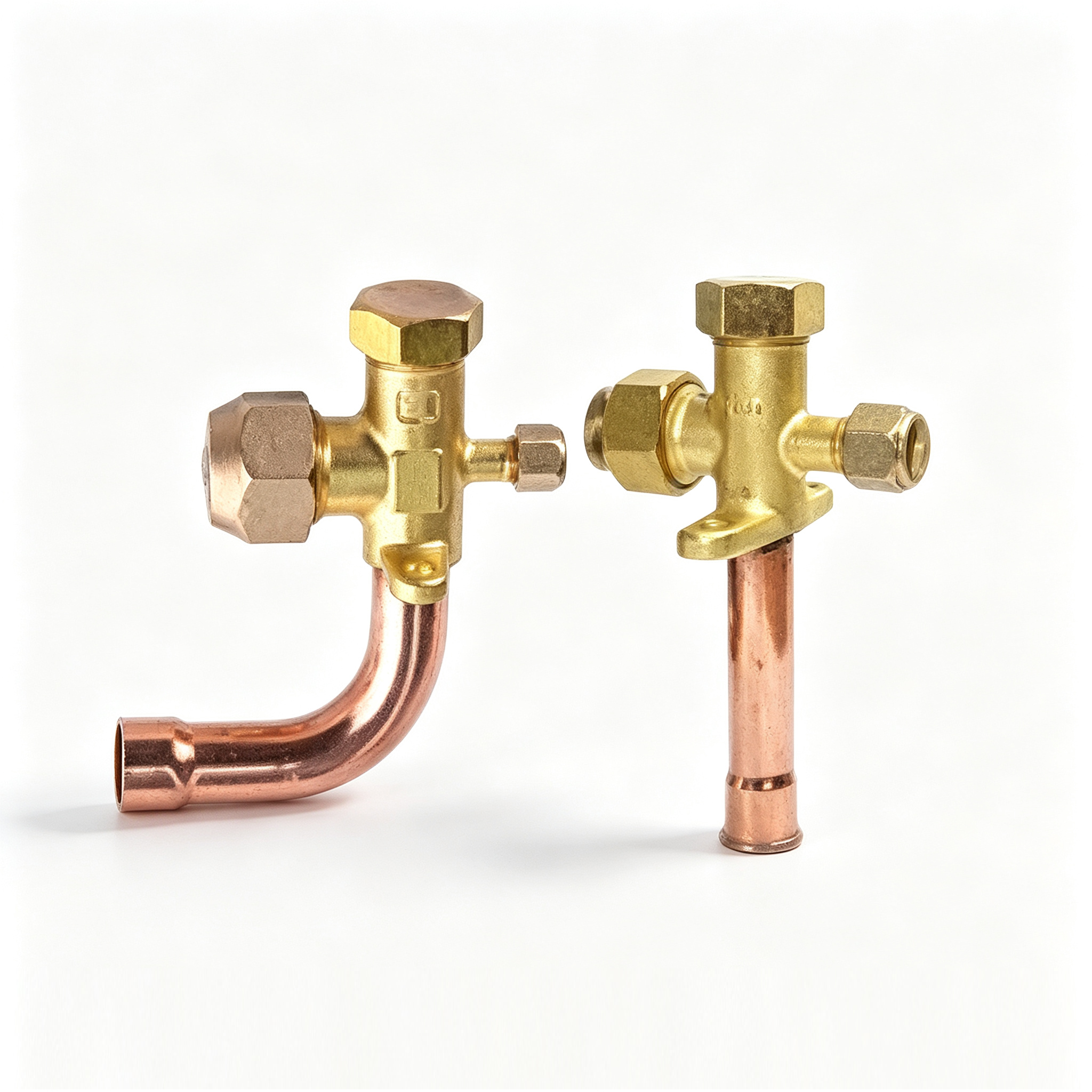

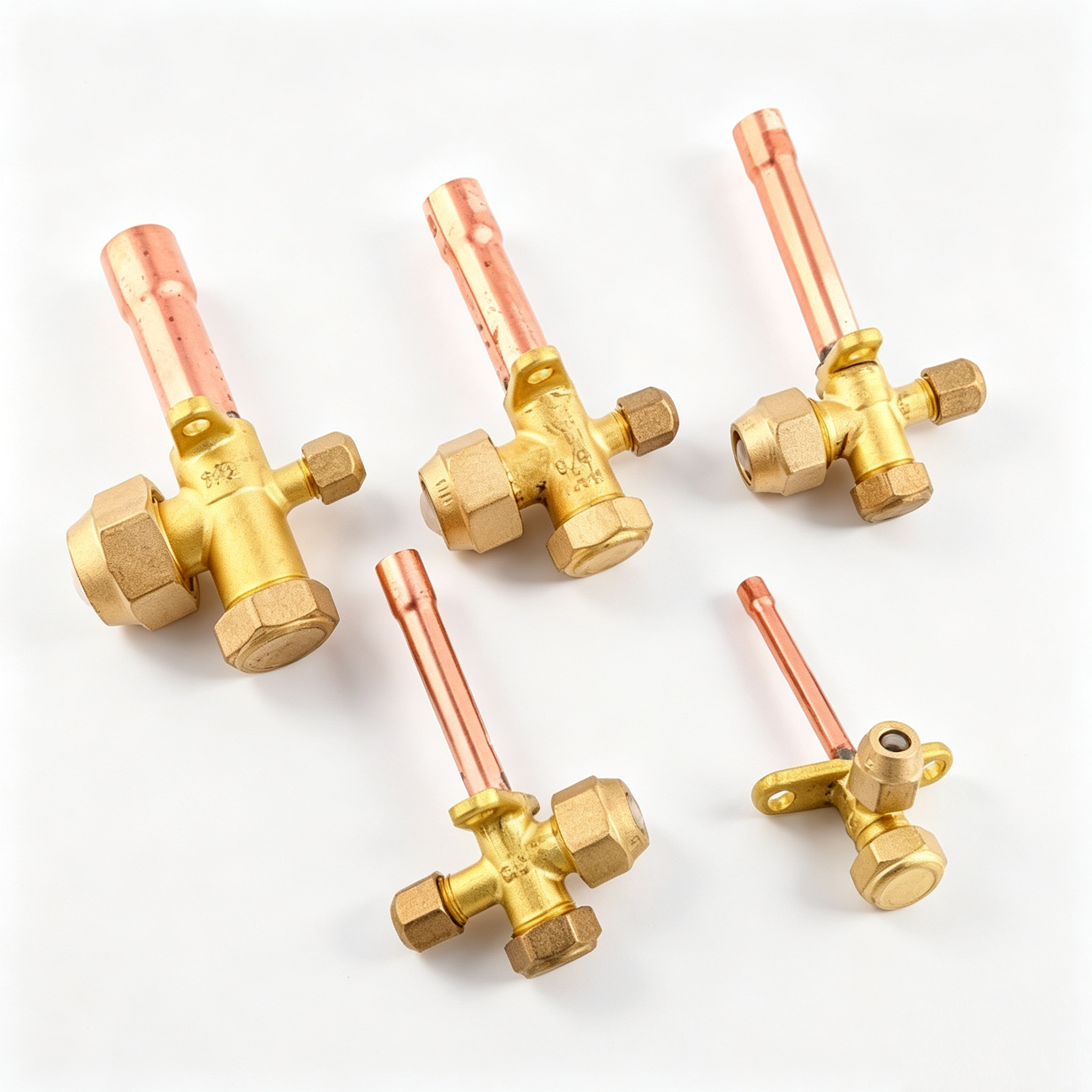

Brass service valve for split AC and refrigeration systems. Bar-stock brass body, ODF solder connections. With charge port for vacuum pumping and refrigerant charging. Max working pressure 4.2MPa (4.83MPa special square body). Temperature range -30°C to +120°C. Compatible with R22, R134a, R407C, R410A, R32.
Our Brass Service Valve is installed on the liquid and suction lines of split air conditioners to connect indoor and outdoor units. It allows technicians to close the inner passage for system isolation, and the integrated charge port enables vacuum pumping and refrigerant injection during installation and maintenance.
Constructed from bar-stock brass for high tensile strength and excellent stress corrosion resistance, it handles low pressure drops and is compatible with all common HCFC and HFC refrigerants. Available with or without charge port.
| Parameter | Details |
|---|---|
| Type | Service Valve (Bar Stock) |
| Body Material | Brass (C360 Alloy) |
| Connection | ODF Solder / SAE Flare |
| Size Range | 3/8″ – 1-1/8″ (9.5mm – 28mm) |
| Charge Port | Optional (7/16-20UNF) |
| Max Working Pressure | 4.2 MPa (4.83 MPa for special square body) |
| Medium Temperature | -30°C to +120°C |
| Ambient Temperature | -20°C to +60°C |
| Refrigerants | R22, R134a, R404A, R407C, R410A, R32 |
Charge Port Included – Integrated 7/16-20UNF port allows vacuum pumping and refrigerant charging without cutting the line
Bar-Stock Brass Body – C360 alloy for high tensile strength and excellent stress corrosion resistance
Low Pressure Drop – Straight-through flow path minimizes pressure loss and energy consumption
Wide Refrigerant Compatibility – Works with R22, R134a, R404A, R407C, R410A, and R32
High Pressure Rated – 4.2 MPa standard, 4.83 MPa for special square body version
Available With or Without Charge Port – Flexible options for different system requirements
Split air conditioner indoor/outdoor unit connections
Liquid line and suction line service access
Vacuum pumping, refrigerant charging, and system isolation during maintenance
Cold storage and commercial refrigeration systems
Connection – ODF solder or SAE flare
Size – 3/8″ to 1-1/8″, custom sizes available
Charge Port – With or without
Body Shape – Standard or square body
Packaging – Individual box or bulk carton
Lead Time – 7–25 days
MOQ – Flexible; samples available
For datasheets, samples, or bulk pricing, contact us directly.
