CBB60 cylindrical run capacitors for water pumps, washing machines & AC motors. 1–150μF, 250/450VAC, -40°C to +85°C. Self-healing, epoxy-filled. OEM & ODM. Free samples.
CBB60 cylindrical run capacitor with metallized polypropylene film and plastic case for AC motor starting and running. Capacitance 1–150μF, voltage 250/450VAC, 50/60Hz. Self-healing, low dissipation, epoxy resin filled. For water pumps, washing machines, air conditioners, compressors. OEM support.
| Parameter | Details |
|---|---|
| Product Type | CBB60 Motor Run Capacitor |
| Dielectric Material | Metallized polypropylene film |
| Case Type | Cylindrical plastic case, epoxy resin filled |
| Capacitance Range | 1μF – 150μF |
| Capacitance Tolerance | ±5% (J) / ±10% (K) |
| Rated Voltage | 250VAC / 370VAC / 450VAC / 500VAC |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | -40°C to +85°C |
| Climatic Category | 40/085/21 |
| Dissipation Factor | ≤2×10⁻⁴ (100Hz) |
| Insulation Resistance | ≥10,000MΩ·μF |
| Safety Class | S0 / S2 (IEC 60252-1) |
| Life Expectancy | Class B: 10,000h / Class C: 3,000h |
| Reference Standards | UL, CQC, IEC 60252-1, GB/T3667 |

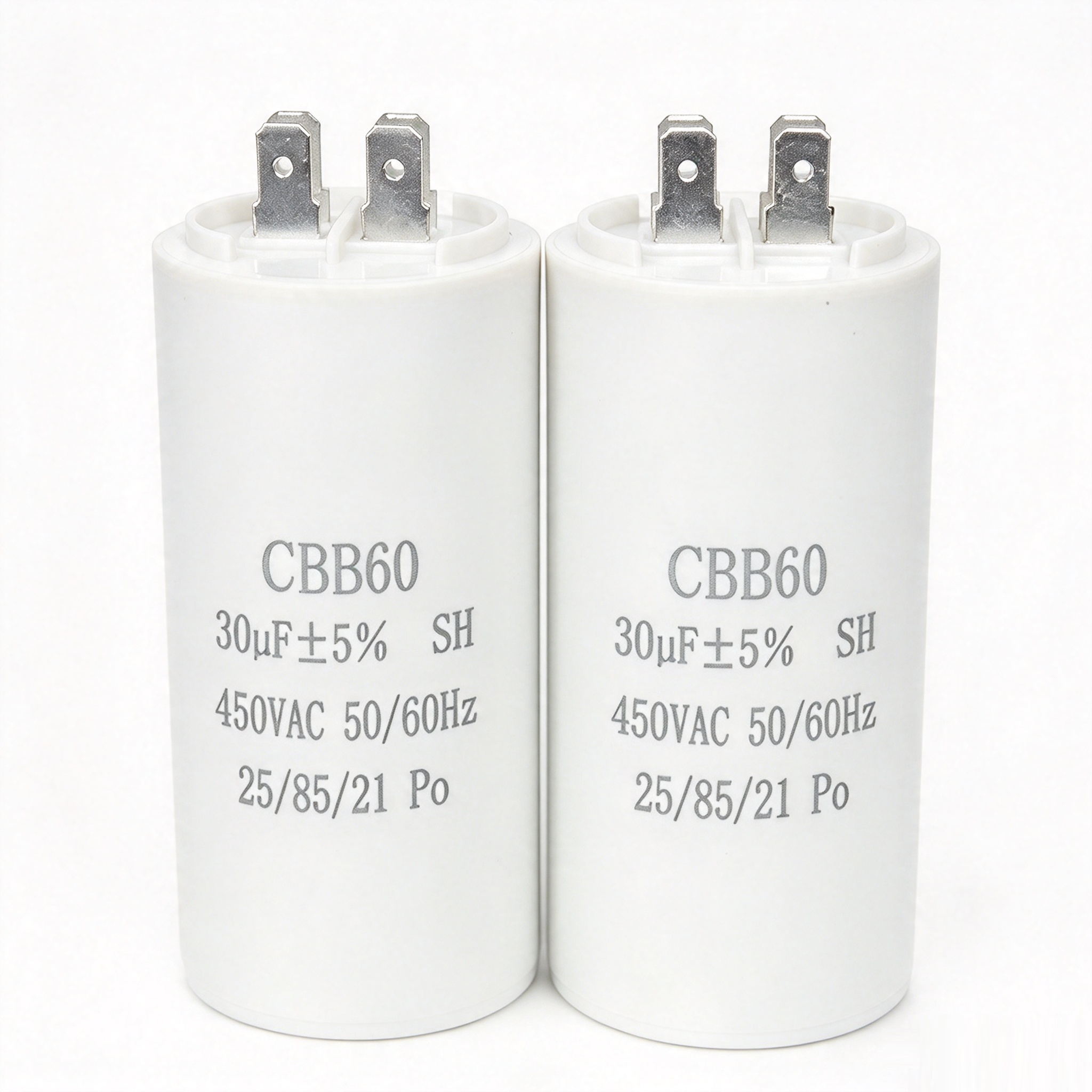

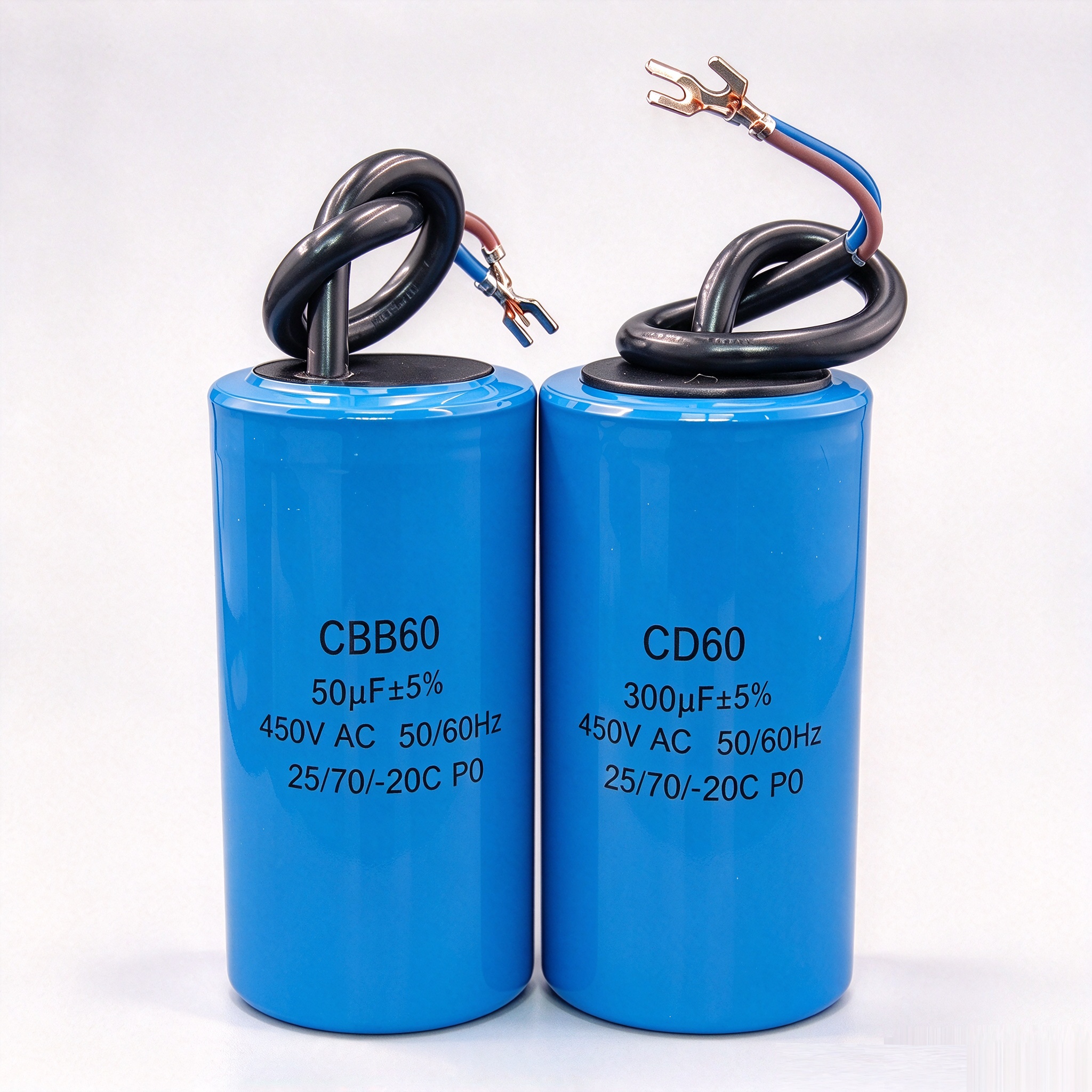

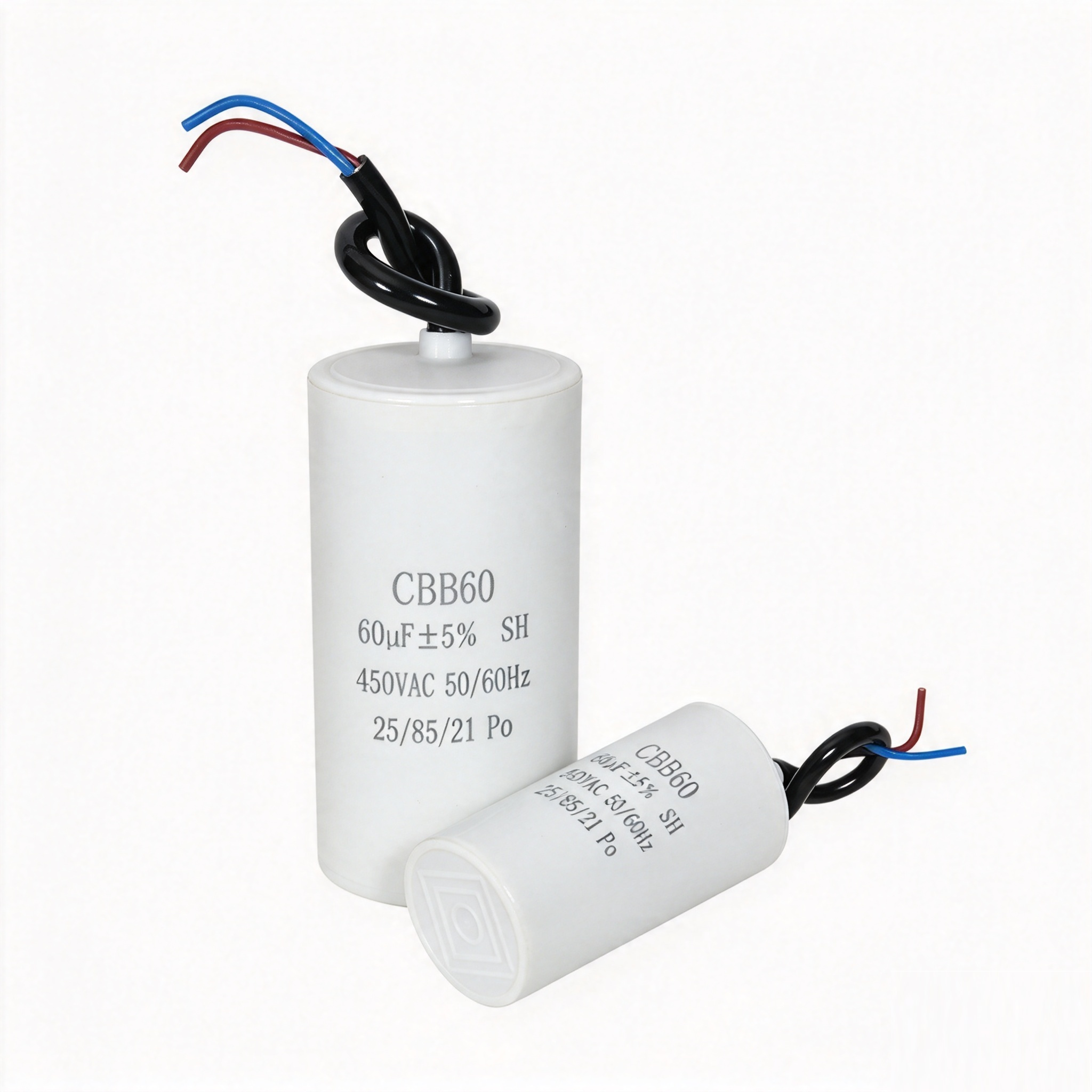

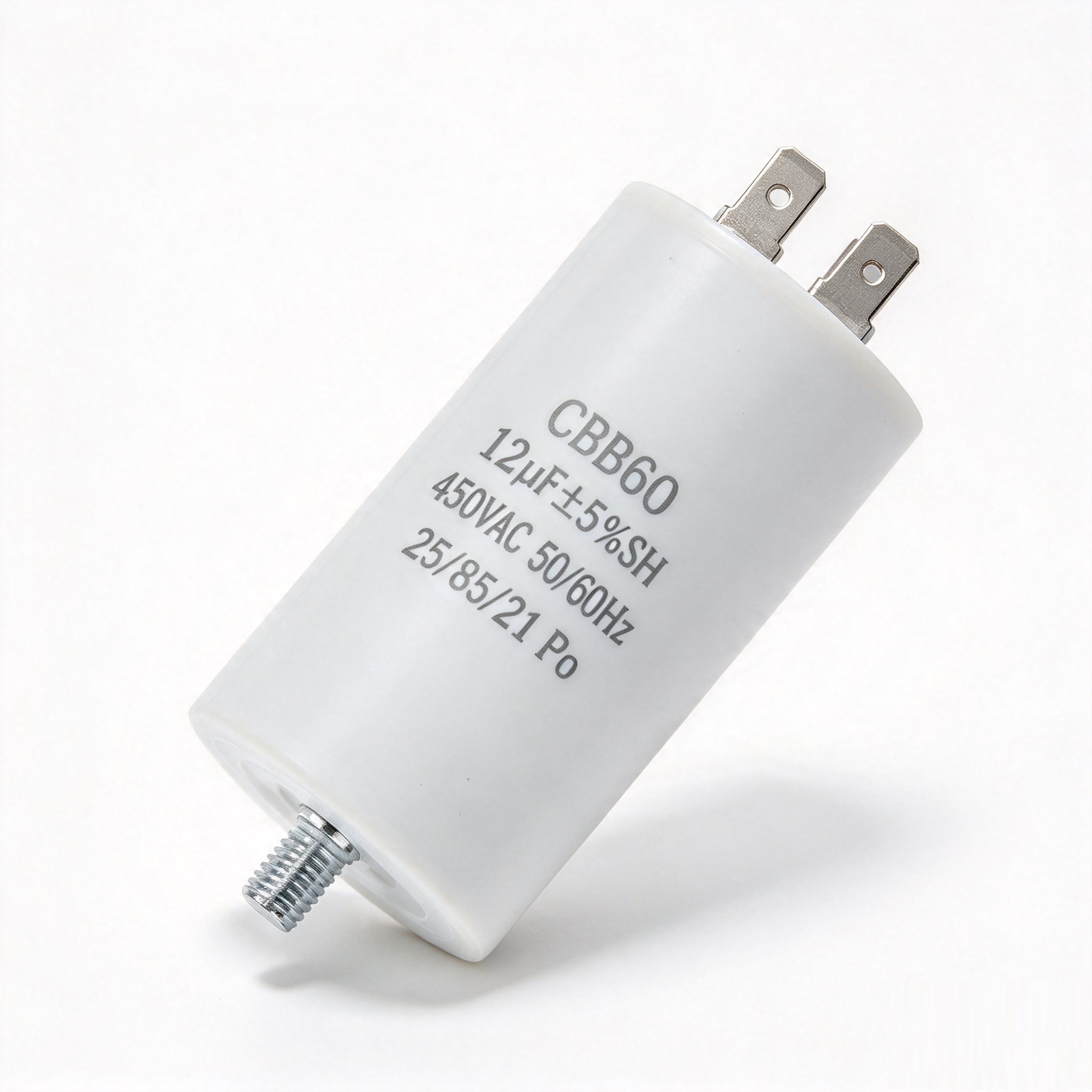

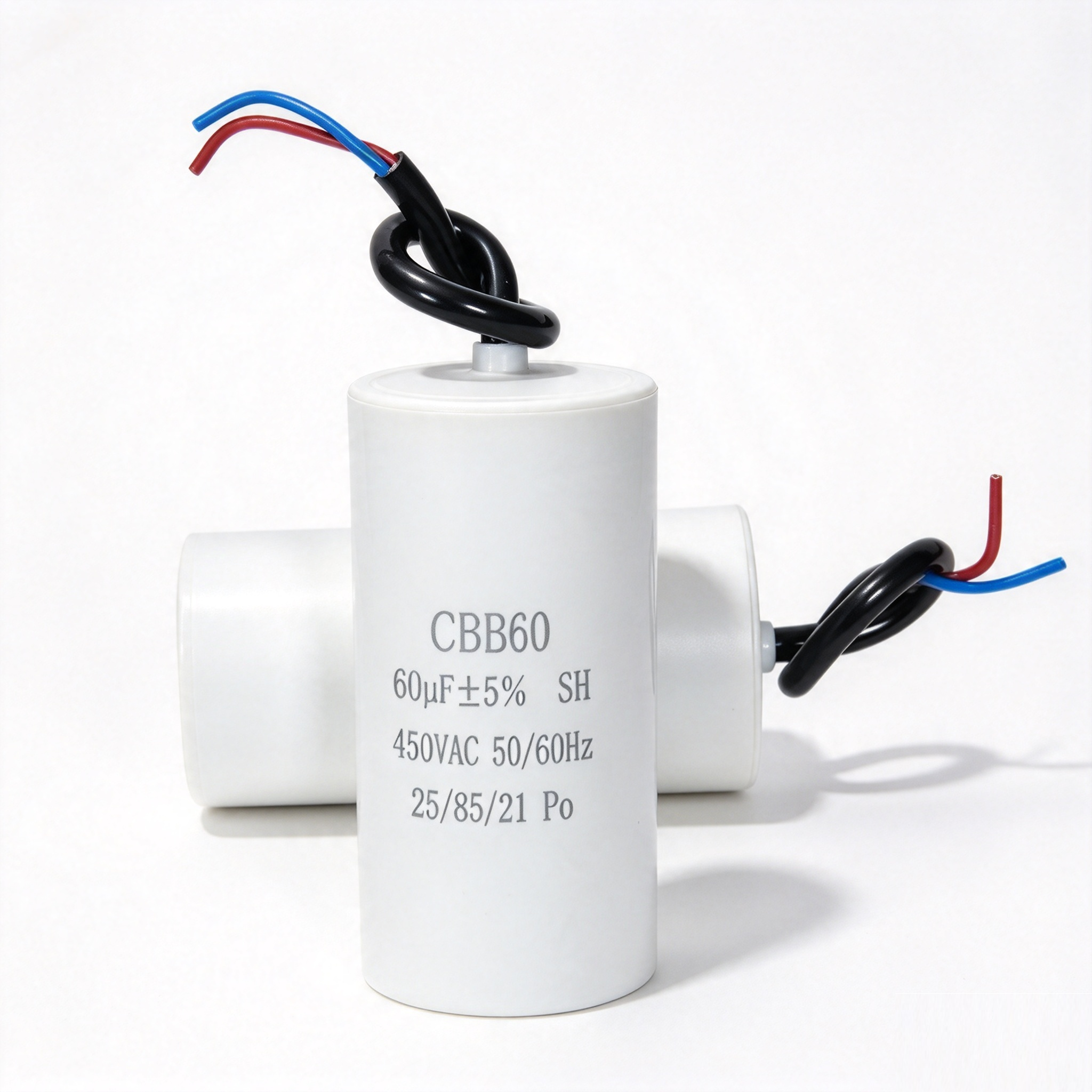

| Terminal Type | 2-pin / 4-pin quick-connect / wire leads |
| Application | Water pump, washing machine, air conditioner, compressor, motor |
Self-Healing Metallized Film – Metallized polypropylene film dielectric provides self-healing properties. When a breakdown occurs, the metallized film vaporizes around the fault, isolating it and allowing continued operation, extending capacitor service life and improving system reliability.
Epoxy Resin Filled – Cylindrical plastic case with epoxy resin filling provides excellent moisture resistance and insulation, suitable for humid environments such as water pumps and washing machines.
Stable Capacitance Over Time & Temperature – High capacitance stability across operating temperature range (-40°C to +85°C), ensuring consistent motor performance in both cold-weather and high-heat applications.
Low Dissipation Factor – Dissipation factor ≤2×10⁻⁴ at 100Hz. Low internal power losses reduce heat generation and improve energy efficiency of AC motors.
Wide Capacitance & Voltage Range – Available from 1μF to 150μF and 250VAC to 500VAC, covering a full range of single-phase AC motor run applications for pumps, washing machines, compressors, and refrigeration equipment.
Lightweight & Cost-Effective – Plastic cylindrical case is lighter and more cost-effective than aluminum case capacitors, suitable for high-volume OEM applications.
Stable Bulk Supply – Standard models ship in 15–25 days, supporting rolling replenishment and reducing inventory capital occupation.
OEM & ODM Support – Custom logo, capacitance value, voltage rating, terminal type, and packaging available. Can produce according to customer specifications.
Batch Traceability – Strictly quality inspection with every shipment; SGS/BV third-party inspection supported.
Export Packaging – Seaworthy carton and pallet packaging, suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (capacitance, voltage, application) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
