CBB61 square run capacitors for fan motors, air conditioners & ventilation. 0.5–20μF, 250/450VAC, -40°C to +85°C. Self-healing, flame-retardant case. OEM & ODM support. Free samples.

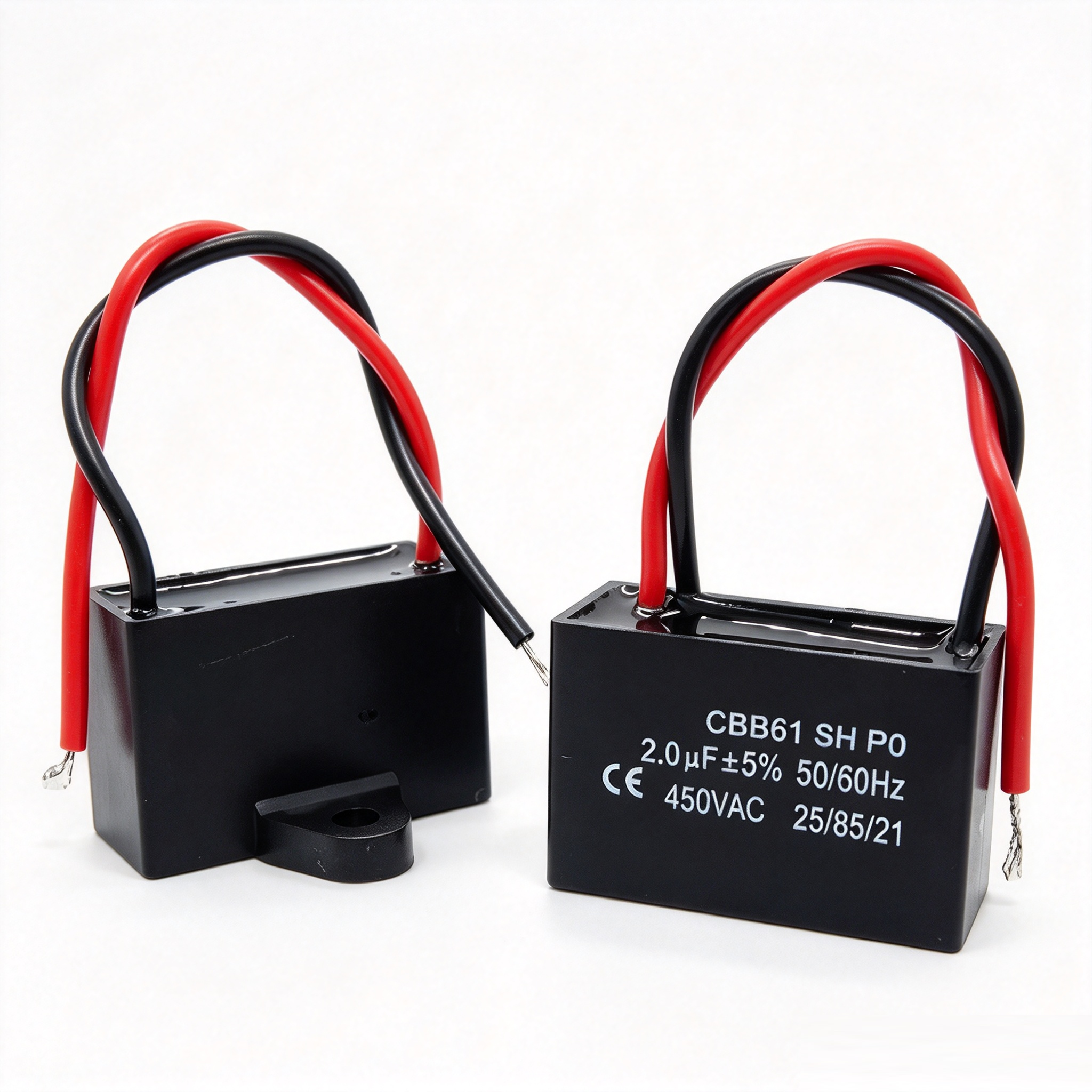

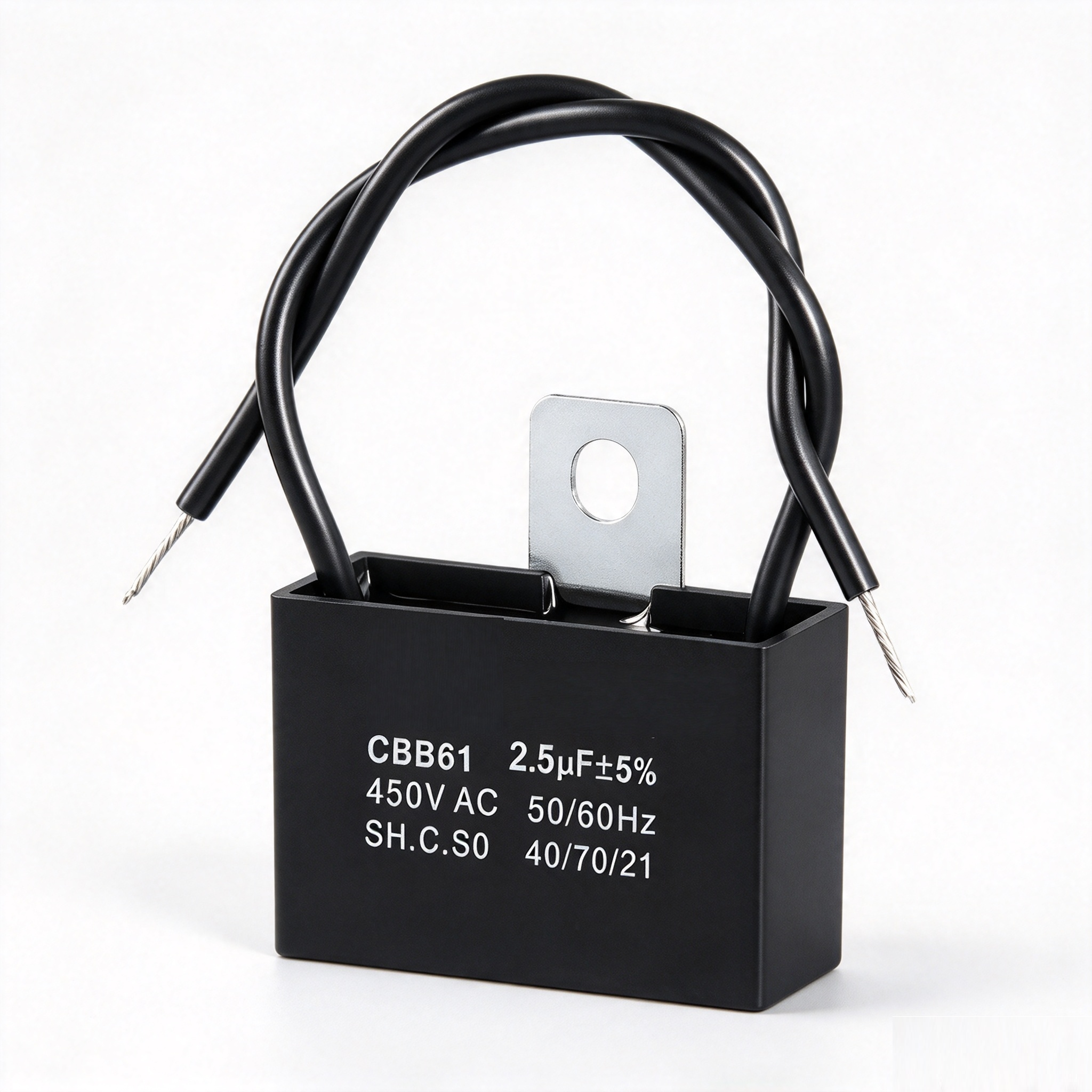

CBB61 square run capacitor with metallized polypropylene film and flame-retardant plastic case for AC fan motors and small single-phase motors. Capacitance 0.5–20μF, voltage 250/450VAC, 50/60Hz. Self-healing, low dissipation. For fans, air conditioners, ventilation, small pumps. OEM support.
| Parameter | Details |
|---|---|
| Product Type | CBB61 Motor Run Capacitor |
| Dielectric Material | Metallized polypropylene film |
| Case Type | Square plastic case, flame-retardant, epoxy filled |
| Capacitance Range | 0.5μF – 20μF |
| Capacitance Tolerance | ±5% (J) / ±10% (K) |
| Rated Voltage | 250VAC / 370VAC / 450VAC / 500VAC |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | -40°C to +85°C |
| Climatic Category | 40/085/21 |
| Dissipation Factor | ≤2×10⁻⁴ (100Hz) |
| Insulation Resistance | ≥10,000MΩ·μF |
| Safety Class | S0 / S2 (IEC 60252-1) |
| Life Expectancy | Class B: 10,000h / Class C: 3,000h |
| Reference Standards | CQC, UL, IEC 60252-1, GB/T3667 |
| Terminal Type | 2-pin / 4-pin quick-connect / wire leads |
| Application | Fan motor, air conditioner fan, ventilation, small pump |
Self-Healing Metallized Film – Metallized polypropylene film dielectric provides self-healing properties. When a breakdown occurs, the metallized film vaporizes around the fault, isolating it and allowing continued operation, extending capacitor service life and improving system reliability.
Flame-Retardant Square Plastic Case – Square plastic case with flame-retardant material and epoxy filling provides excellent moisture resistance, insulation, and safety. Compact size fits tight spaces in fan motors and small appliances.
Stable Capacitance Over Time & Temperature – High capacitance stability across operating temperature range (-40°C to +85°C), ensuring consistent motor performance in both cold-weather and high-heat applications.
Low Dissipation Factor – Dissipation factor ≤2×10⁻⁴ at 100Hz. Low internal power losses reduce heat generation and improve energy efficiency of AC motors.
Wide Capacitance & Voltage Range – Available from 0.5μF to 20μF and 250VAC to 500VAC, covering fan motors, ventilation fans, air conditioner fan motors, and small single-phase pumps.
Compact & Lightweight – Square plastic case is smaller and lighter than cylindrical or aluminum case capacitors, ideal for space-constrained fan motor and appliance designs.
Stable Bulk Supply – Standard models ship in 15–25 days, supporting rolling replenishment and reducing inventory capital occupation.
OEM & ODM Support – Custom logo, capacitance value, voltage rating, terminal type, and packaging available. Can produce according to customer specifications.
Batch Traceability – Strictly quality inspection with every shipment; SGS/BV third-party inspection supported.
Export Packaging – Seaworthy carton and pallet packaging, suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (capacitance, voltage, application) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
