CD60 motor start capacitors for AC compressors, pumps & HVAC. 21–1280μF, 110–330VAC, -25°C to +65°C. Bakelite & aluminum case. OEM & ODM support. Free samples.

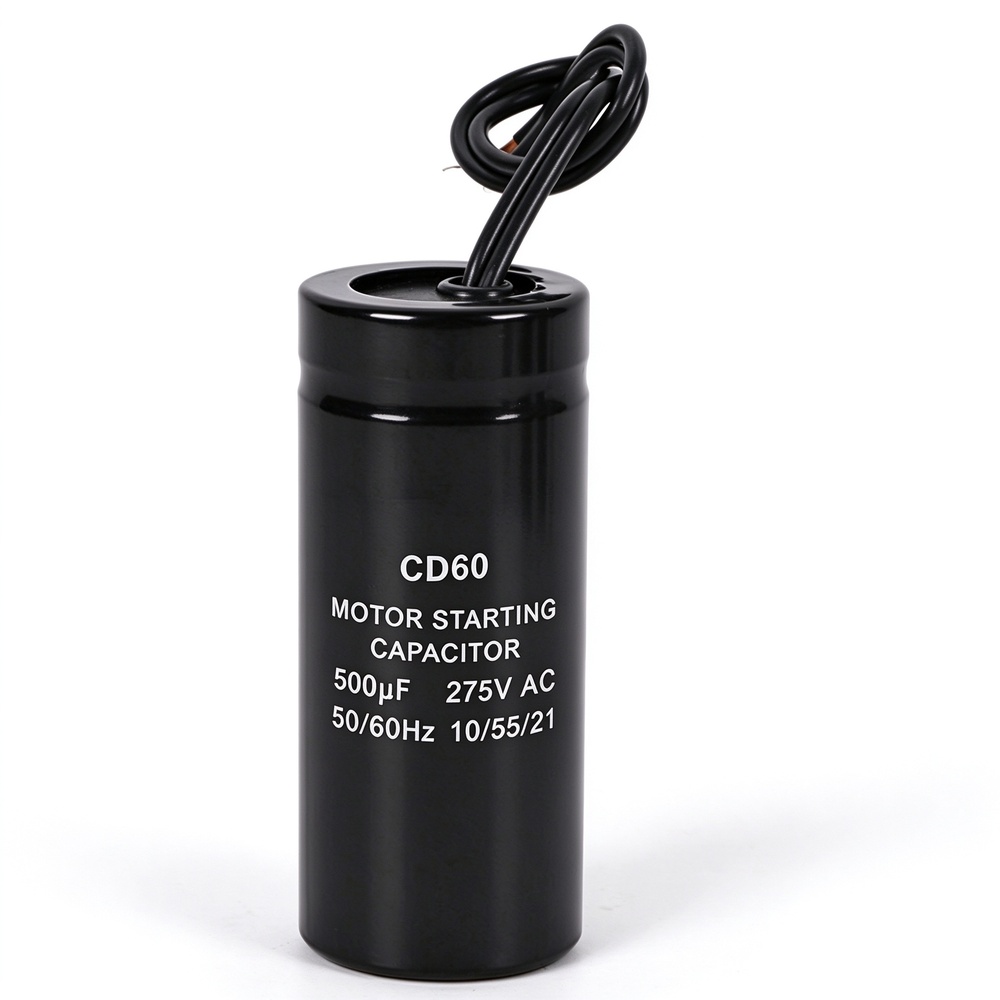

CD60 motor start capacitor with aluminum electrolytic construction for single-phase AC motor starting. Capacitance 21–1280μF, voltage 110–330VAC, 50/60Hz. Bakelite or aluminum case. Provides high starting torque for compressors, pumps and HVAC motors. OEM support.
| Parameter | Details |
|---|---|
| Product Type | CD60 Motor Start Capacitor |
| Dielectric Material | High-purity aluminum foil, electrolytic |
| Case Type | Bakelite (phenolic) case / Aluminum case with PVC sleeve |
| Capacitance Range | 21μF – 1280μF |
| Capacitance Tolerance | +30% / 0 Umax; ±10%, ±15%, ±20% customizable |
| Rated Voltage | 110VAC / 125VAC / 165VAC / 220VAC / 250VAC / 330VAC |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | -25°C to +65°C (some models up to +85°C) |
| Dissipation Factor | tgδ ≤ 0.10 (20°C, 100Hz) / tgδ ≤ 0.15 (max) |
| Withstand Voltage (Terminal-Terminal) | 1.2× rated voltage, 2 seconds, no breakdown |
| Withstand Voltage (Terminal-Case) | 2000VAC, 10 seconds, no breakdown |
| Endurance | ≥160V: 30,000 start cycles; <160V: 75,000 start cycles |
| Reference Standards | ANSI/EIA-463, UL810, IEC 60252-2, GB/T3667.2 |

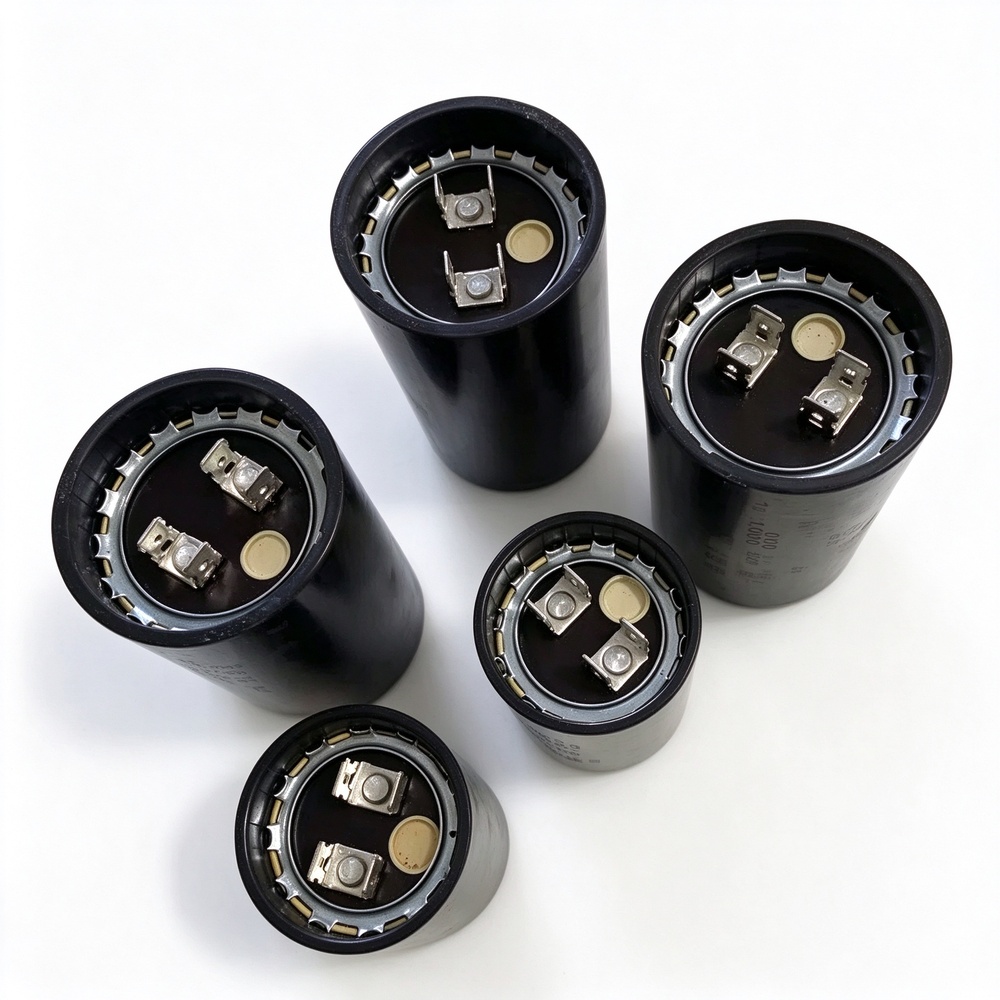

| Terminal Type | 1/4″ quick disconnect / screw terminals / wire leads |
| Application | Compressor, pump, HVAC, refrigerator, washing machine |
High Starting Torque – CD60 start capacitors are designed to provide the necessary starting torque for single-phase AC motors. They create a phase shift to increase starting torque, enabling compressors, pumps, and HVAC motors to start reliably even under high load conditions.
Short-Term Duty Design – Unlike run capacitors, CD60 start capacitors are designed for short-term operation during motor startup. They deliver high capacitance in a compact package, providing the burst of energy needed to overcome initial inertia.
Bakelite & Aluminum Case Options – Bakelite (phenolic) case offers excellent insulation resistance and mechanical strength, suitable for 1HP and below air conditioners and refrigerators. Aluminum case with PVC sleeve provides superior heat dissipation for higher power applications.
Wide Capacitance & Voltage Range – Available from 21μF to 1280μF and 110VAC to 330VAC, covering a full range of single-phase AC motor starting applications.
Non-Polarized Design – CD60 capacitors are non-polarized, meaning they can be connected without regard to polarity. This simplifies installation and reduces wiring errors.
Long Endurance Life – Rated for 30,000 start cycles at ≥160V and 75,000 start cycles at <160V, ensuring reliable long-term performance in demanding HVAC and refrigeration applications.
Stable Bulk Supply – Standard models ship in 15–25 days, supporting rolling replenishment and reducing inventory capital occupation.
OEM & ODM Support – Custom logo, capacitance value, voltage rating, terminal type, and packaging available. Can produce according to customer specifications.
Batch Traceability – Strictly quality inspection with every shipment; SGS/BV third-party inspection supported.
Export Packaging – Seaworthy carton and pallet packaging, suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (capacitance, voltage, application) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
