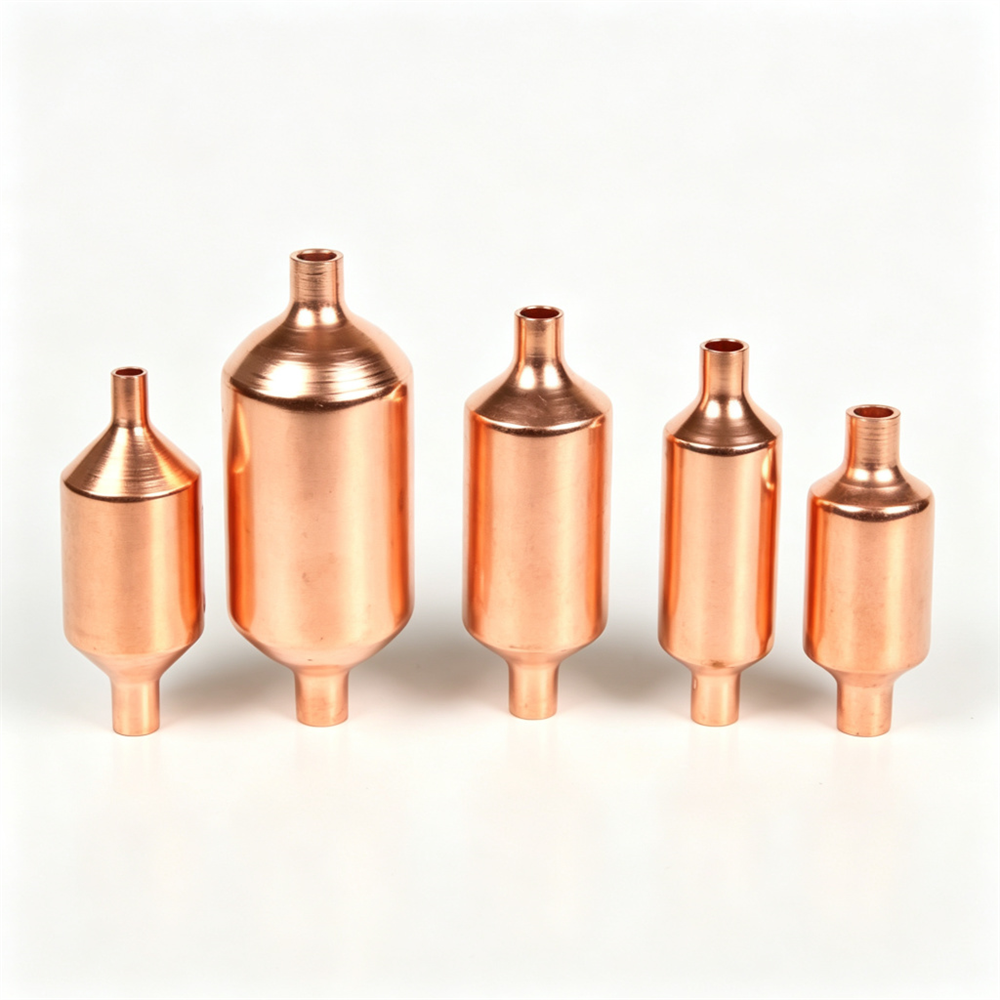

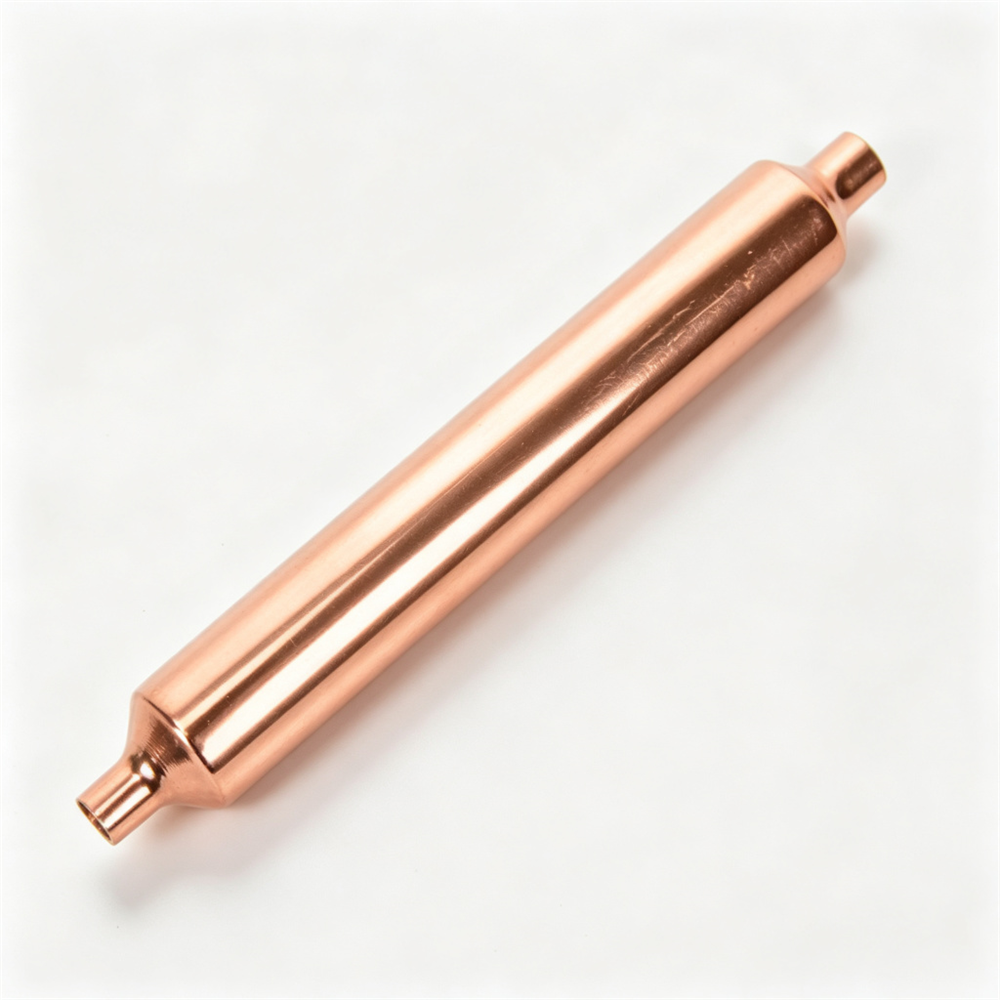

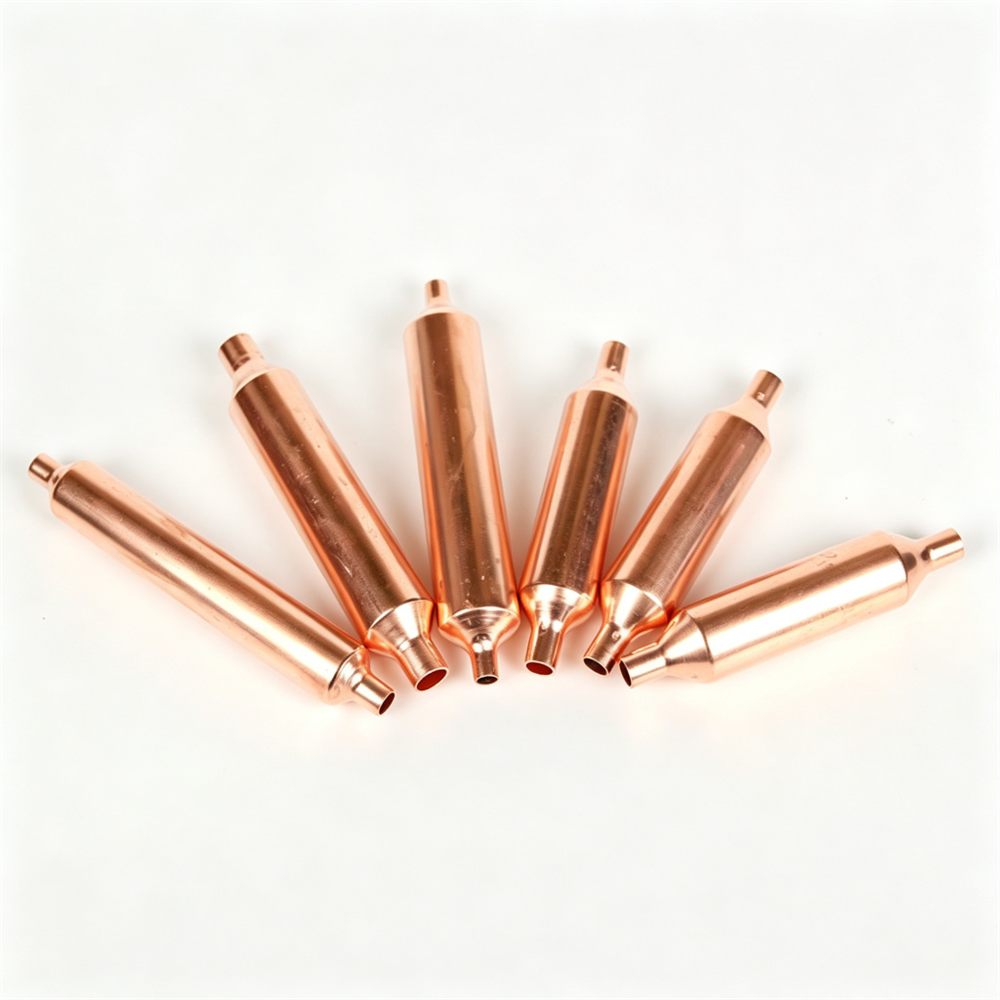

4.6MPa Copper Accumulator – R410A/R22 Refrigeration Liquid Trap,Prevents liquid refrigerant from reaching the compressor. ODF solder connections. Compatible with R410A, R22, R134a. Max working pressure 4.6MPa. U-tube design for maximum flow and oil return.
Our Copper Accumulator (Suction Line Accumulator) is installed between the evaporator and compressor to prevent liquid refrigerant from entering the compressor, avoiding costly liquid slugging and compressor damage. It acts as a temporary reservoir — liquid refrigerant and oil collect at the bottom and evaporate gradually before returning to the compressor as vapor.
The inner U-tube design ensures maximum refrigerant flow with minimum oil entrapment, while the copper shell provides excellent corrosion resistance and durability.
| Parameter | Details |
|---|---|
| Type | Suction Line Accumulator |
| Shell Material | Copper (TP2) |
| Inner Tube | U-Tube Design |
| Connection | ODF Solder |
| Size Range | 1/2″ – 1-3/8″ (12.7mm – 35mm) |
| Max Working Pressure | 4.6 MPa (46 bar) |
| Medium Temperature | -50°C to +140°C |
| Refrigerants | R410A, R22, R134a, R404A, R407C, R507 |
| Certification | ISO 9001 |
Prevents Liquid Slugging – Captures liquid refrigerant before it reaches the compressor, protecting against costly liquid slugging damage
U-Tube Design – Ensures maximum refrigerant flow with minimum oil entrapment, maintaining proper oil return to the compressor
Copper Construction – Excellent corrosion resistance and compatibility with all common refrigerants
High Pressure Rated – 4.6 MPa working pressure covers R410A and other high-pressure systems
Wide Temperature Range – -50°C to +140°C, suitable for cold storage and high-heat applications
Suction line protection in heat pumps, split AC, and commercial refrigeration
Systems prone to liquid flood-back during defrost cycles or low-load operation
Size – 1/2″ to 1-3/8″ ODF, custom sizes available
Packaging – Individual box or bulk carton
Lead Time – 7–25 days
MOQ – Flexible; samples available
For datasheets, samples, or bulk pricing, contact us directly.
