HVAC Copper Cross – 4-Way Equal & Reducing for Refrigeration,C12200 wrot copper, ASME B16.22 compliant. C x C x C x C sweat-end design for 4-way connections. Sizes 1/4″ to 2-5/8″ OD. Equal and reducing configurations. Max pressure 700 psi. Leak-proof, corrosion resistant.

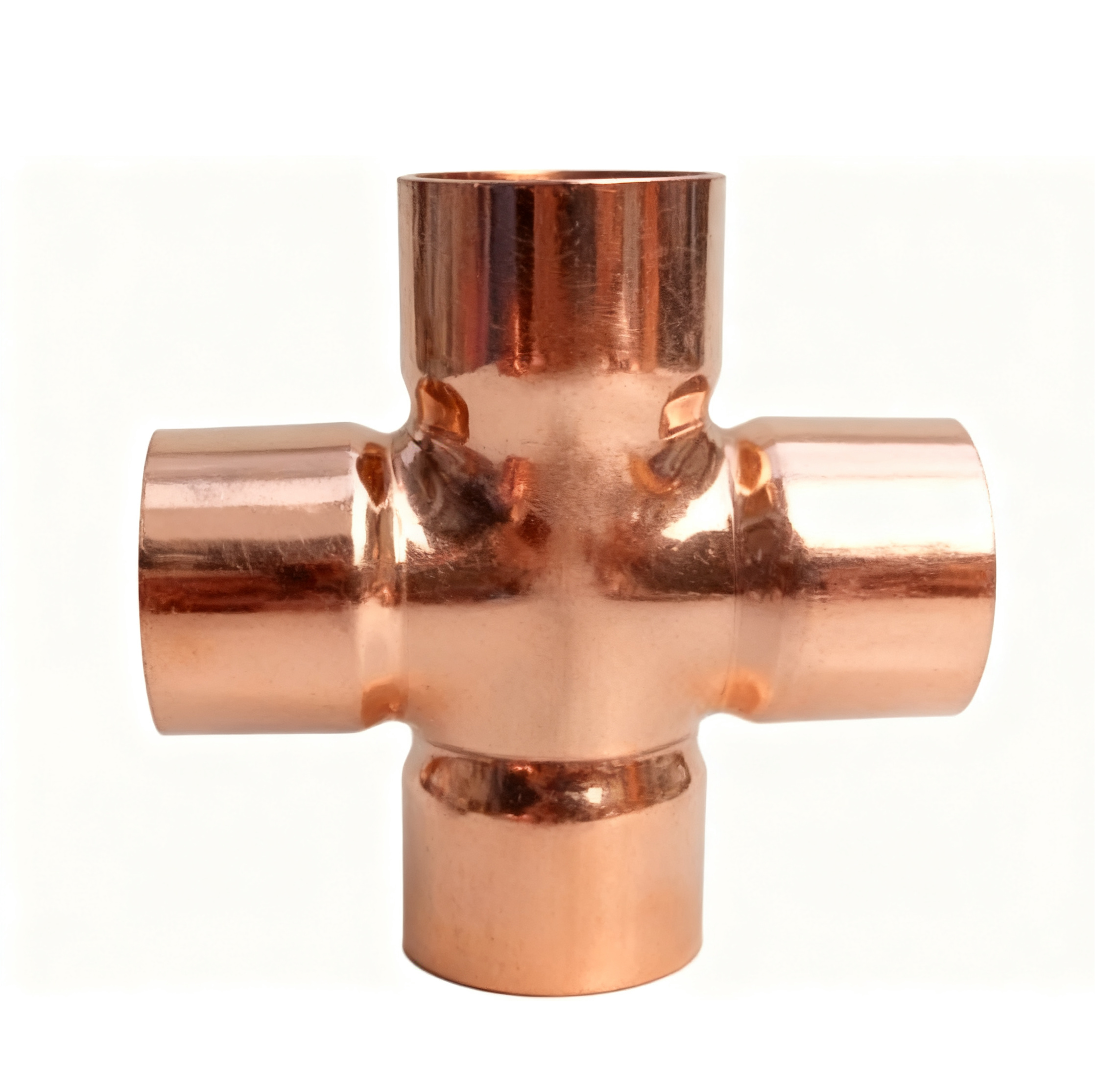

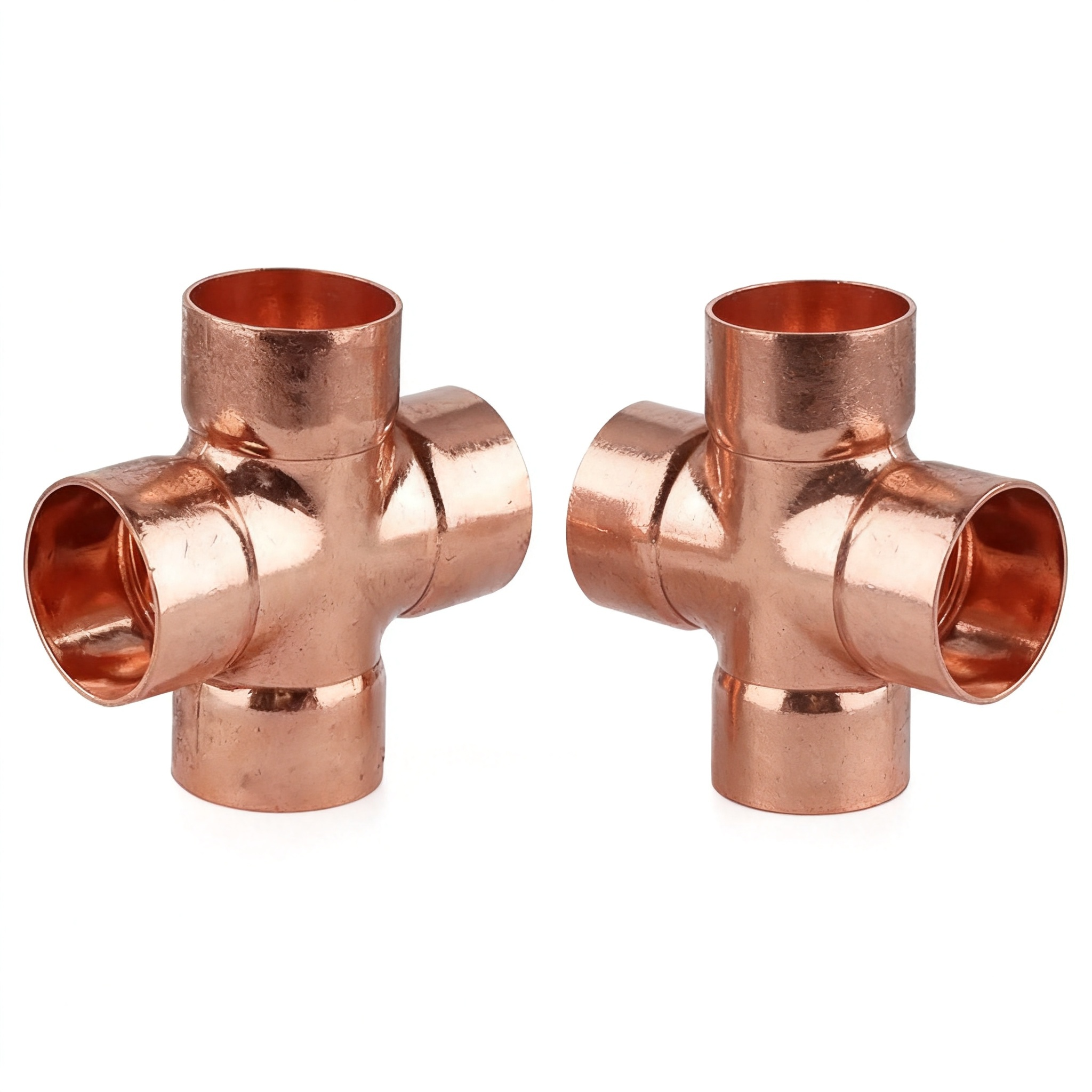

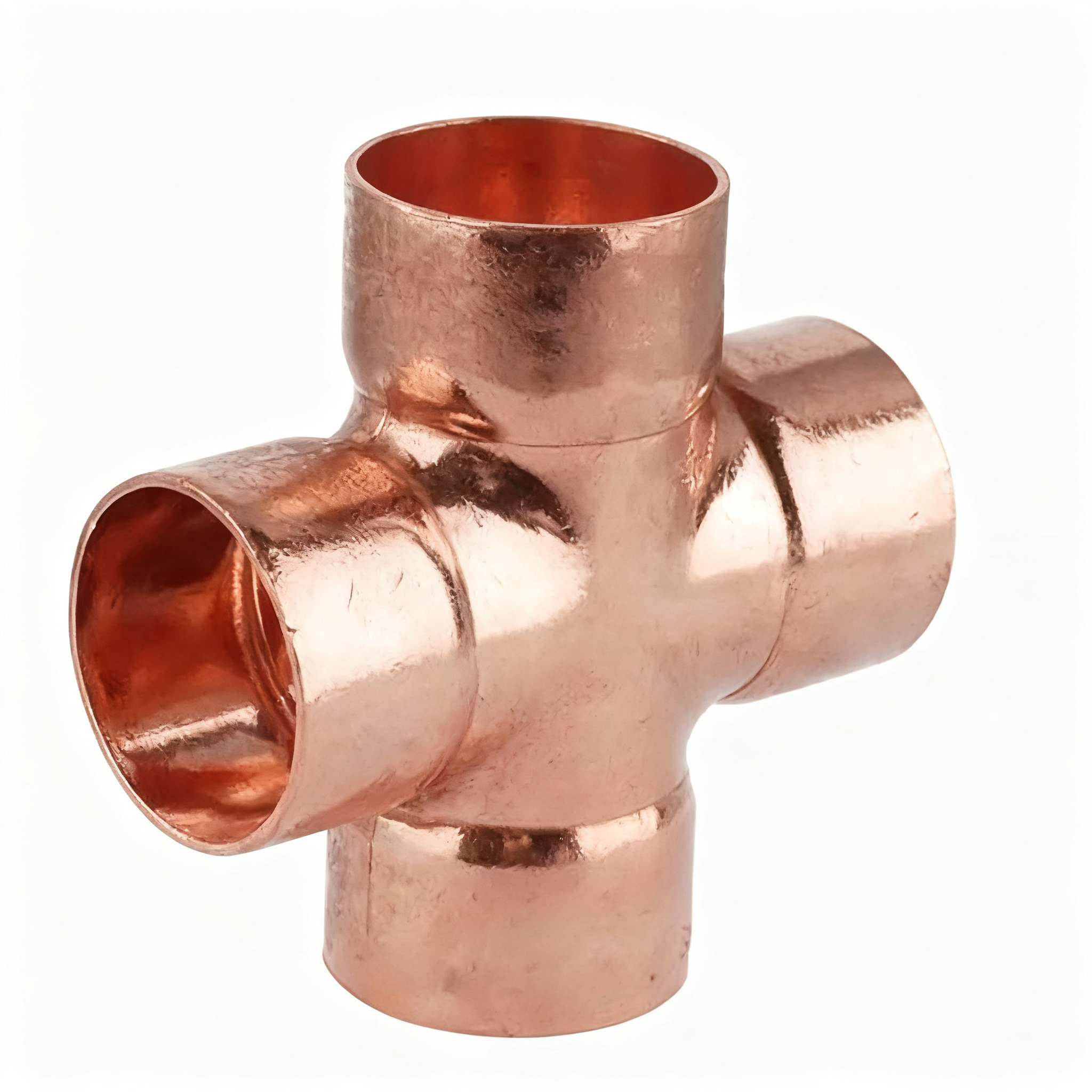

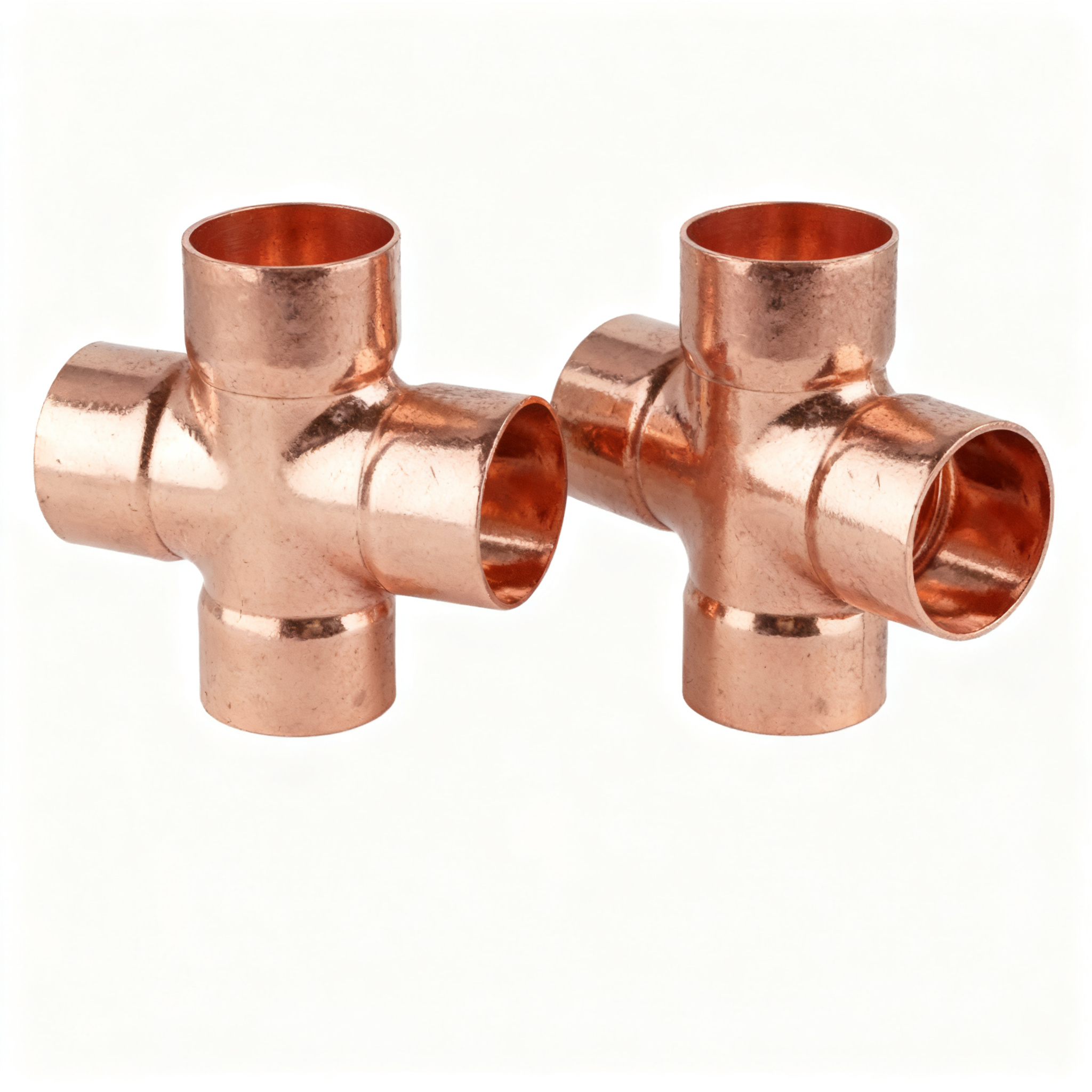

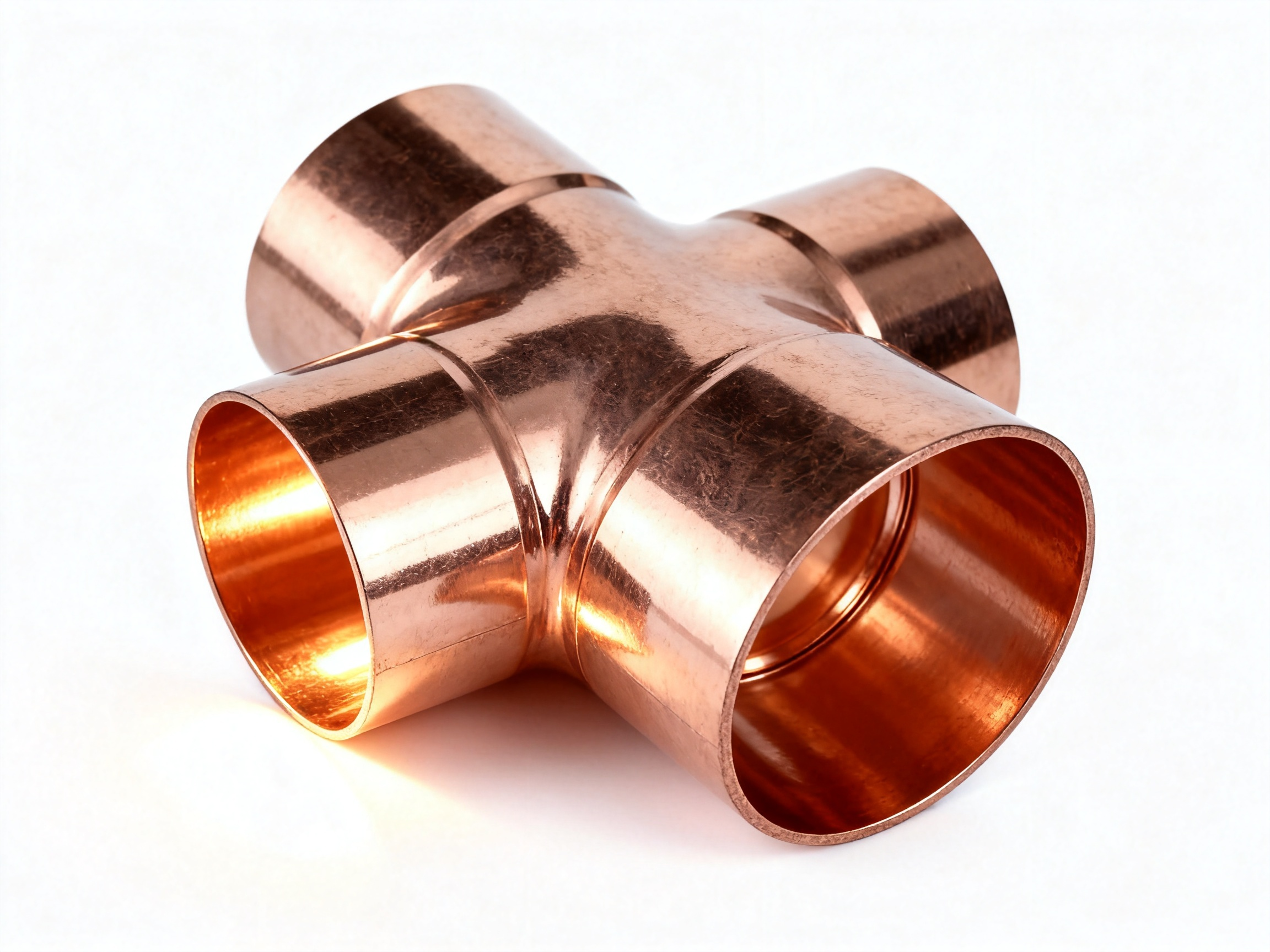

Our Copper Cross is a precision-engineered wrot copper fitting designed to connect four lengths of copper tubing at a 90-degree branch angle in air conditioning, refrigeration, and heat pump systems. Manufactured from high-purity C12200 phosphorus-deoxidized copper, it provides a secure, leak-proof junction for 4-way connections in refrigerant circuits.
The cross features a sweat-end (C x C x C x C) design with precision-machined cup connections, ensuring a consistent capillary gap for reliable brazing with Sil-Fos or comparable alloys. The seamless, one-piece wrot construction eliminates weld seams, reducing potential leak points in high-pressure refrigerant circuits. Available in equal and reducing configurations to accommodate different branch line sizes.
| Parameter | Details |
|---|---|
| Material | C12200 Phosphorus-Deoxidized Copper (Wrot) |
| Standard | ASME B16.22 |
| Type | Cross (Equal / Reducing) |
| Connection | Sweat End (C x C x C x C) |
| Size Range (OD) | 1/4″ – 2-5/8″ (6.35mm – 66.7mm) |
| Wall Thickness | 0.8mm – 3.0mm (size dependent) |
| Working Pressure | Up to 700 psi (4.8MPa) |
| Operating Temperature | -20°F to +400°F (-29°C to +204°C) |
| Surface | Smooth, burr-free, degreased |
| Certification | ASME B16.22, ASTM B75, NSF 61 |
Seamless Wrot Construction – One-piece forged design eliminates weld seams, ensuring structural integrity under high pressure and vibration
Precision C x C x C x C Sweat Ends – Consistent capillary gap for reliable brazing, with precise socket depths for quick, leak-free field installation
Equal & Reducing Configurations – Available in both equal and reducing crosses to accommodate different branch line sizes without additional adapters
High-Purity C12200 Copper – Excellent thermal conductivity and corrosion resistance, suitable for long-term refrigerant exposure
Degreased & Clean – No contaminants that could block capillary tubes or valves in refrigeration systems
Full Size Range – Available from 1/4″ to 2-5/8″ OD
4-way branching of refrigerant lines in split AC and central HVAC systems
Refrigeration system piping for cold storage, display cases, and chillers
Heat pump and VRF/VRV system installations
Repair and modification of existing ACR piping
CO2 refrigeration systems (degreased version)
Size – 1/4″ to 2-5/8″ OD, equal and reducing configurations available
Material – C12200 standard; other copper grades available on request
Surface – Degreased for oxygen/CO2 service (optional)
Packaging – Individual bag, bulk carton, or custom labeled packaging
Lead Time – 7–25 days for standard sizes
MOQ – Flexible, contact us for details
Samples – Available upon request
For technical datasheets, samples, or bulk pricing, contact us directly.
