180° copper return bend for HVAC and refrigeration piping. C12200 wrot copper, ASME B16.22 compliant. C x C sweat-end design changes pipeline direction 180° in heat exchangers and condenser coils. Sizes 1/4″ to 2-1/8″ OD. Max pressure 700 psi, temp range -20°F to +400°F.

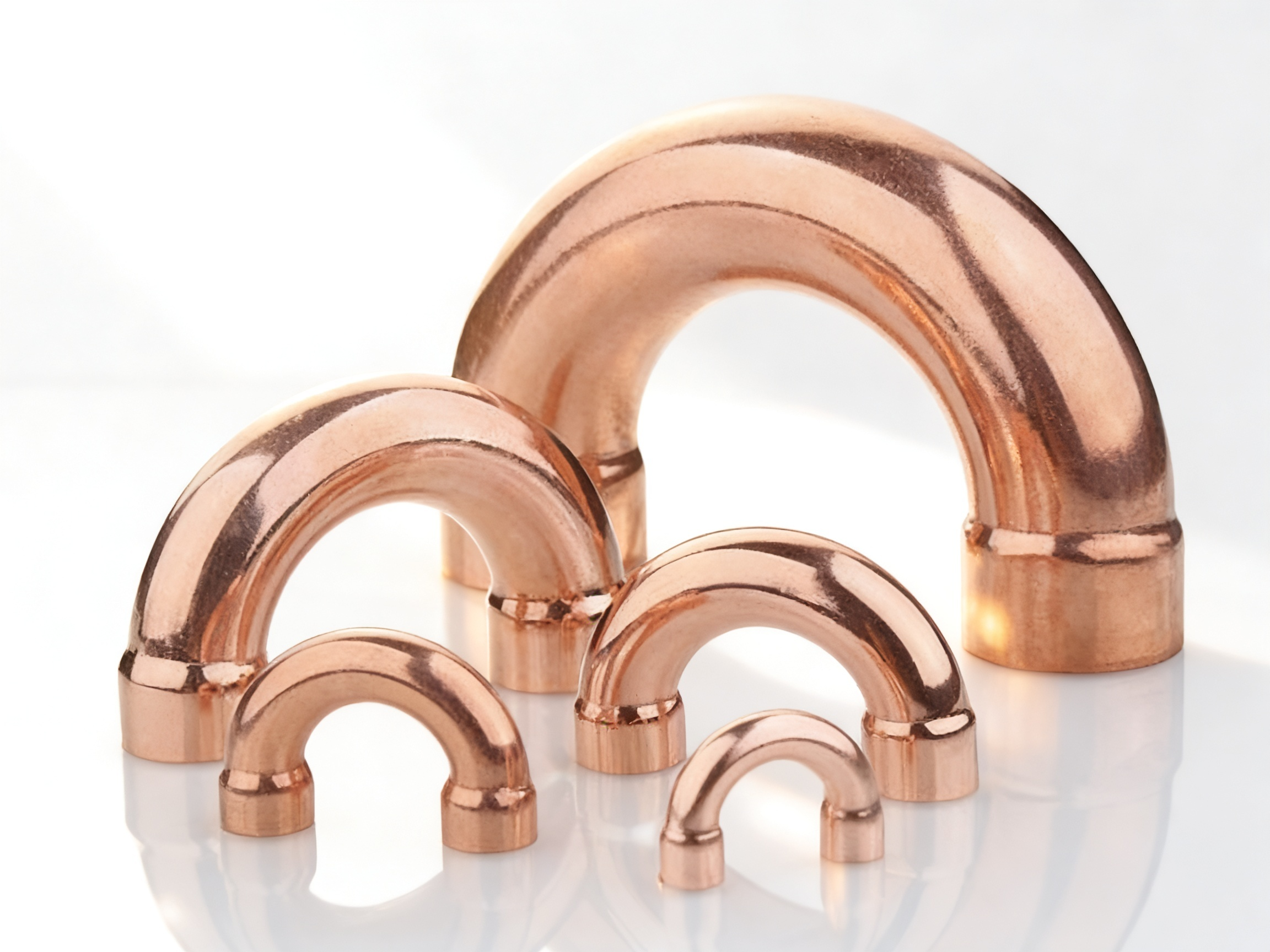

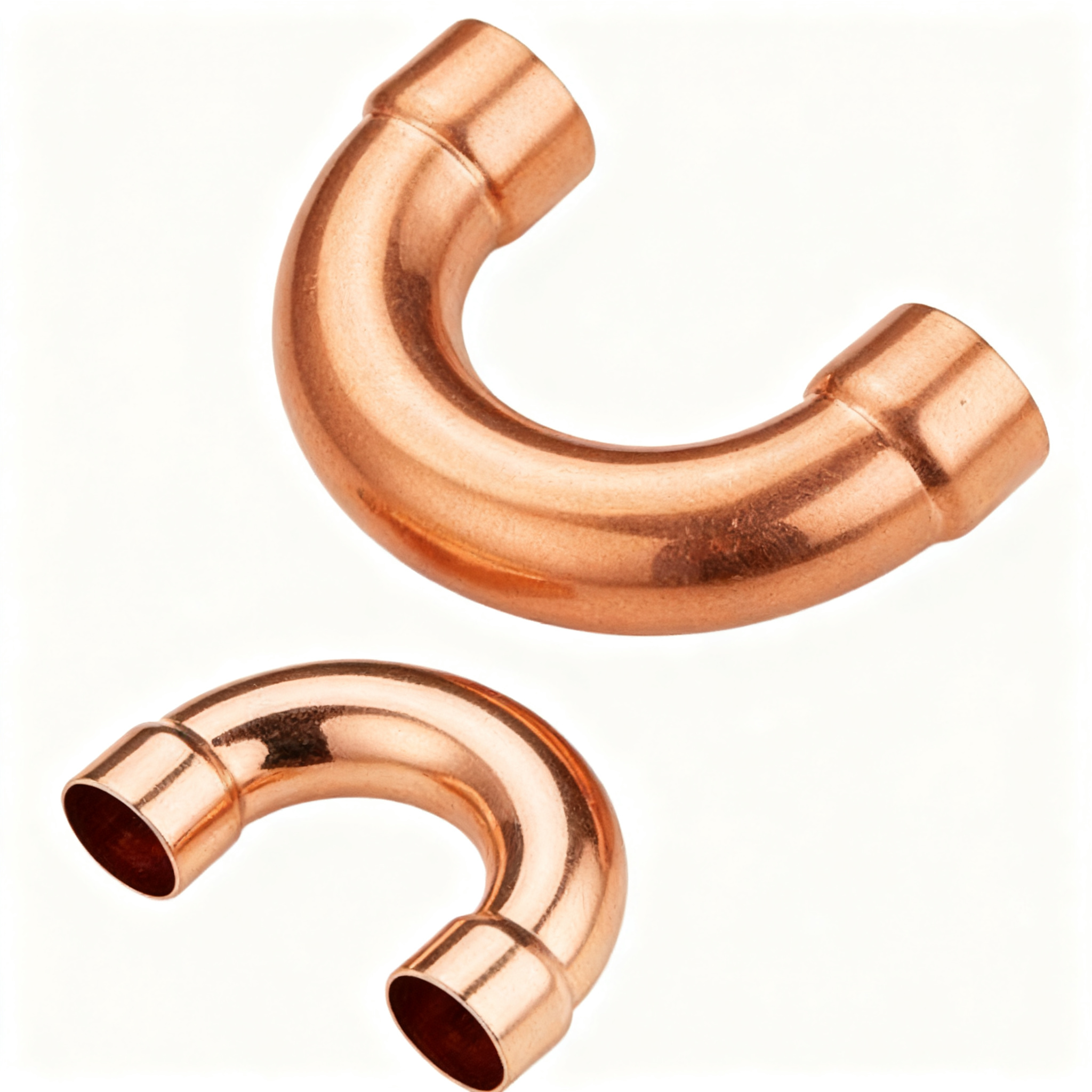

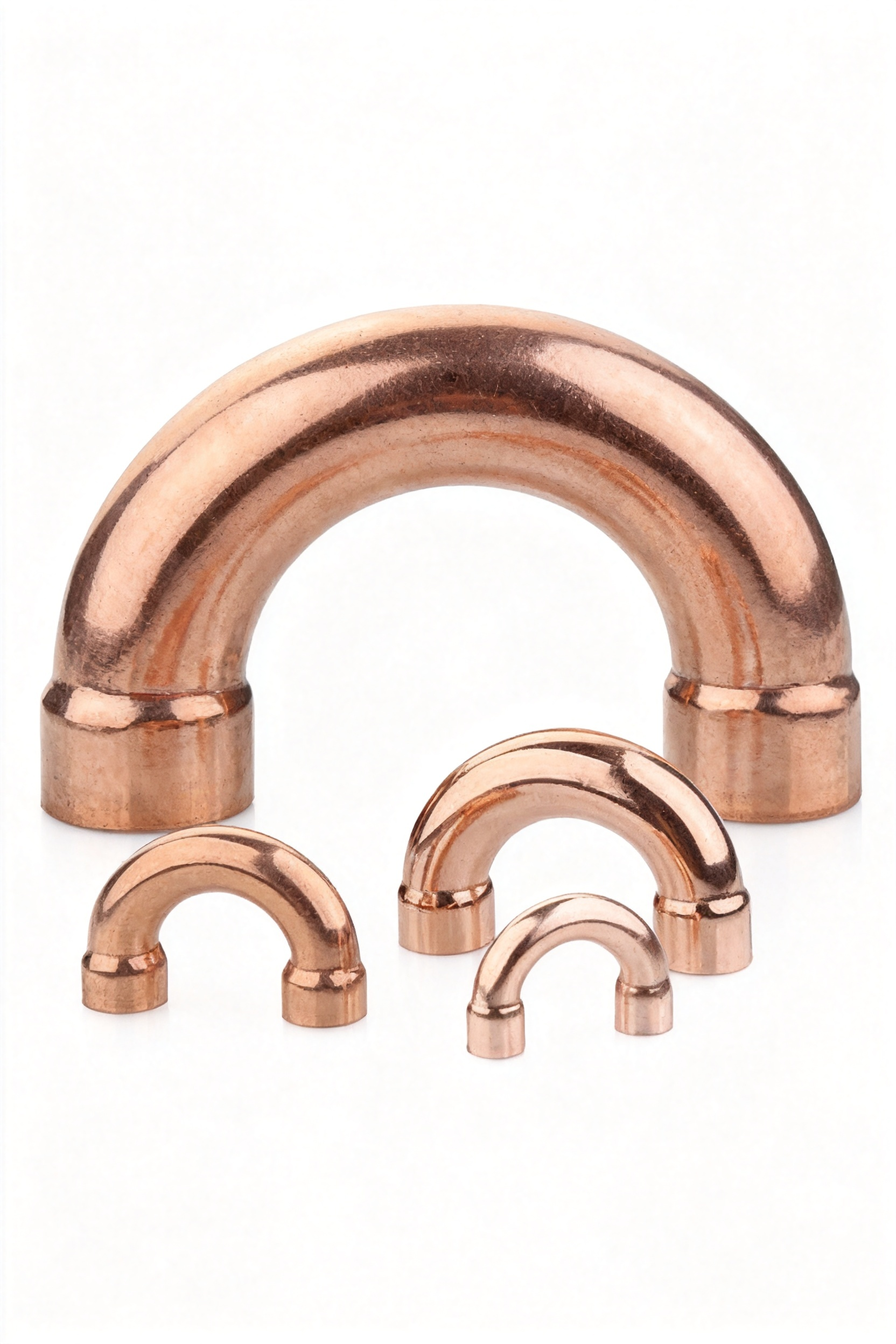

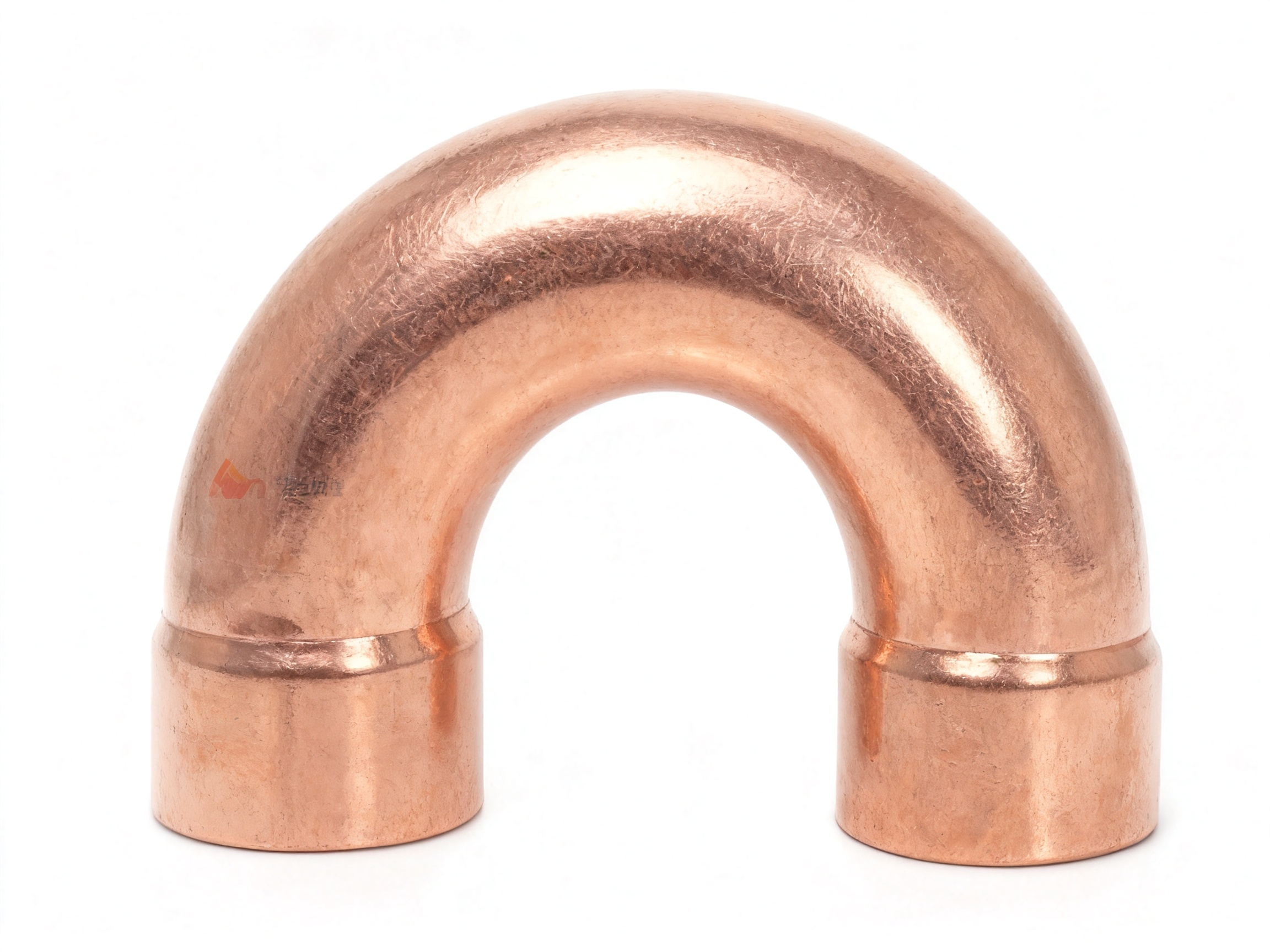

Our Copper Return Bend is a precision-engineered wrot copper fitting designed to change pipeline direction by 180 degrees in air conditioning, refrigeration, and heat pump systems. It is widely used in heat exchanger hairpin tubes, condenser coils, and evaporator assemblies, where refrigerant flow must reverse direction within a compact space.
Manufactured from high-purity C12200 phosphorus-deoxidized copper, the return bend features a sweat-end (C x C) design with precision-machined solder cups, ensuring a consistent capillary gap for reliable brazing. The seamless, one-piece wrot construction eliminates weld seams, reducing potential leak points in high-pressure refrigerant circuits.
| Parameter | Details |
|---|---|
| Material | C12200 Phosphorus-Deoxidized Copper (Wrot) |
| Standard | ASME B16.22 |
| Type | Return Bend (180° U-Bend) |
| Connection | Sweat End (C x C) |
| Size Range (OD) | 1/4″ – 2-1/8″ (6.35mm – 54mm) |
| Wall Thickness | 0.7mm – 2.0mm (size dependent) |
| Working Pressure | Up to 700 psi (4.8MPa) |
| Operating Temperature | -20°F to +400°F (-29°C to +204°C) |
| Surface | Smooth, burr-free, degreased |
180° Direction Change – Reverses pipeline direction without additional fittings, ideal for heat exchanger and coil applications where space is limited
Seamless Wrot Construction – One-piece forged design eliminates weld seams, ensuring structural integrity under high pressure and thermal cycling
Precision C x C Sweat Ends – Consistent capillary gap for reliable brazing, with precise socket depths for quick, leak-free field installation
Smooth Inner Surface – Reduces refrigerant flow resistance and turbulence, optimizing heat exchange efficiency in condenser and evaporator coils
High-Purity C12200 Copper – Excellent thermal conductivity and corrosion resistance, suitable for long-term refrigerant exposure
Degreased & Clean – No contaminants that could block capillary tubes or valves in refrigeration systems
Heat exchanger hairpin tube connections in AC and refrigeration systems
Condenser and evaporator coil assemblies
Refrigeration system piping for cold storage, display cases, and chillers
Heat pump and VRF/VRV system installations
Repair and modification of existing ACR piping
Size – 1/4″ to 2-1/8″ OD, custom sizes available
Material – C12200 standard; other copper grades on request
Surface – Degreased for oxygen/CO2 service (optional)
Packaging – Individual bag, bulk carton, or custom labeled packaging
Lead Time – 7–15 days for standard sizes
MOQ – Flexible, contact us for details
Samples – Available upon request
For technical datasheets, samples, or bulk pricing, contact us directly.
