ACR copper straight coupling for refrigeration and HVAC pipe connections. High-purity C12200 copper, ASME B16.22 compliant. Sweat-end design for secure solder joints. Sizes 1/4″ to 4 1/8″ OD. Corrosion resistant, leak-proof.

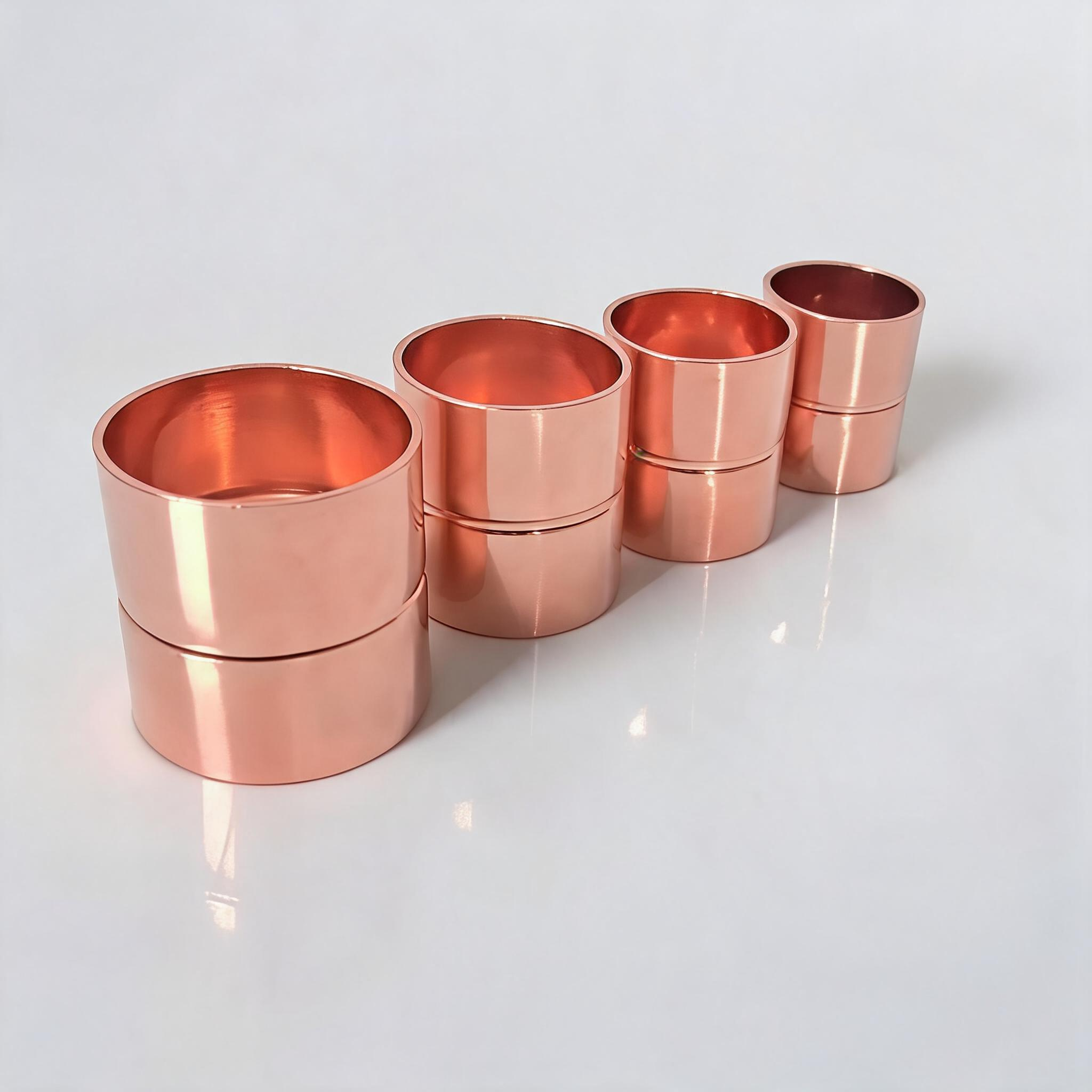

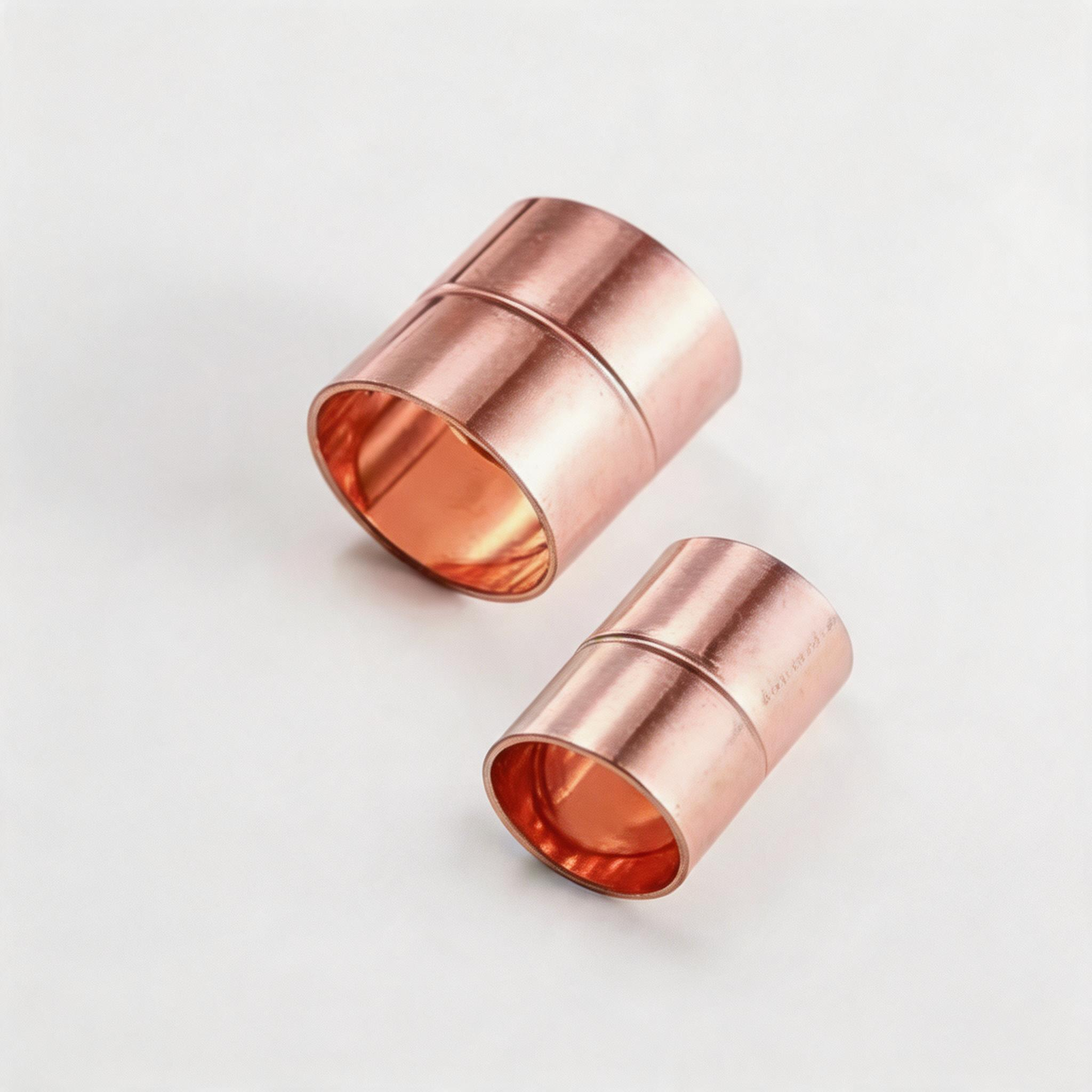

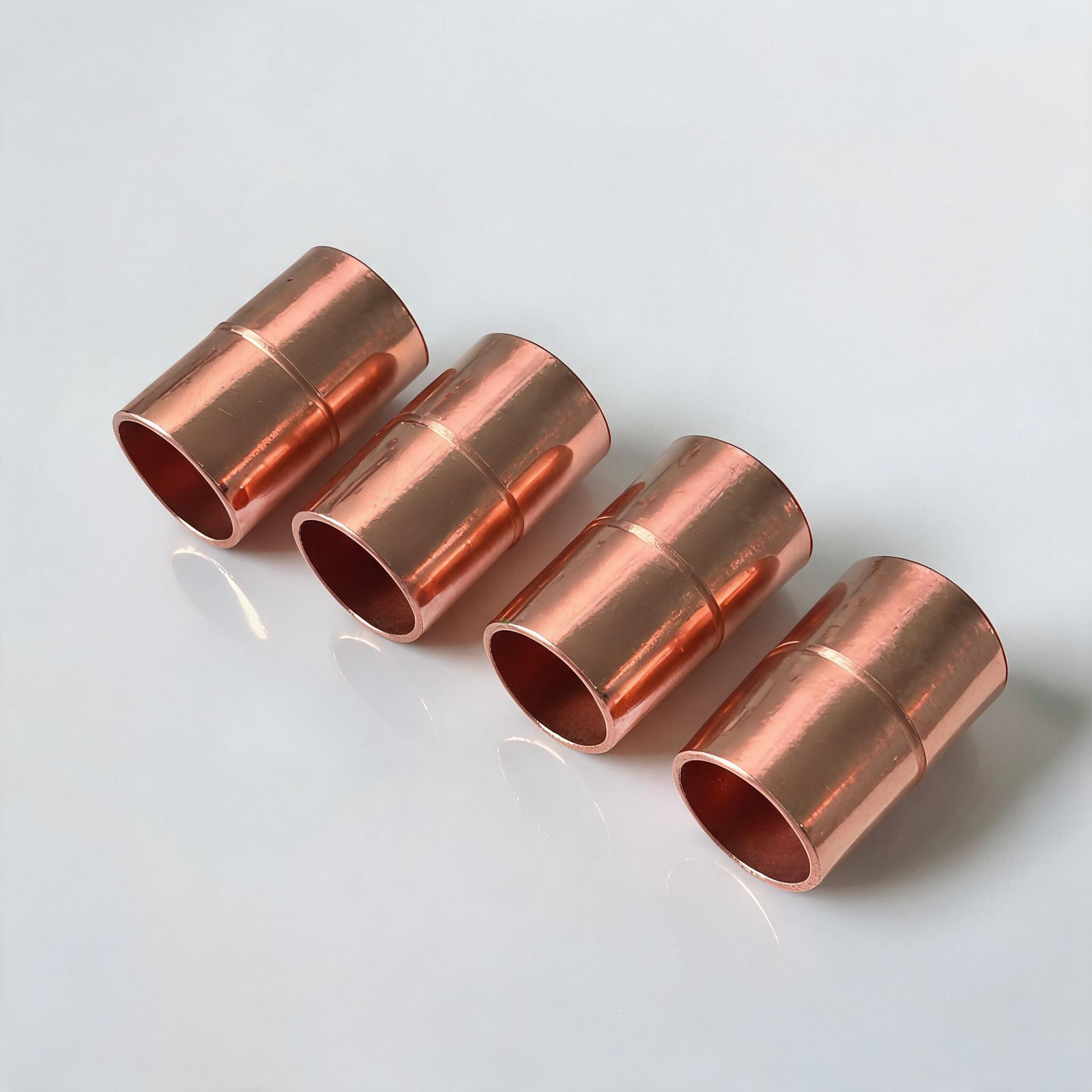

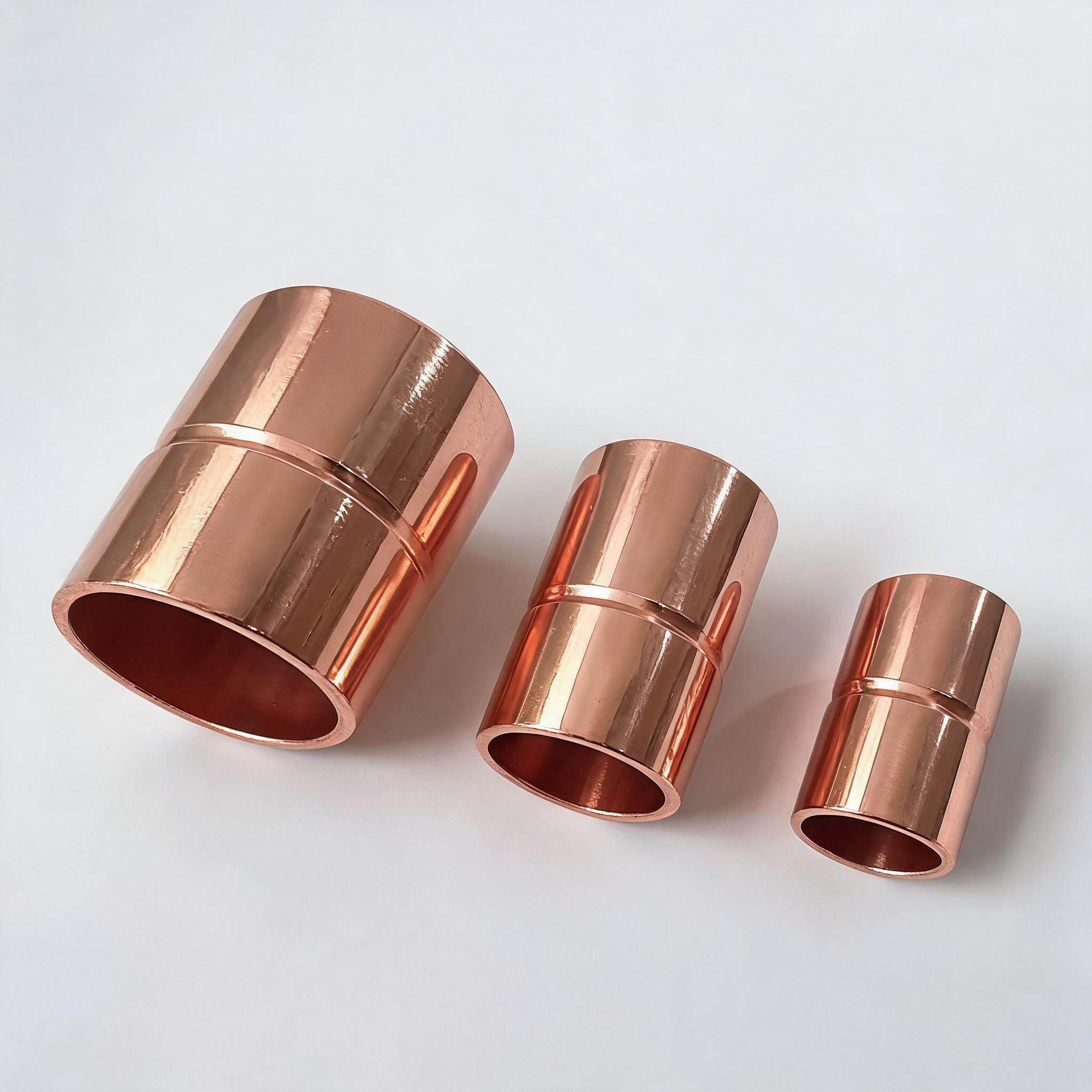

Our Copper Straight Coupling is a precision-engineered pipe fitting designed to connect two lengths of copper tubing in a straight line for air conditioning, refrigeration, and heat pump systems. Manufactured from high-purity phosphorus-deoxidized copper (C12200), it provides a secure, leak-proof joint that withstands the pressure and temperature demands of ACR applications.
The coupling features a sweat-end (solder cup) design that allows for easy brazing or soldering during installation. Its seamless, one-piece construction eliminates potential leak paths found in welded or assembled fittings, ensuring reliable long-term performance in refrigerant circuits.
| Parameter | Details |
|---|---|
| Material | C12200 Phosphorus-Deoxidized Copper |
| Standard | ASME B16.22 |
| Type | Straight Coupling (Equal / Reducing) |
| Connection | Sweat End (Solder Cup) |
| Size Range (OD) | 1/4″ – 4 1/8″ (6.35mm – 105mm) |
| Wall Thickness | 0.8mm – 3.0mm (size dependent) |
| Working Pressure | Up to 4.0MPa |
| Burst Pressure | ≥ 6.0MPa |
| Operating Temperature | -40°C to +150°C |
| Surface | Smooth, burr-free, degreased |
| Certification | ASME B16.22 |
Leak-Proof Seamless Construction – One-piece design eliminates weld seams, reducing potential leak points in refrigerant circuits
Precision Sweat End Fit – Deep groove solder cups ensure proper capillary action during brazing, creating a strong and reliable joint
High-Purity Copper – C12200 phosphorus-deoxidized copper offers excellent thermal conductivity and corrosion resistance
ASME B16.22 Compliant – Meets international standards for ACR copper fittings
Degreased & Clean – Suitable for oxygen and refrigerant systems, no contaminants that could block capillary tubes or valves
Full Size Range – Available from 1/4″ to 4 1/8″ OD to match all common ACR tube sizes
Connecting copper tubes in split AC and central HVAC refrigerant lines
Refrigeration system piping for cold storage, display cases, and chillers
Heat pump and VRF/VRV system installations
Repair and modification of existing ACR piping
CO2 refrigeration systems (degreased version)

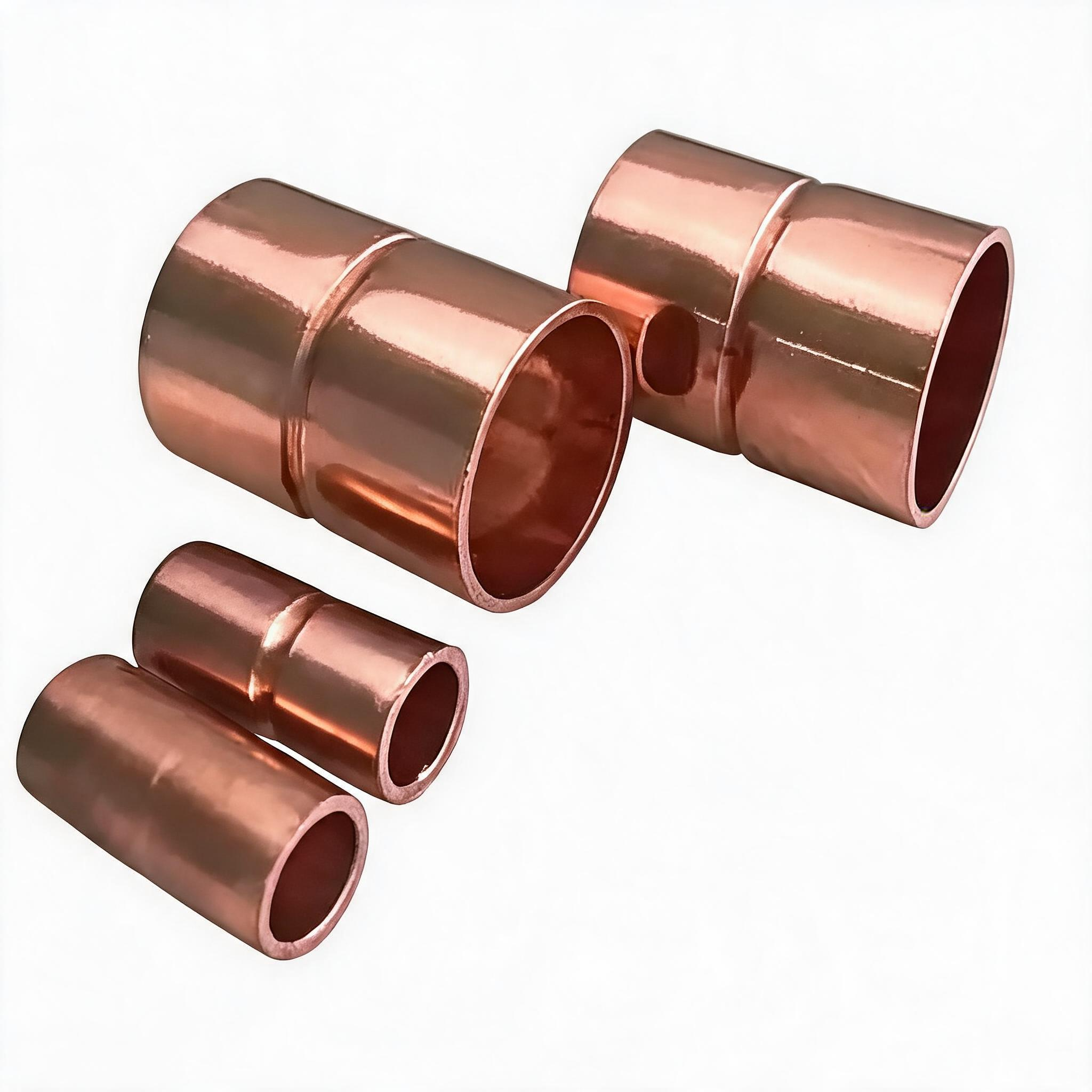

Size – 1/4″ to 4 1/8″ OD, both equal and reducing couplings available
Material – C12200 standard; other copper grades available on request
Surface – Degreased for oxygen/CO2 service (optional)
Packaging – Individual bag, bulk carton, or custom labeled packaging
Lead Time – 7–25 days for standard sizes
MOQ – Flexible, contact us for details
Samples – Available upon request
For technical datasheets, samples, or bulk pricing, contact us directly.
