External rotor axial fans for condenser & evaporator in commercial refrigeration. 200–630mm, 220V/380V, 50/60Hz. High airflow, low noise, compact design. OEM & ODM. Free sample.

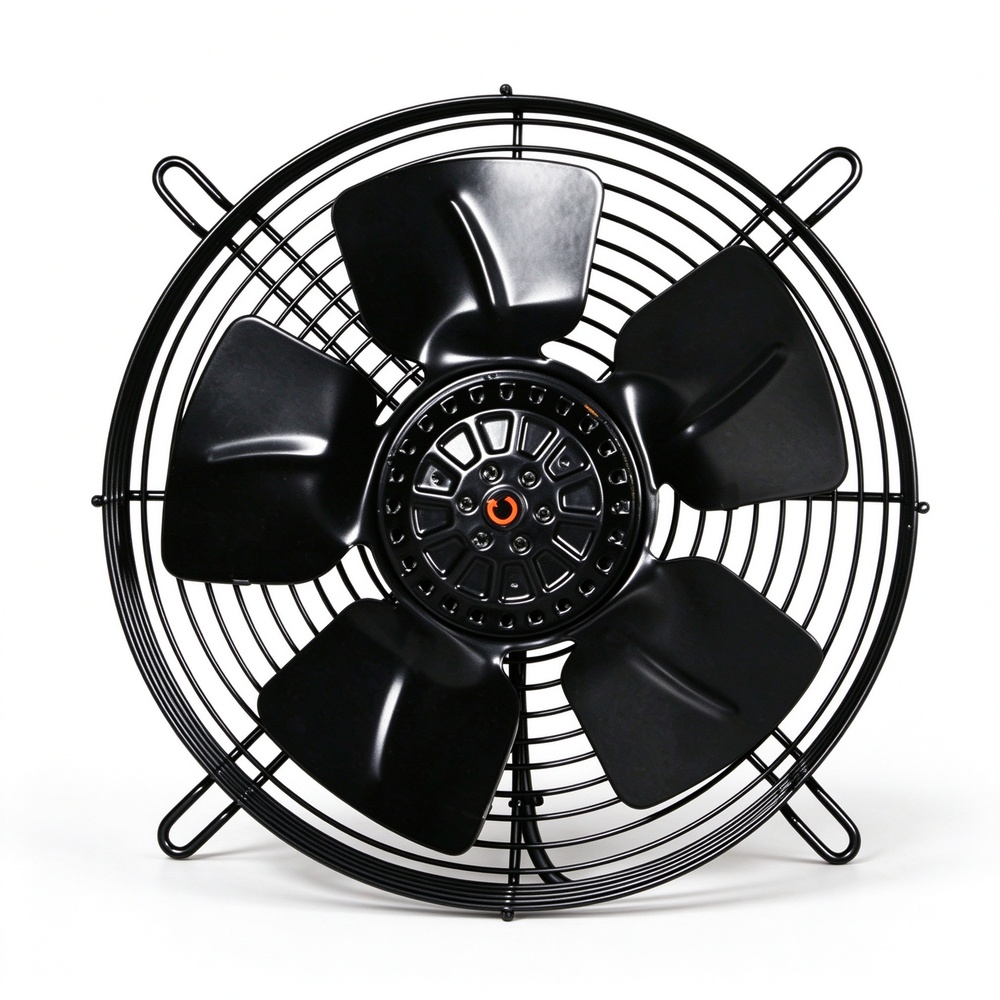

External rotor axial fan for condenser and evaporator heat exchange in commercial refrigeration and HVAC systems. Compact external rotor motor integrated with impeller for space-saving installation. 200–630mm blade diameter, 220V/380V, 50/60Hz. High airflow, low noise, thermal overload protection. Suitable for cold rooms, display cases and condensing units. OEM support.
| Parameter | Details |
|---|---|
| Product Type | External Rotor Axial Fan |
| Motor Type | External rotor induction motor |
| Blade Diameter | 200mm / 250mm / 300mm / 350mm / 400mm / 450mm / 500mm / 550mm / 630mm |
| Voltage | 220V / 230V / 380V / 400V AC |
| Frequency | 50/60 Hz |
| Number of Poles | 2-pole / 4-pole / 6-pole |
| Speed Range | 900 – 2800 RPM |
| Airflow | 500 – 8,000 m³/h |
| Power | 20W – 500W |
| Blade Material | Die-cast aluminum / Steel |
| Protection Class | IP44 / IP54 |
| Insulation Class | Class F (155°C) |
| Bearing Type | Ball bearing, greased for life |
| Thermal Protection | Built-in thermal overload protector |
| Operating Temperature | -40°C to +70°C |
| Rotation | CW / CCW / Reversible (model dependent) |
| Application | Condenser, evaporator, cold room, display case |
Compact External Rotor Design – Motor integrated inside the impeller hub, reducing axial installation space. Ideal for space-constrained condenser and evaporator units.
High Airflow at Low Noise – Direct-drive impeller mounted on rotor delivers high airflow with minimal noise. Suitable for noise-sensitive commercial environments.
Efficient Motor Cooling – Motor positioned directly in the air stream, acting as a rotating heat sink. Extends motor life and maintains stable performance.
Built-in Thermal Protection – Thermal overload protector cuts power when winding temperature exceeds safe limits. Prevents motor burnout.
IP54 Protection – Dust and moisture resistant, suitable for outdoor and humid refrigeration environments.
Wide Size & Voltage Range – 200mm to 630mm blade diameters, 220V/380V. Covers small display cases to large commercial condensers.
Stable Bulk Supply – Standard models ship in 15–25 days. Supports rolling replenishment.
OEM & ODM Support – Custom blade diameter, voltage, speed, and mounting available. Produced per customer drawings.
Export Packaging – Seaworthy carton and pallet packaging. Suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (blade diameter, voltage, airflow) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
