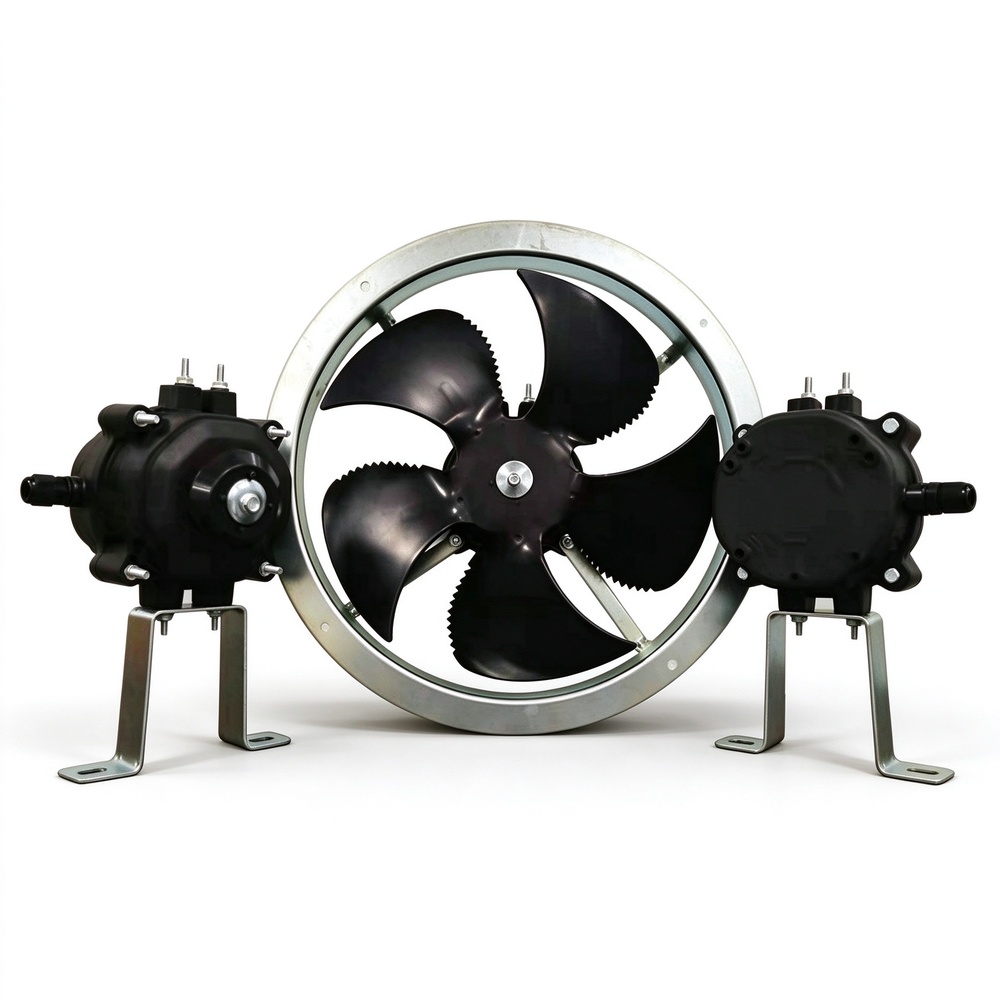

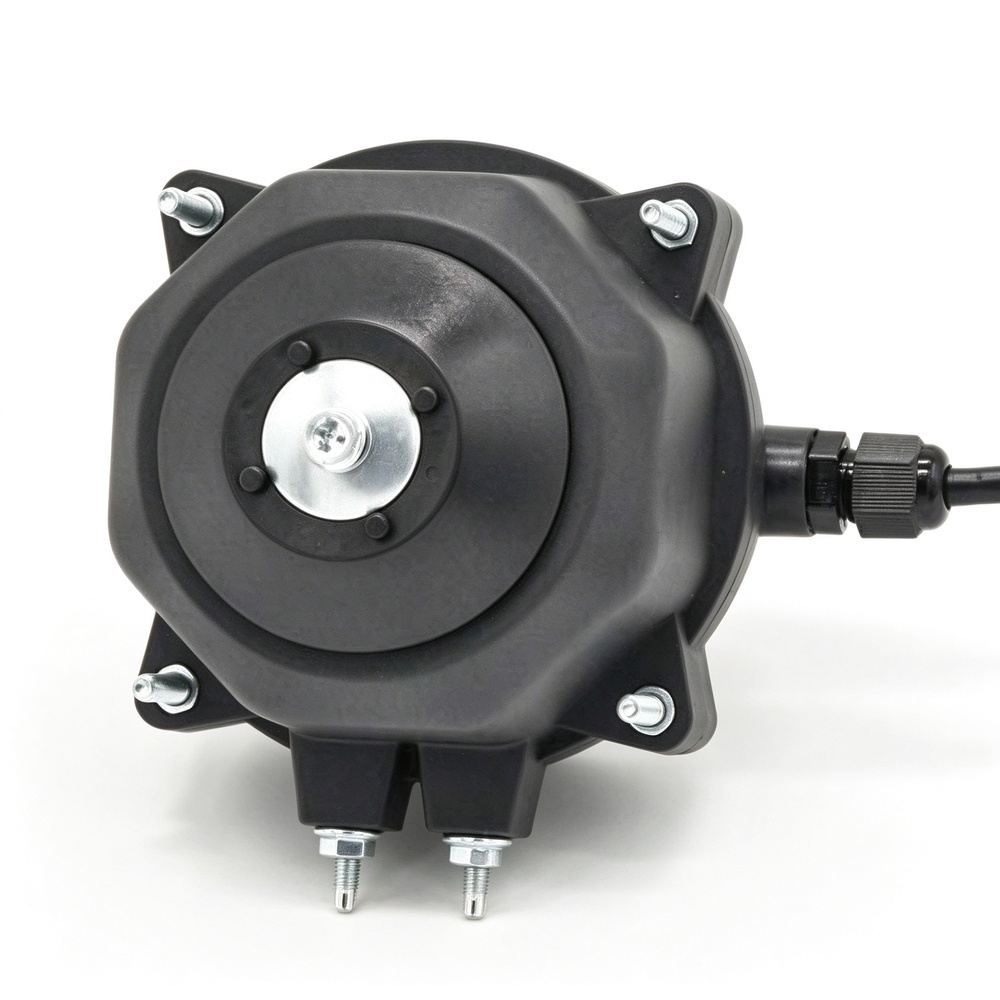

Universal EC motors for refrigeration condenser & evaporator fans. High efficiency, speed controllable, replaces shaded pole & PSC motors. 115V/230V, 50/60Hz. OEM & ODM. Samples available.
Universal EC motor for refrigeration condenser and evaporator fans. Brushless DC design with integrated electronics. High efficiency up to 70%, speed controllable via 0–10V or PWM. Replaces shaded pole and PSC motors. 10W–50W, 115V/230V, 50/60Hz. Low noise, long life. OEM support.
| Parameter | Details |
|---|---|
| Product Type | Universal EC Motor (Brushless DC) |
| Motor Type | Brushless DC with integrated controller |
| Output Power | 10W – 50W |
| Voltage | 115V / 230V AC, 50/60Hz |
| Speed Range | 500 – 1500 RPM |
| Speed Control | 0–10V / PWM |
| Efficiency | Up to 70% |
| Bearing Type | Ball bearing |
| Insulation Class | Class B / Class F |
| Protection Class | IP44 |
| Shaft Diameter | 8mm / Custom |
| Mounting | Bracket / Flange / Unit bearing |
| Rotation | CW / CCW / Reversible |
| Operating Temperature | -30°C to +60°C |
| Service Life | 50,000 hours |
| Application | Condenser fan, evaporator fan |
High Efficiency – Up to 70% efficiency, significantly lower than shaded pole or PSC motors. Reduces energy consumption and operating cost for commercial refrigeration.
Integrated Electronics – Built-in controller eliminates external capacitor and start switch. Simplifies wiring and reduces component count.
Speed Controllable – Supports 0–10V or PWM speed control. Allows precise airflow adjustment based on cooling demand.
Low Noise – Brushless DC design runs smoothly with minimal vibration. Suitable for noise-sensitive applications like display cases and vending machines.
Long Life – 50,000 hours maintenance-free operation. Ball bearing construction ensures reliable continuous duty.
Wide Voltage Range – Available in 115V and 230V, 50/60Hz. Compatible with domestic and international power supplies.
Stable Bulk Supply – Standard models ship in 15–25 days. Supports rolling replenishment and reduces inventory pressure.
OEM & ODM Support – Custom shaft, bracket, and lead length available. Can produce according to customer drawings.
Export Packaging – Seaworthy carton and pallet packaging. Suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (voltage, power, speed control, shaft size) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
