Copper straight tee for HVAC and refrigeration piping. C12200 wrot copper, ASME B16.22 compliant. C x C sweat-end design for secure brazed joints. Sizes 1/4″ to 4-1/8″ OD. Equal and reducing configurations. Max pressure 700 psi. Leak-proof, corrosion resistant.

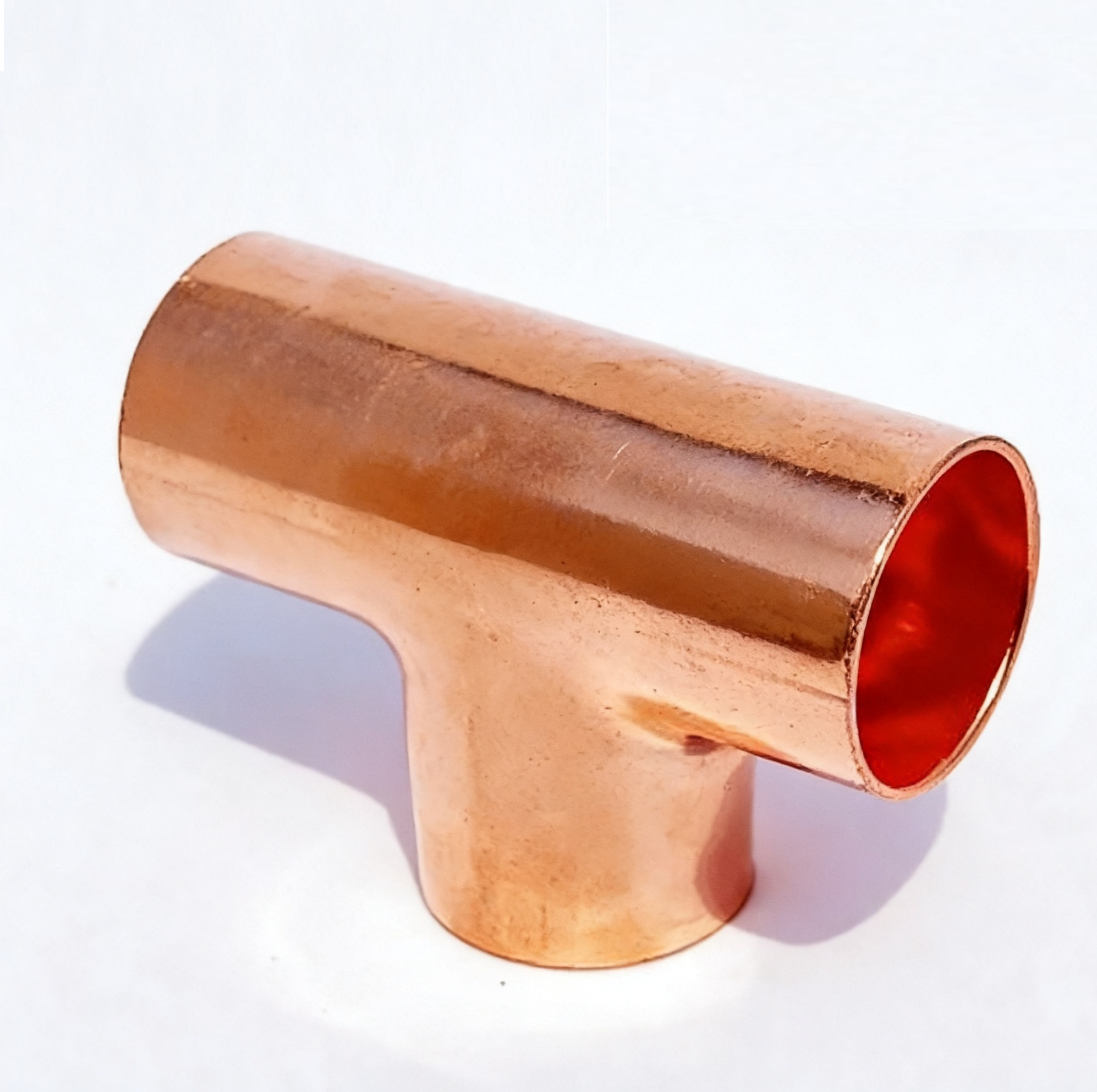

Our Copper Straight Tee is a precision-engineered wrot copper fitting designed to connect three lengths of copper tubing at a 90-degree branch angle in air conditioning, refrigeration, and heat pump systems. Manufactured from high-purity C12200 phosphorus-deoxidized copper, it provides a secure, leak-proof junction that withstands the pressure and thermal cycling demands of ACR applications.
The tee features a sweat-end (solder cup) design with precision-machined C x C x C connections, ensuring a consistent capillary gap for reliable brazing with Sil-Fos or comparable alloys. The seamless, one-piece wrot construction eliminates weld seams, reducing potential leak points in high-pressure refrigerant circuits. Available in equal (straight) and reducing configurations to accommodate different branch line sizes.
| Parameter | Details |
|---|---|
| Material | C12200 Phosphorus-Deoxidized Copper (Wrot) |
| Standard | ASME B16.22 |
| Type | Straight Tee (Equal / Reducing) |
| Connection | Sweat End (C x C x C) |
| Size Range (OD) | 1/4″ – 4-1/8″ (6.35mm – 105mm) |
| Wall Thickness | 0.8mm – 3.0mm (size dependent) |
| Working Pressure | Up to 700 psi (4.8MPa) |
| Operating Temperature | -20°F to +400°F (-29°C to +204°C) |
| Surface | Smooth, burr-free, degreased |
| Certification | ASME B16.22 |
Seamless Wrot Construction – One-piece forged design eliminates weld seams, ensuring structural integrity under high pressure and vibration
Precision C x C x C Sweat Ends – Consistent capillary gap for reliable brazing, with precise socket depths for quick, leak-free field installation

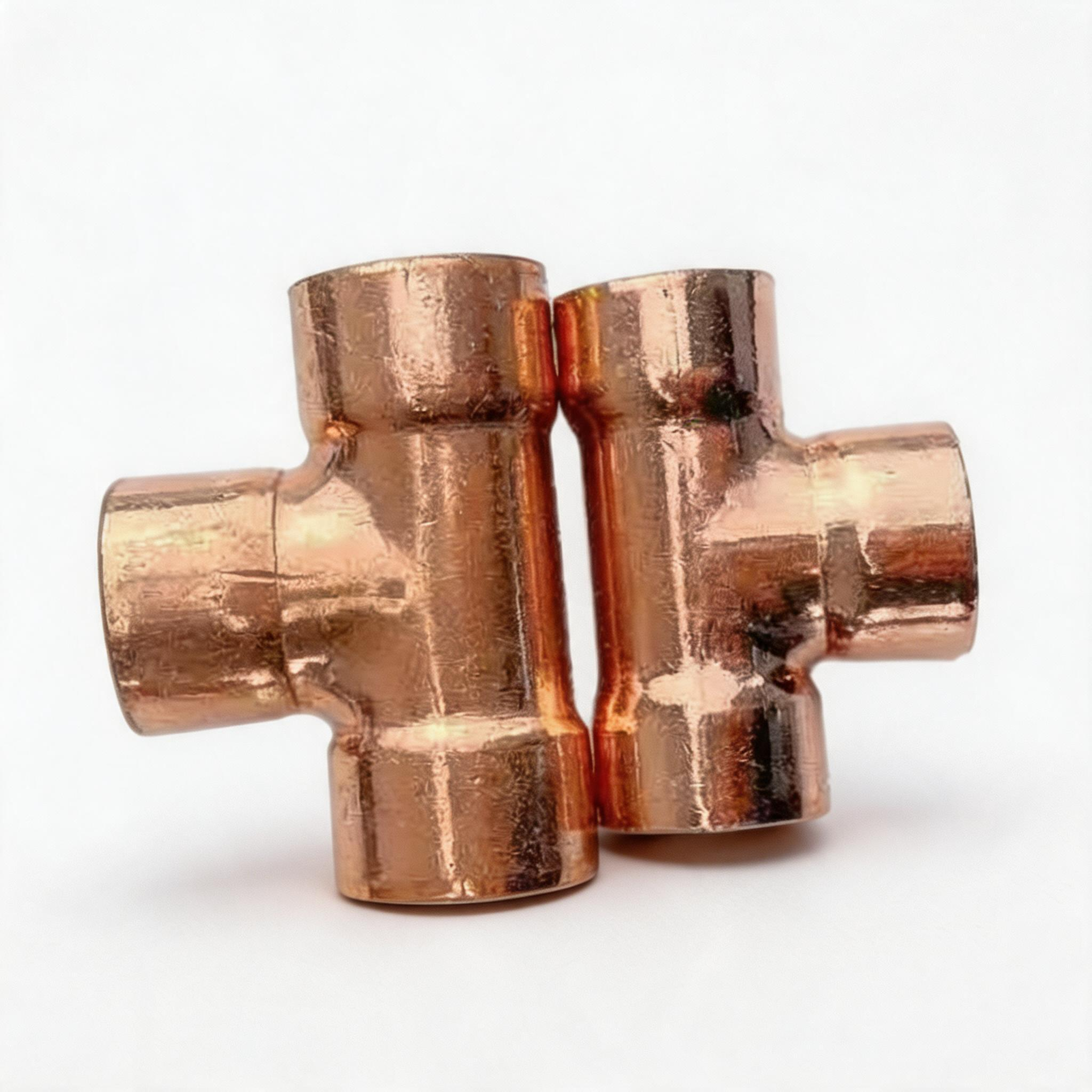

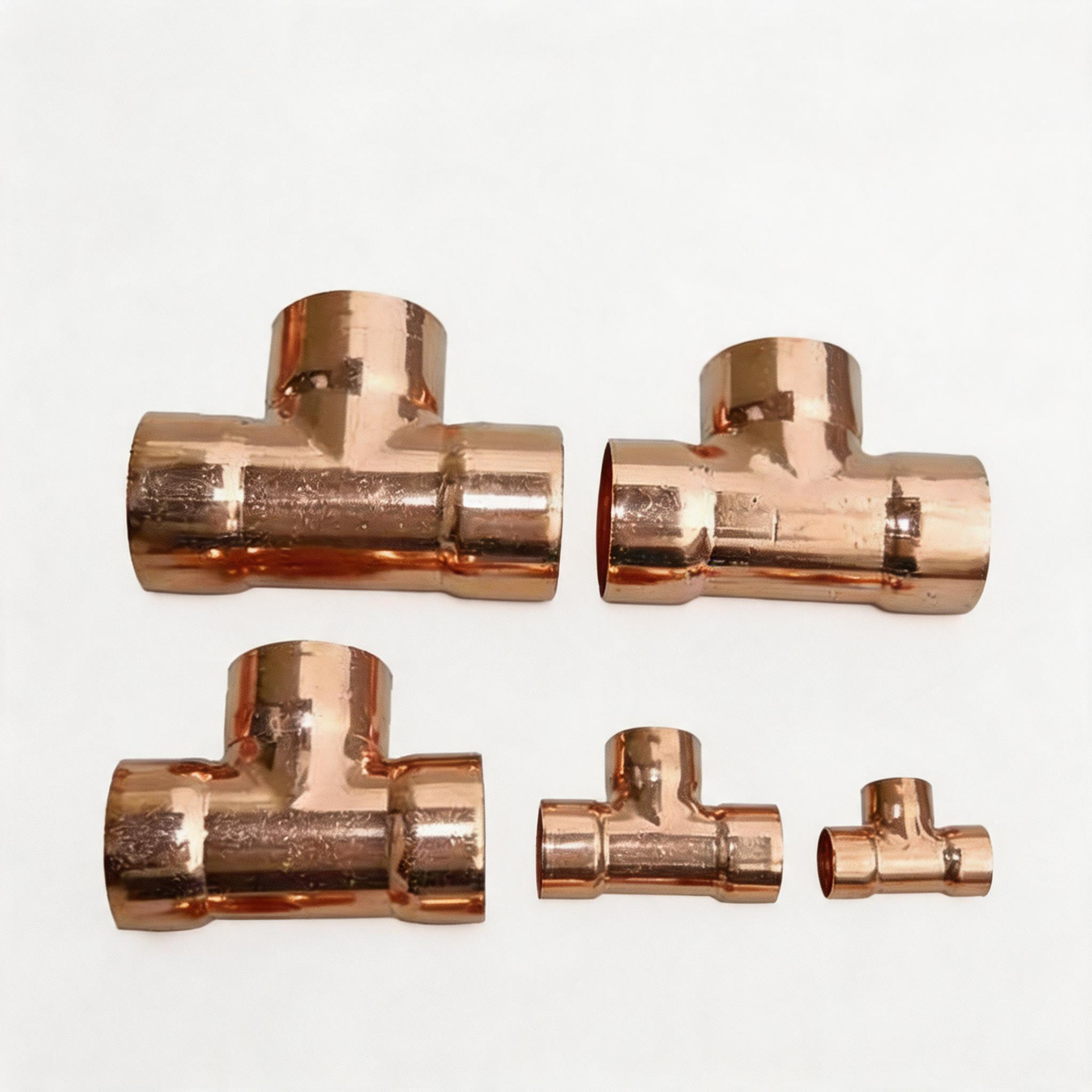

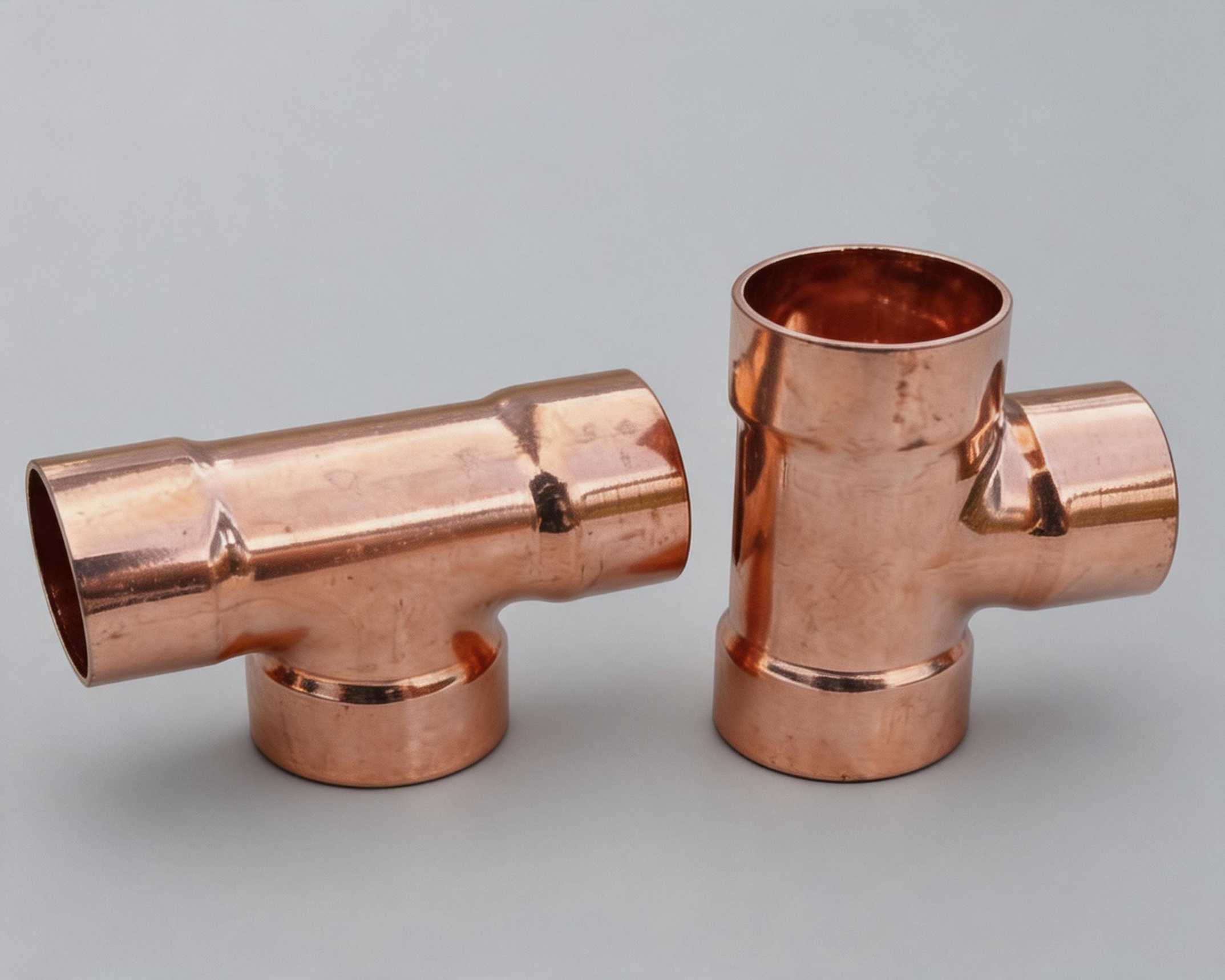

Equal & Reducing Configurations – Available in both equal (straight) and reducing tees to accommodate different branch line sizes without additional adapters
High-Purity C12200 Copper – Excellent thermal conductivity and corrosion resistance, suitable for long-term refrigerant exposure
Degreased & Clean – No contaminants that could block capillary tubes or valves in refrigeration systems
Full Size Range – Available from 1/4″ to 4-1/8″ OD
Branching refrigerant lines in split AC and central HVAC systems
Refrigeration system piping for cold storage, display cases, and chillers
Heat pump and VRF/VRV system installations
Repair and modification of existing ACR piping
CO2 refrigeration systems (degreased version)

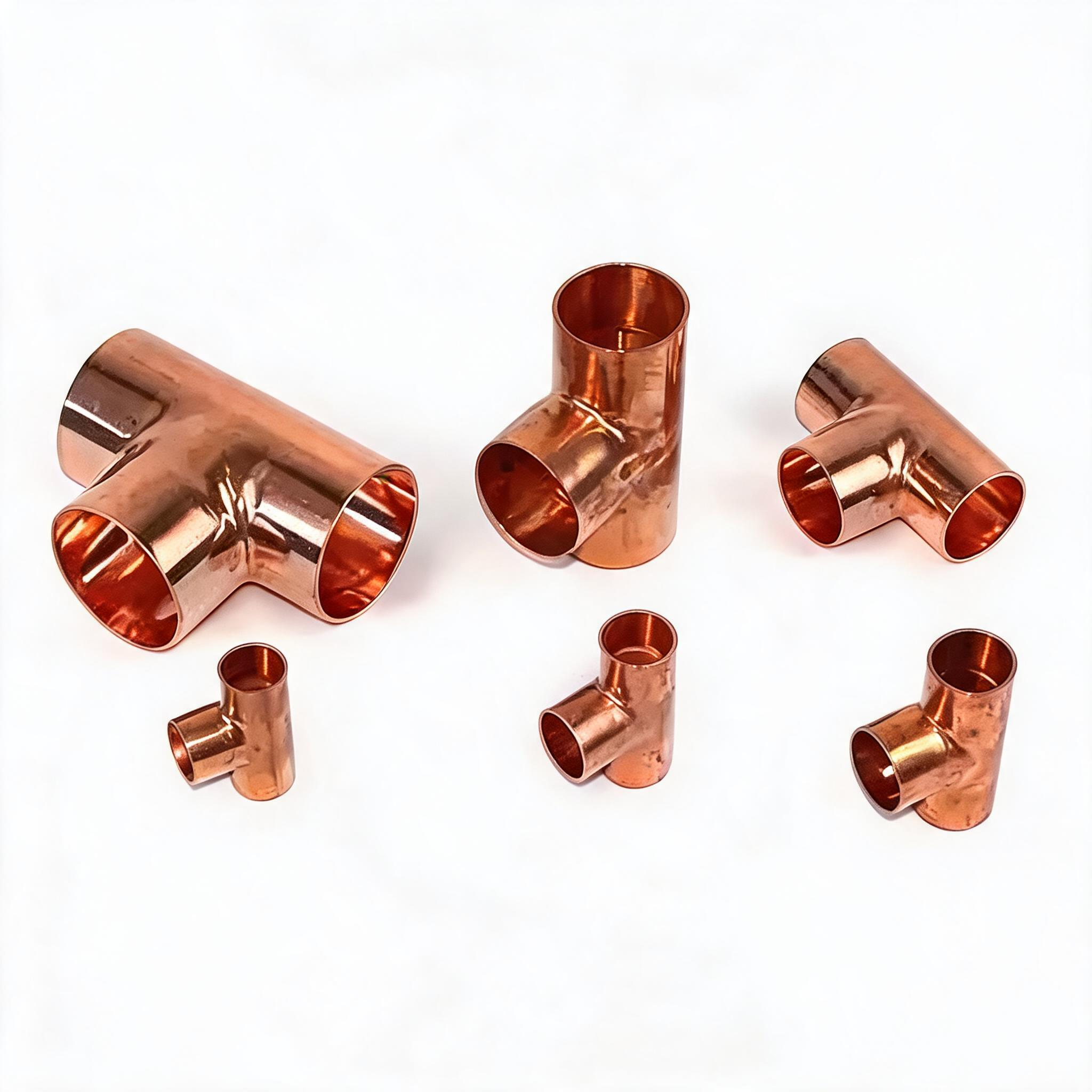

Size – 1/4″ to 4-1/8″ OD, equal and reducing configurations available
Material – C12200 standard; other copper grades available on request
Surface – Degreased for oxygen/CO2 service (optional)
Packaging – Individual bag, bulk carton, or custom labeled packaging
Lead Time – 7–25 days for standard sizes
MOQ – Flexible, contact us for details
Samples – Available upon request
For technical datasheets, samples, or bulk pricing, contact us directly.
