Immersion chillers with submersible coil evaporator for medical, laser & lab cooling. No plumbing required. -20°C to +30°C, 140W–800W. PID control. Bulk pricing & OEM/ODM support.

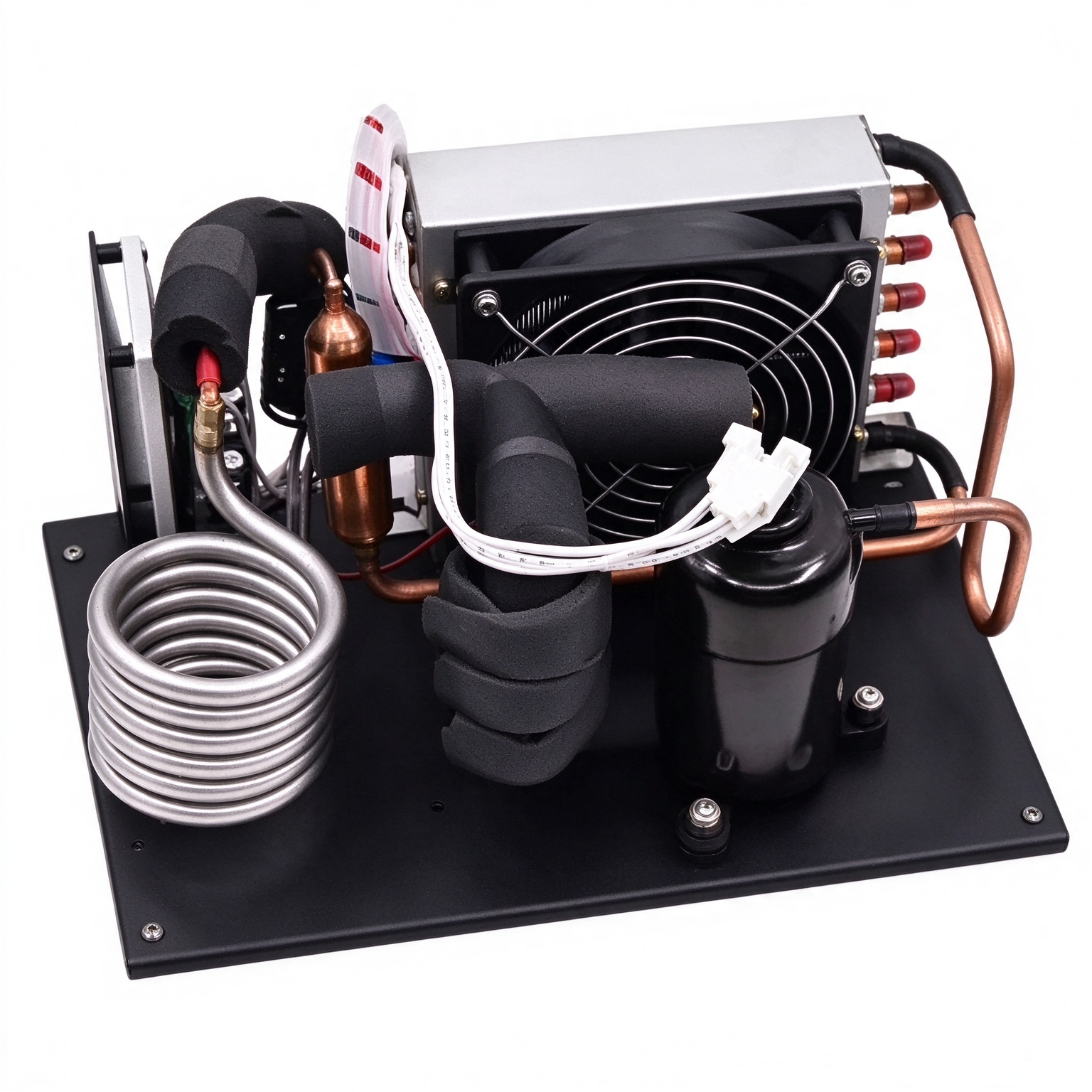

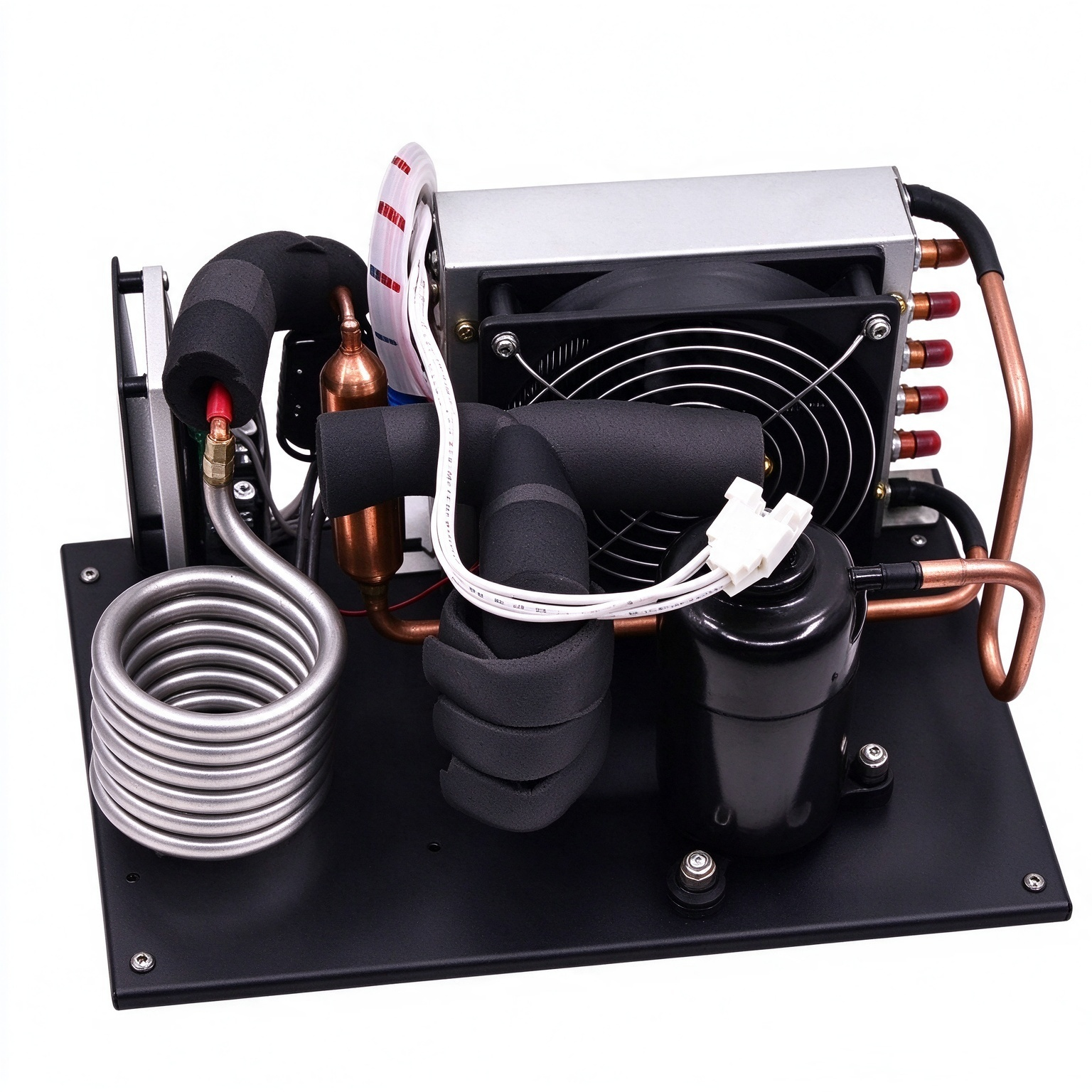

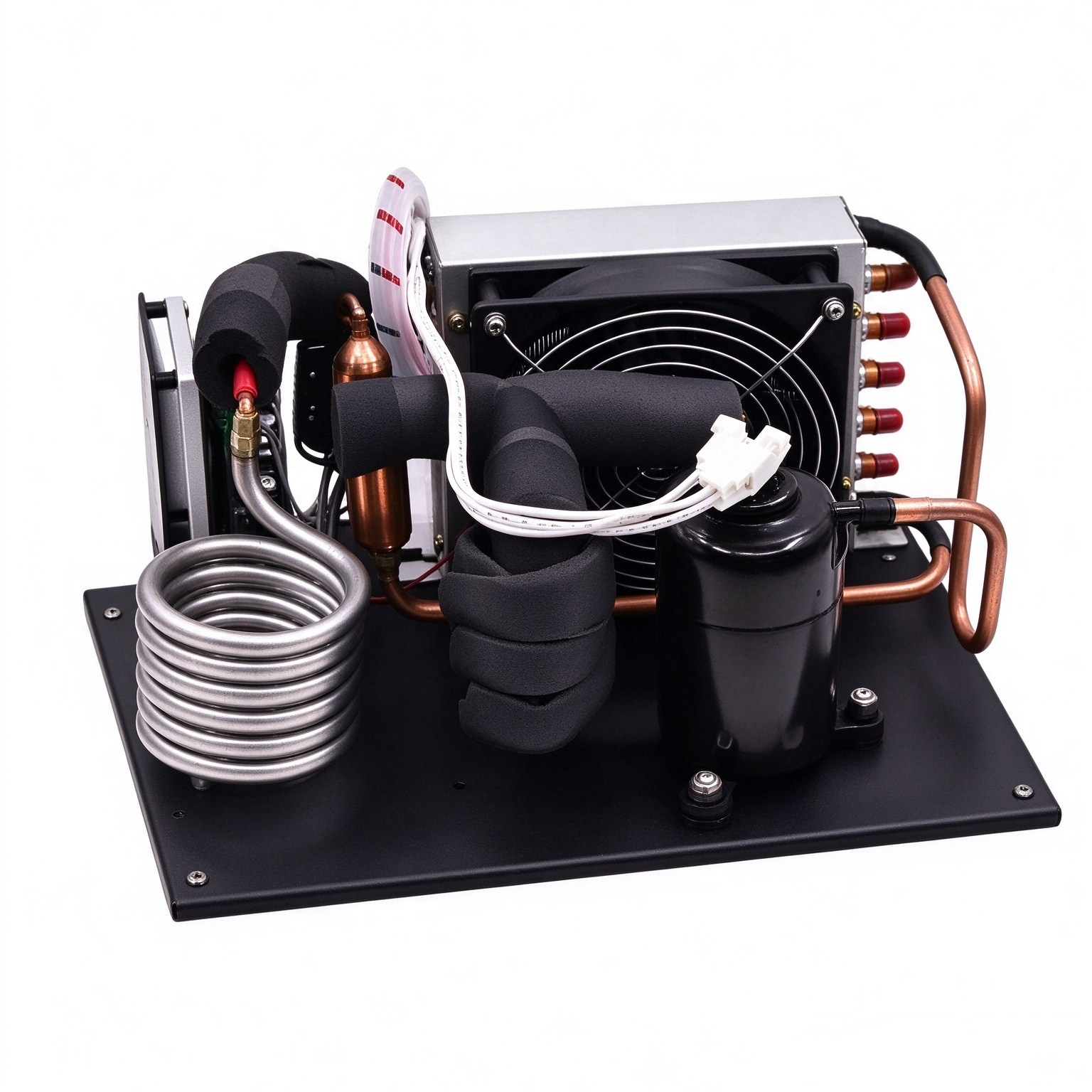

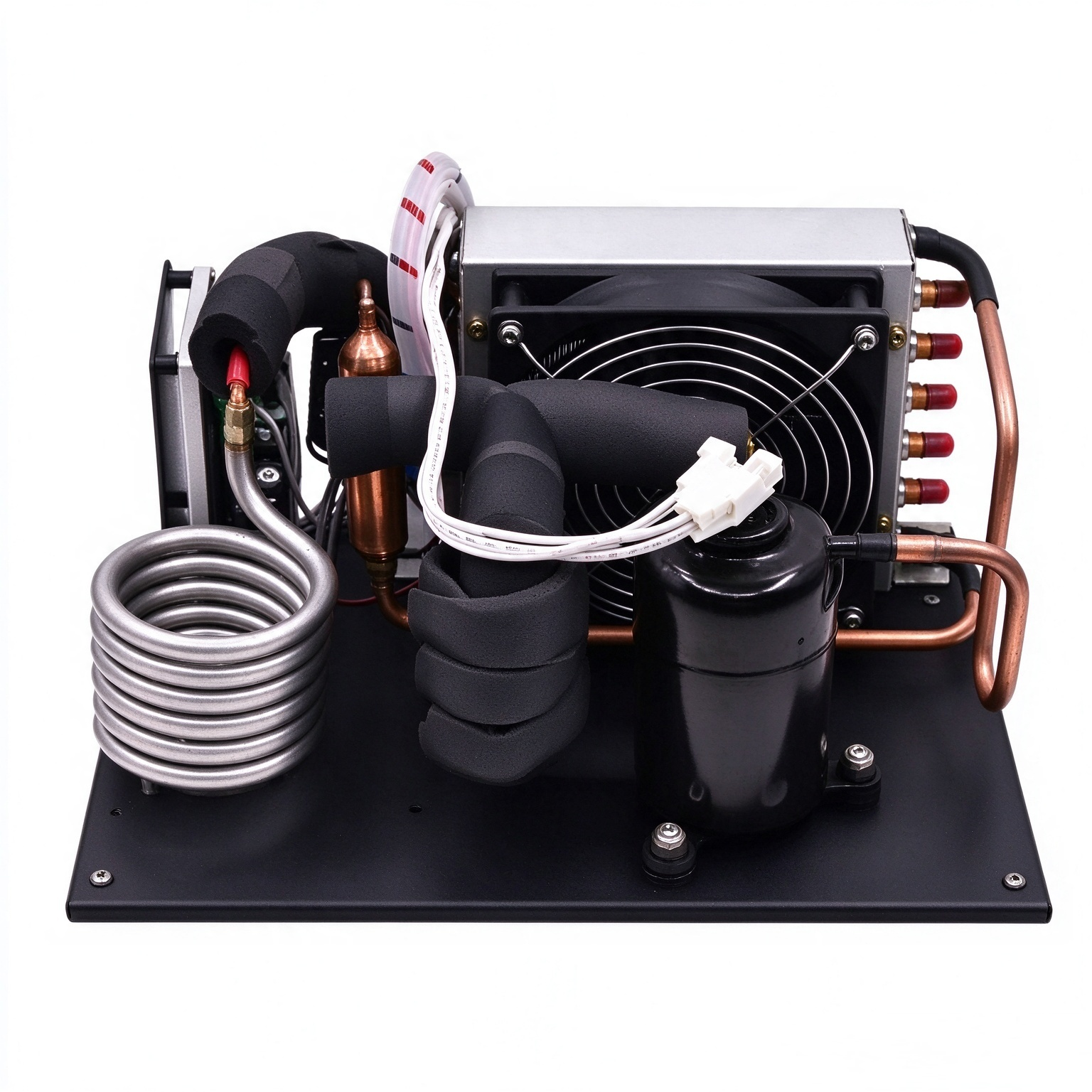

Immersion chiller unit with submersible coil evaporator for direct liquid cooling. Evaporator is submerged directly into the fluid tank — no additional plumbing or circulation pumps required. -20°C to +30°C, 140W–800W cooling capacity. Nickel-plated copper coil. Front panel PID control. For medical, laser and laboratory cooling. OEM support.
| Parameter | Details |
|---|---|
| Product Type | Immersion Chiller Unit |
| Cooling Capacity | 140W – 800W |
| Temperature Range | -20°C to +30°C |
| Temperature Stability | ±0.5°C (PID control) |
| Evaporator Type | Submersible coil, nickel-plated copper |
| Evaporator Dimensions | Ø50mm × 150mm (standard) |
| Hose Length | 1.6m (flexible, for easy submersion) |
| Compressor | Hermetic vapor compression |
| Refrigerant | R134a / R290 |
| Cooling Method | Air-cooled |
| Control | Front panel PID temperature controller |
| Power Supply | AC 220V/50Hz / 110V/60Hz |
| Weight | 22 – 35 kg |
No Plumbing Required – The evaporator is simply submerged into the fluid tank, eliminating the need for additional pumps, piping, or circulation circuits. This reduces installation time, lowers system cost, and eliminates leak points associated with external plumbing.
Direct Immersion Cooling – The nickel-plated copper coil evaporator is placed directly into the liquid to be cooled. Heat is transferred through the coil wall to the refrigerant, achieving direct cooling without intermediate heat transfer fluids.
Sub-Zero Capability – Cools down to -20°C, suitable for deep chilling applications in medical, laser, and laboratory environments.
Portable & Compact Design – Weighing 22–35 kg with a compact footprint, the unit is readily transportable and can be deployed across different workstations or test benches.
Corrosion-Resistant Evaporator – Nickel-plated copper coil withstands most common cooling fluids used in electronics, automotive, and biomedical industries.
Precise PID Temperature Control – Front panel PID controller maintains bath temperature with ±0.5°C stability, critical for laser thermal management and biomedical testing.
Wide Application Coverage – Suitable for laboratory testing, industrial processing, sensor calibration, bio-medical testing, laser thermal management, and component characterization.
Stable Bulk Supply – Standard models ship in 15–25 days, supporting rolling replenishment and reducing inventory capital occupation.
OEM & ODM Support – Custom logo, packaging, voltage and evaporator dimensions available. Can produce according to customer drawings or specifications.
Export Packaging – Seaworthy carton and pallet packaging, suitable for long-distance ocean shipping.
Medical device cooling (laser therapy, diagnostic instruments, aesthetic devices)
Laser thermal management (fiber laser, semiconductor laser)
Laboratory testing and research
Sensor calibration and component characterization
Bio-medical testing and pharmaceutical processing
Industrial processing (micro molding, spot welding)
Electronics and semiconductor cooling
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (cooling capacity, temperature range, application) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
