Professional single manifold pressure gauges for HVAC/R service. Available in brass or aluminum bodies. Features 68mm dials, red/blue color coding, optional sight glass, and rubber boots for impact protection.

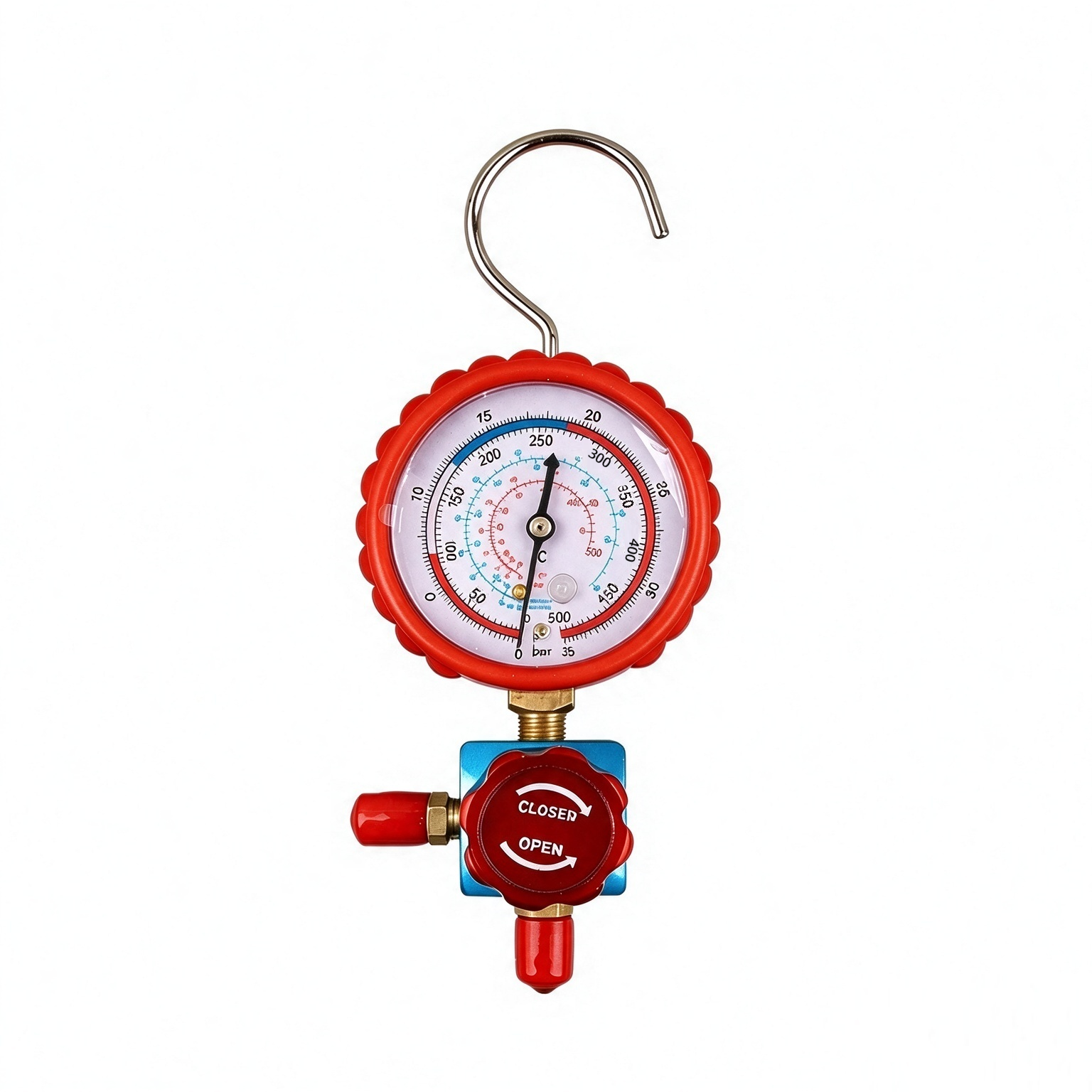

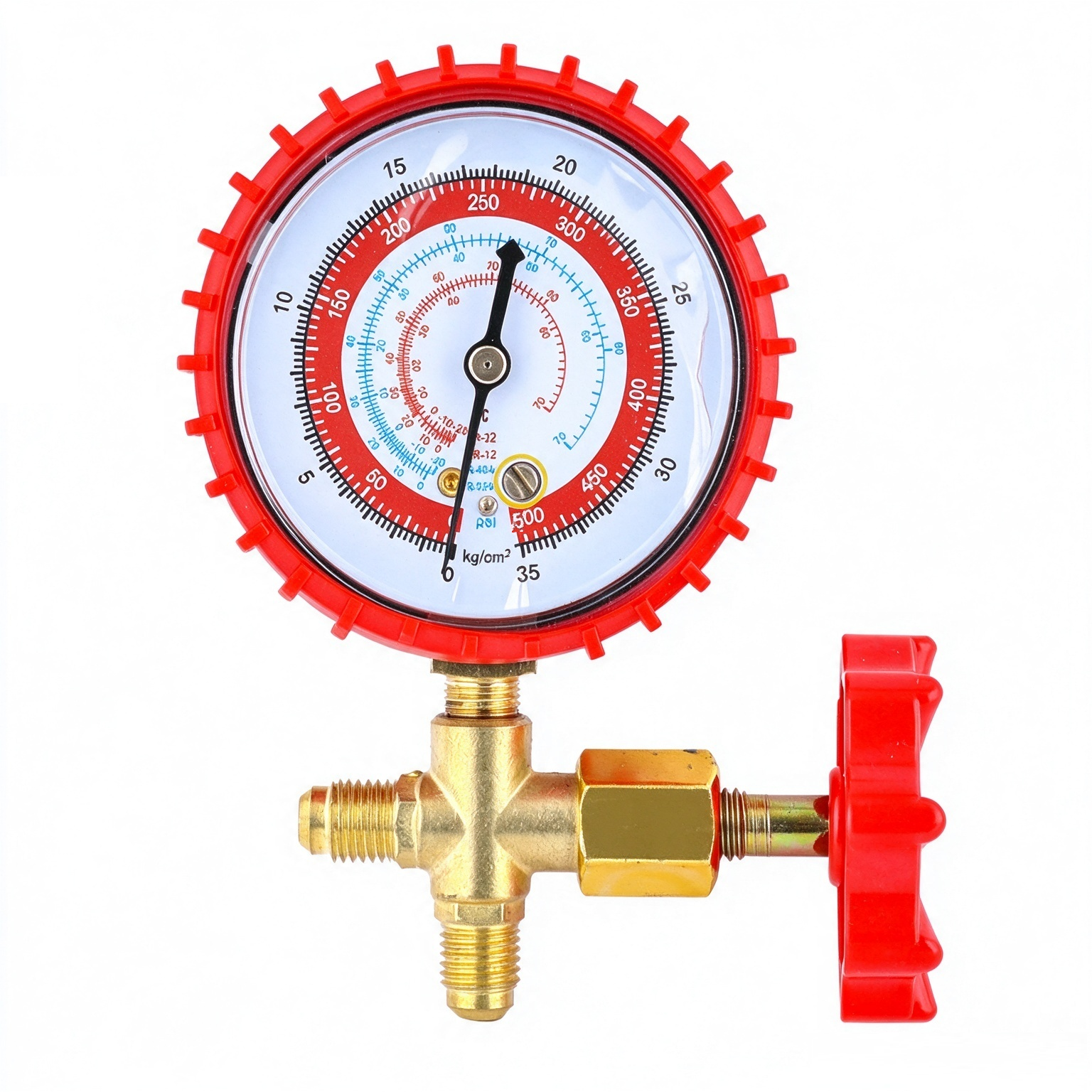

Single manifold pressure gauge designed for refrigeration and AC diagnostics. Choose from forged brass (MF466) or lightweight aluminum alloy (MF467). The MF468 model features an aluminum body with a built-in sight glass for monitoring refrigerant flow. Equipped with a 68mm metric gauge and color-coded valves. Rubber boot protection optional.
| Parameter | Details |
|---|---|
| Model Variants | MF466-L/H (Brass), MF467-L/H (Aluminum), MF468-L/H (Aluminum + Sight Glass) |
| Body Material | Forged Brass / Aluminum Alloy |
| Gauge Size | 68mm Metric |
| Sight Glass | Optional (Available on MF468 models) |
| Color Coding | Red (High Pressure) / Blue (Low Pressure) |
| Connection | Standard 1/4″ SAE |
| Rubber Boot | Optional |
| Application | HVAC/R system charging, testing, and quick pressure checks |
Material Options for Every Budget – Choose heavy-duty forged brass for maximum durability, or lightweight aluminum for easier handling on the job site.

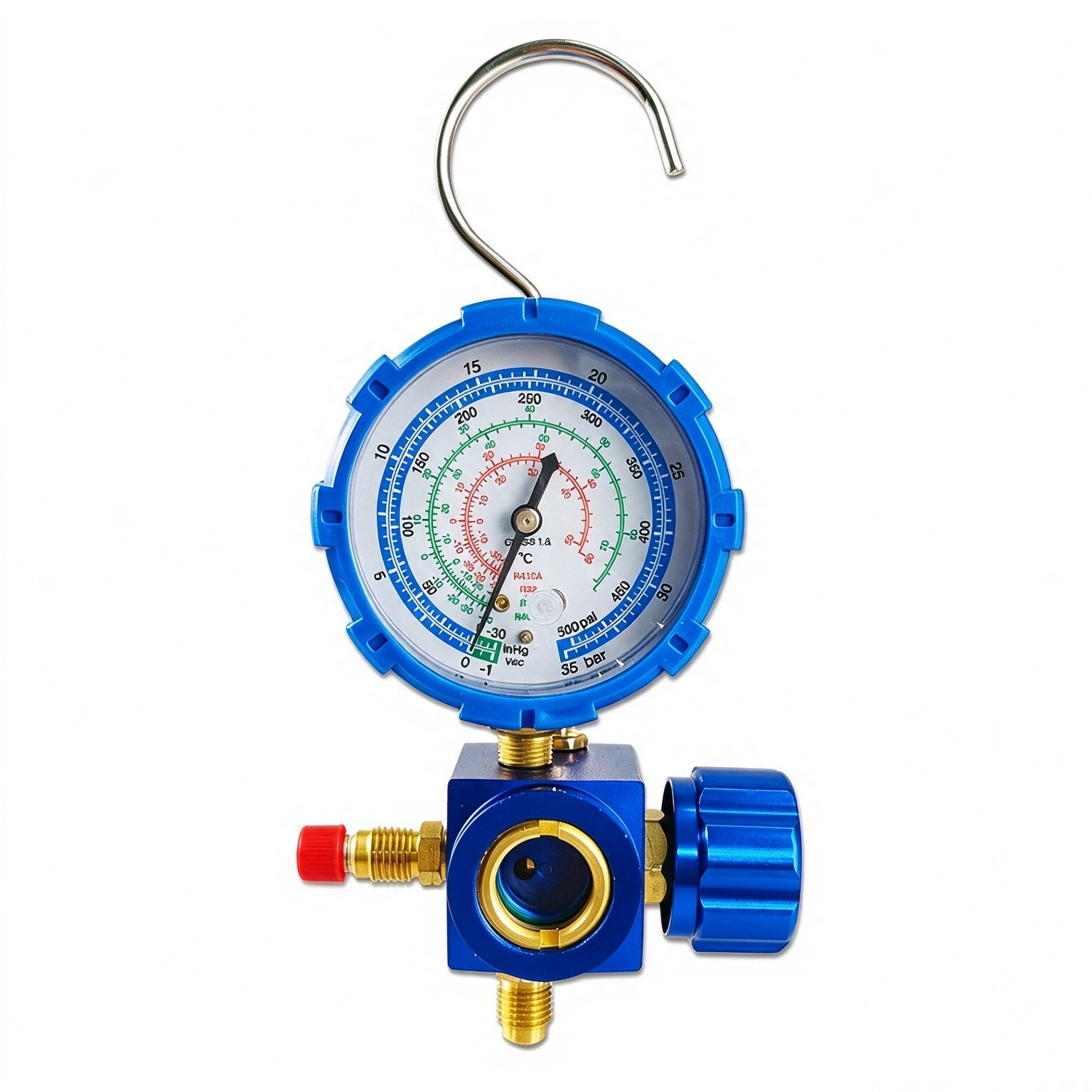

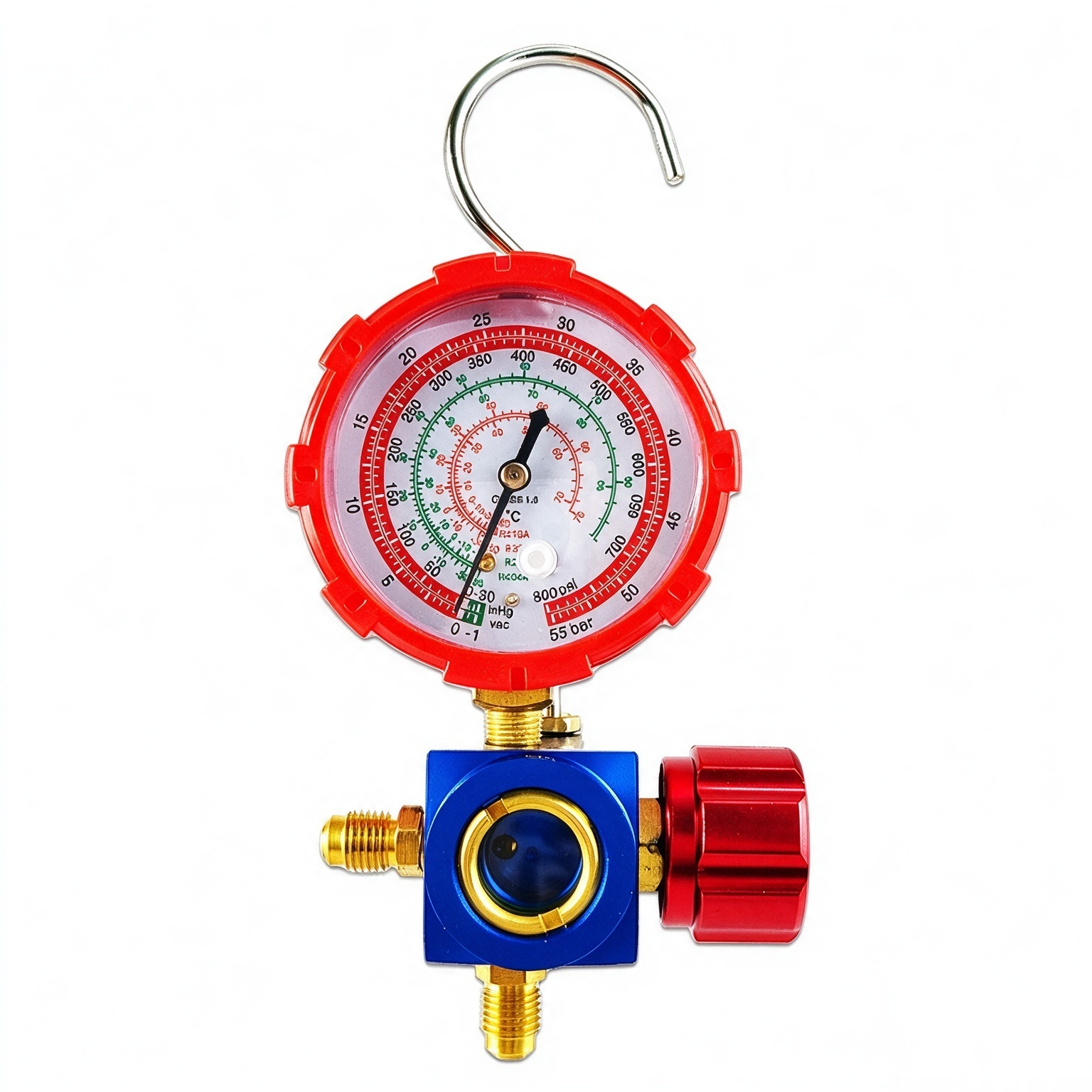

Sight Glass Feature (MF468) – The MF468 model includes a built-in sight glass. Allows technicians to quickly monitor refrigerant flow and moisture condition during charging.

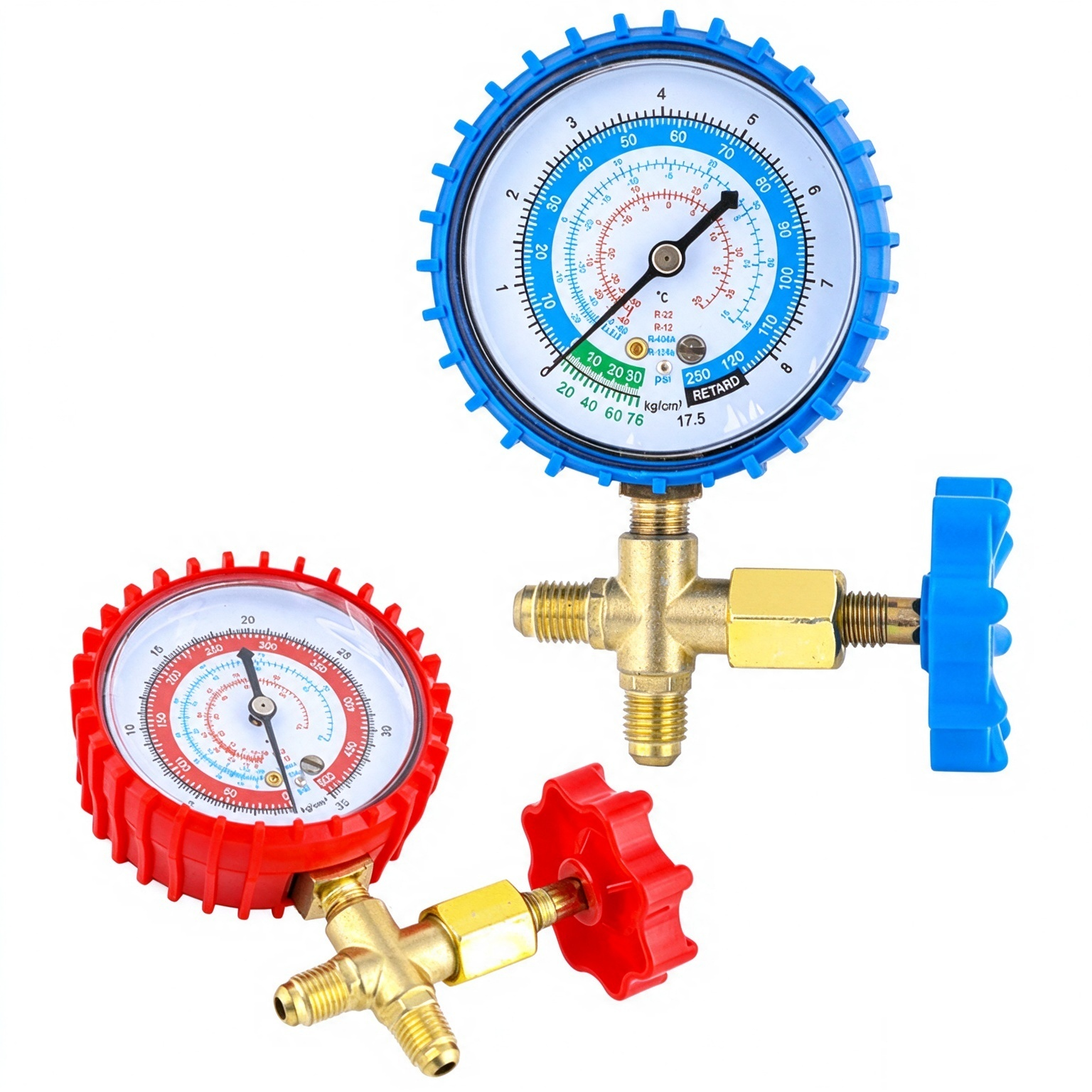

Clear 68mm Metric Gauges – Large, easy-to-read dials with color-coded red (high) and blue (low) indicators. Ensures accurate system readings.
Compact Single-Gauge Design – Perfect for quick pressure checks and tight spaces where a full two-valve manifold is too bulky.
Impact Protection Option – Optional rubber boots protect the gauge from drops and harsh working environments.
For technical datasheets, samples, or bulk pricing, contact us directly.
