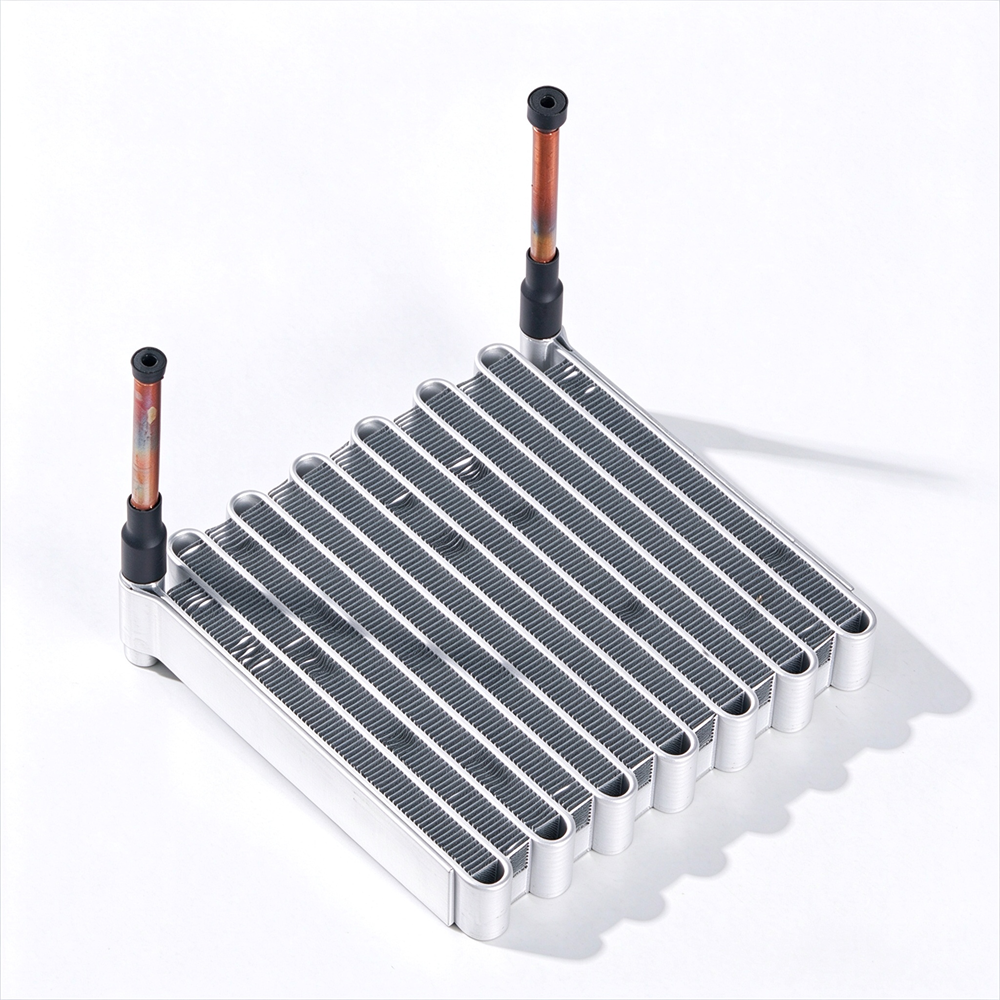

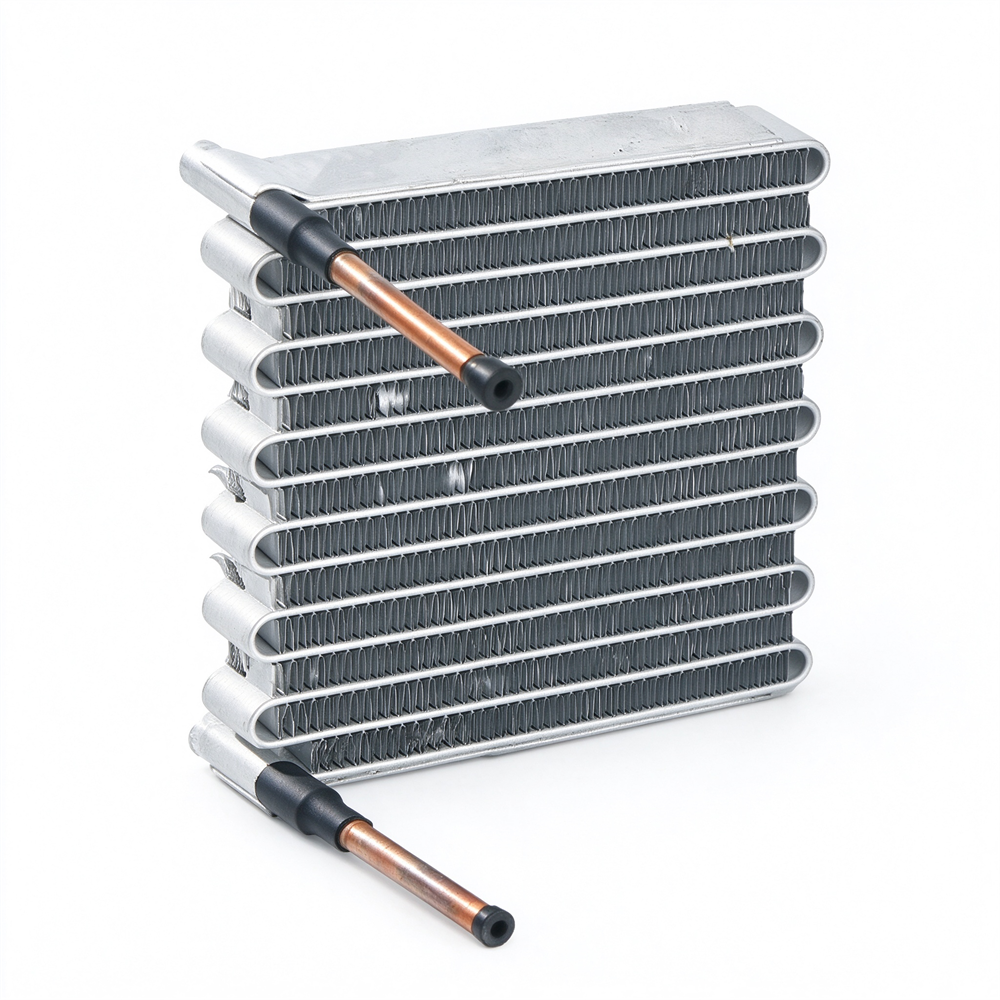

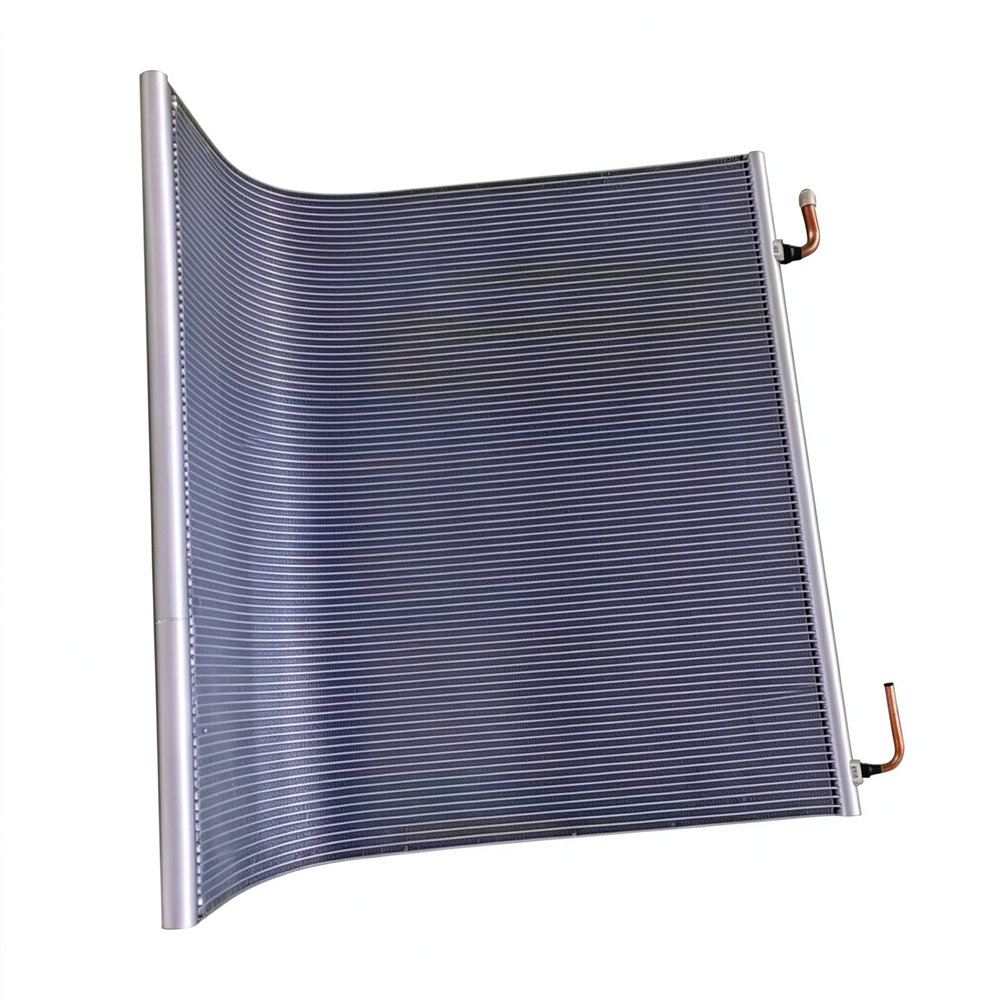

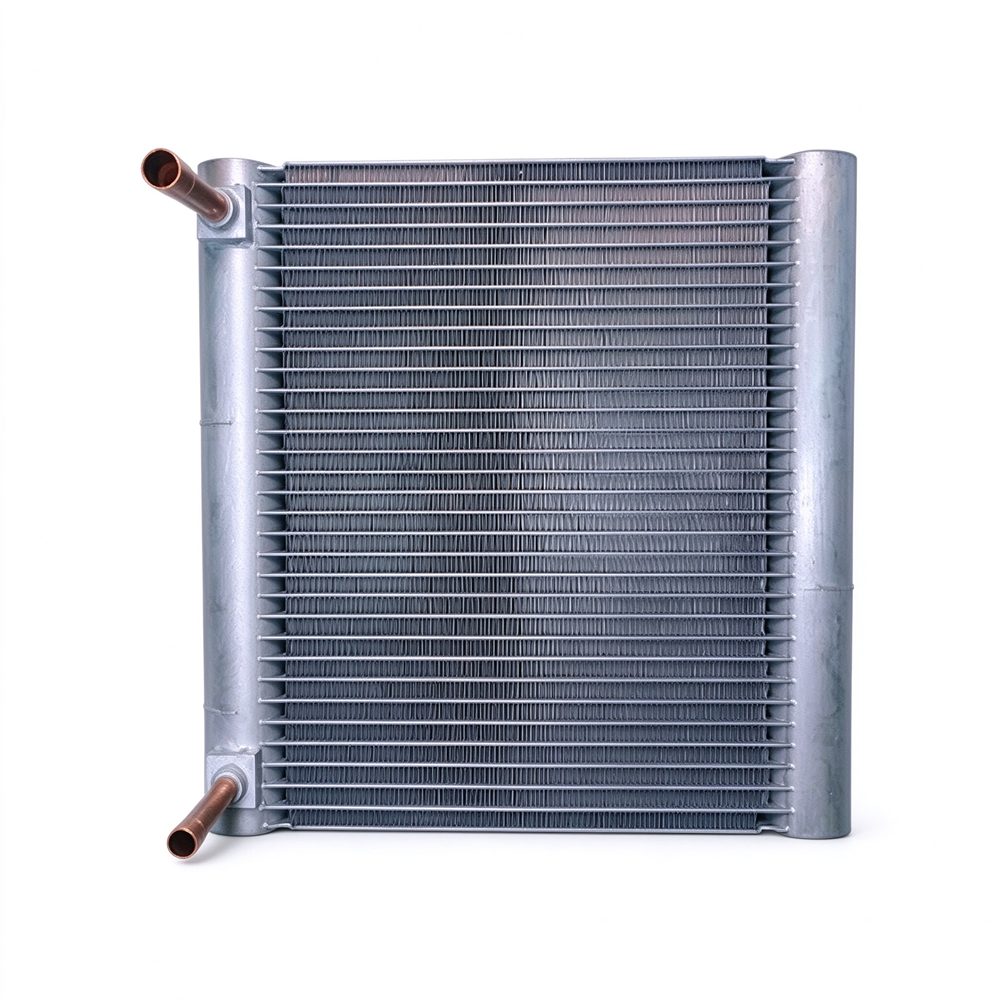

Custom microchannel condensers for refrigerator & freezer production. All-aluminum brazed construction,30% higher heat transfer efficiency, compact design. Send your drawing for free evaluation.
Parallel-flow flat tube design delivers, 50% less refrigerant charge than conventional fin-tube coils. Design pressure 4.5 MPa, operating temperature -40°C to 121°C. Compatible with R410A, R134a, R454B, R1234yf. Custom coil sizes available. OEM support.
| Parameter | Details |
|---|---|
| Product Type | Microchannel Condenser (Parallel Flow) |
| Tube Material | All-aluminum microchannel flat tube |
| Fin Material | Aluminum louvered fin |
| Construction | CAB brazed (Controlled Atmosphere Brazing) |
| Flat Tube Width | 16mm–32mm (MPE multi-port extruded) |
| Fin Height | 7.8–8.2mm |
| Fin Pitch | 2.4–3.0mm |
| FPI (Fins Per Inch) | 16 (standard), customizable |
| Design Pressure | 4.5 MPa (45 bar) |
| Burst Pressure | Up to 13.5 MPa |
| Test Pressure | 50 bar |
| Operating Temperature (Refrigerant Side) | -40°C to +121°C |
| Operating Temperature (Ambient) | -40°C to +72°C |
| Compatible Refrigerants | R410A, R134a, R404A, R507A, R407C, R454B, R1234yf, R290, R32 |
| Coating Option | E-coat (epoxy electrophoretic) for anti-corrosion |
| Connection Type | Copper/aluminum stub tube, or as per drawing |
High Heat Transfer Efficiency – Parallel-flow microchannel design delivers 30% higher heat transfer efficiency and 30% lower air-side pressure drop than conventional coils.
Compact & Lightweight – All-aluminum construction reduces weight and footprint, enabling more compact system designs and easier installation.
Corrosion-Resistant E-Coat Option – Electrophoretic epoxy coating evenly covers all exposed coil surfaces, providing long-term protection in humid or coastal environments.
Strict Leak Testing – Each coil undergoes pressure testing before shipment, ensuring mechanical resistance and long service life.
Custom Engineering Support – Send us your drawing or specifications; our technical team provides coil design support for optimal system integration.
Send your drawing or specifications for a free technical evaluation and quotation within 24 hours.
