PSC blower motors for residential air conditioners, air handlers & furnaces. 1/4–1 HP, 1075 RPM, 208–230V, 3-speed. Direct drive, reversible rotation. Bulk pricing & OEM.

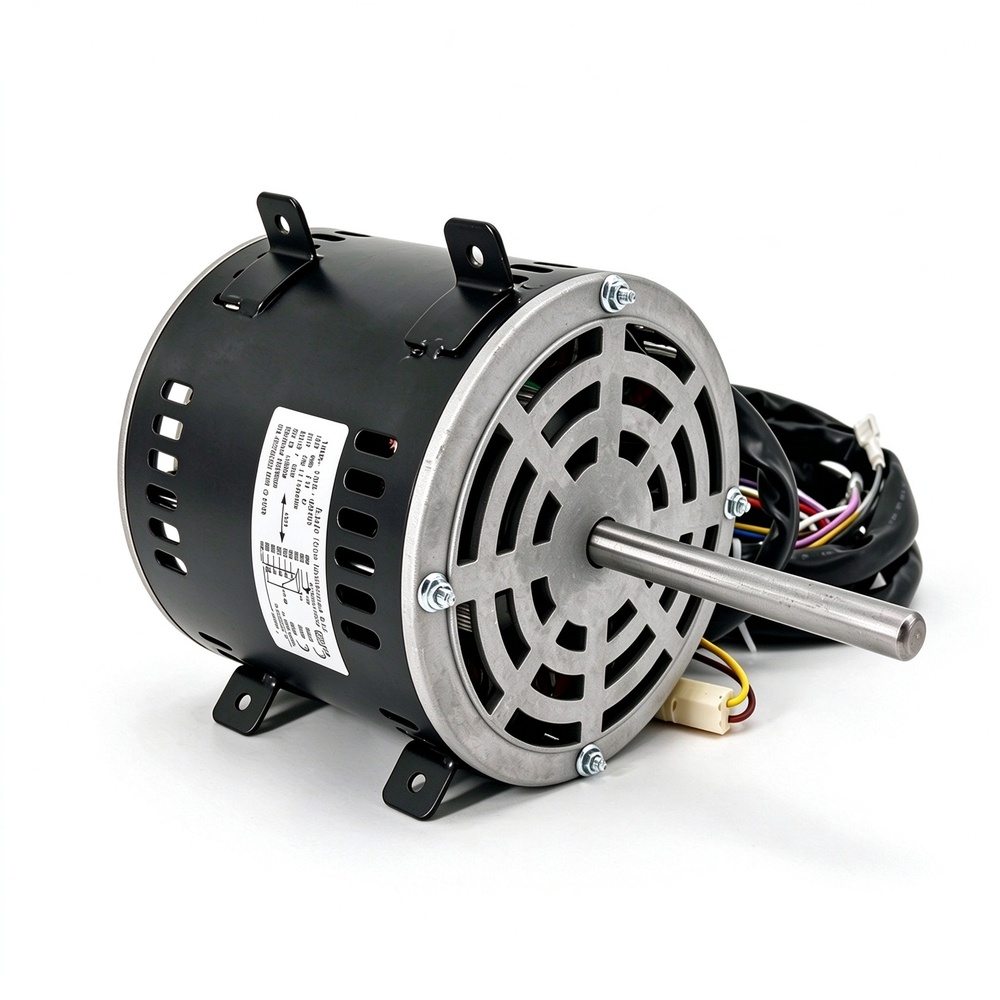

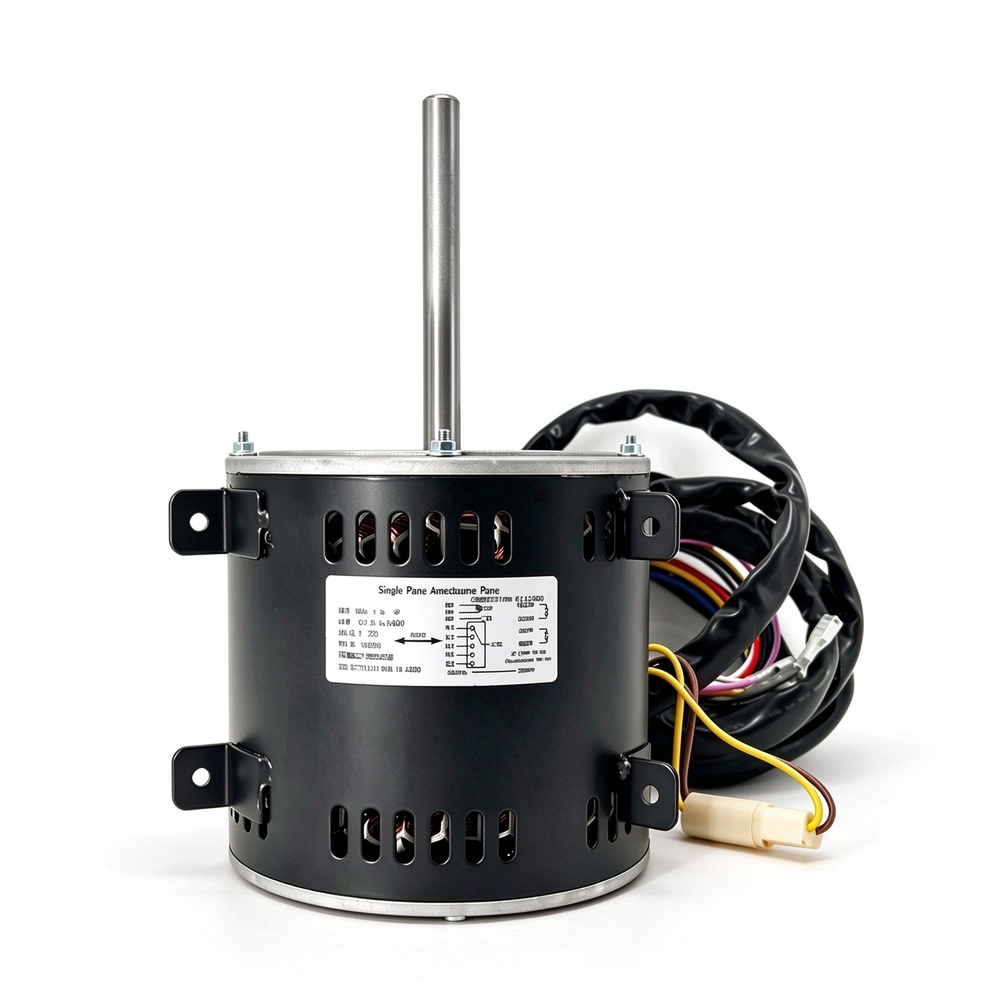

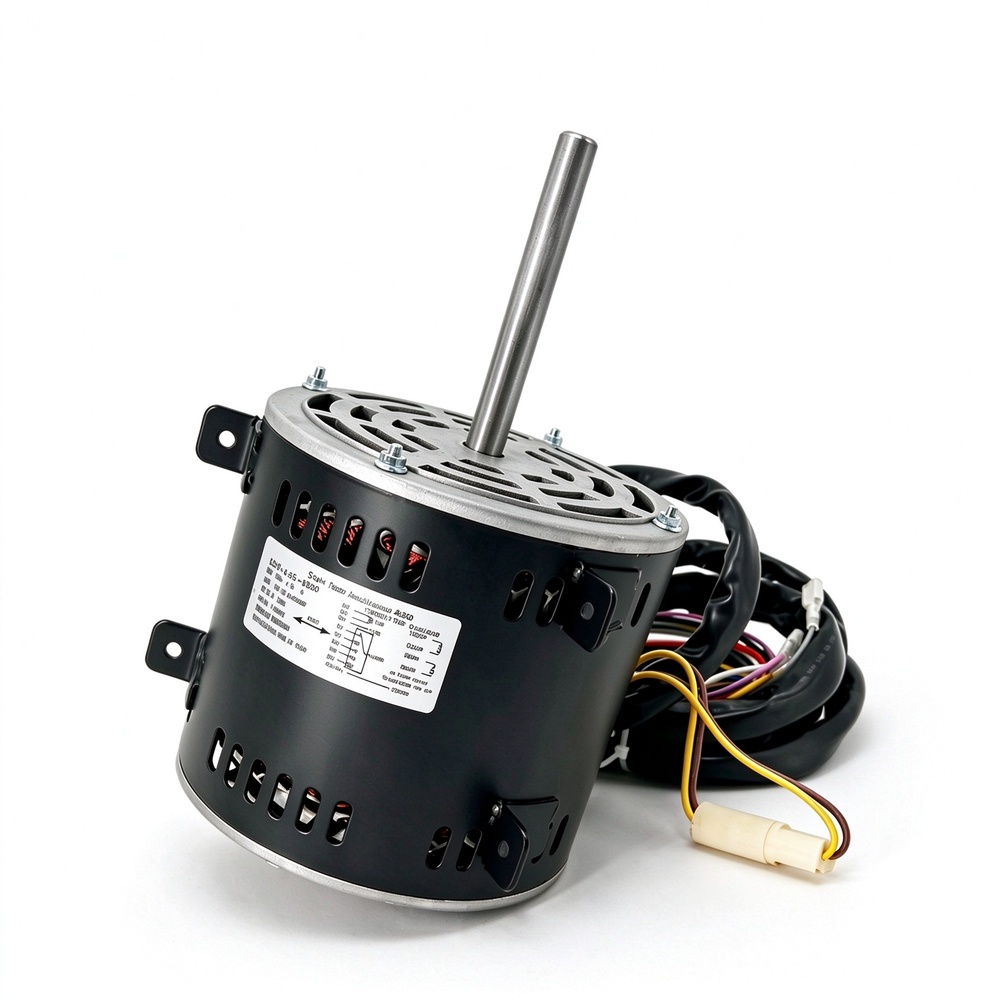

PSC blower motor for residential air conditioners, air handlers and furnaces. Permanent split capacitor design, no start relay required. 1/4–1 HP, 1075 RPM, 208–230V, 3-speed. 48Y NEMA frame. Reversible rotation. Run capacitor required. OEM & ODM available. Bulk pricing on request.
| Parameter | Details |
|---|---|
| Product Type | PSC Blower Motor (Permanent Split Capacitor) |
| Motor Type | Single-phase AC induction, PSC |
| Horsepower Range | 1/4 HP – 1 HP |
| Speed | 1075 RPM (also 825/1550 RPM available) |
| Speed Taps | 3-speed / 4-speed |
| Voltage | 115V / 208–230V AC |
| Frequency | 50/60 Hz |
| NEMA Frame | 48Y (also 42Y / 48Z available) |
| Rotation | Reversible (CW/CCW) |
| Bearing Type | Sleeve bearing / Ball bearing |
| Insulation Class | Class B (130°C) / Class F (155°C) |
| Run Capacitor | Required (5–15 μF, 370V/440V) |
| Shaft Diameter | 1/2″ (12.7mm) standard |

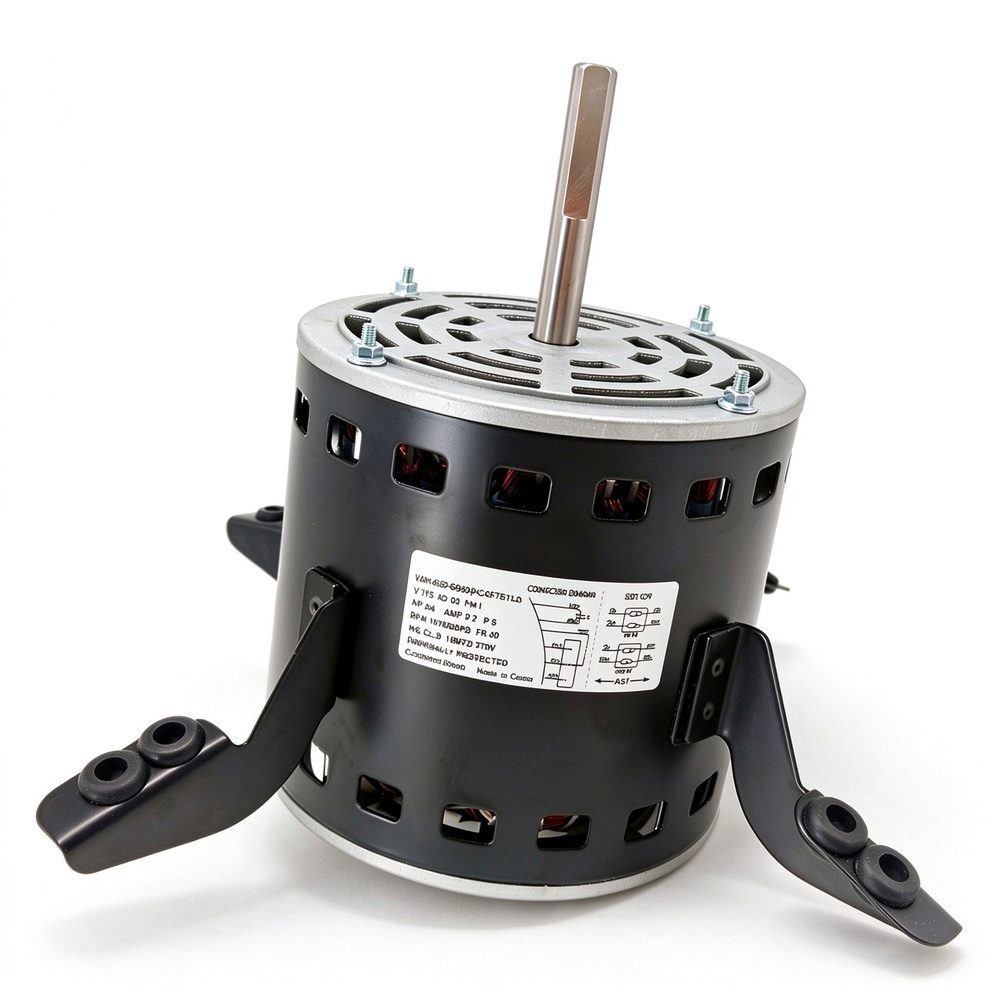

| Mounting | Resilient ring / Belly band / Stud mount |
| Operating Temperature | -30°C to +60°C |
| Compatible Applications | Air handler, furnace, fan coil, condenser fan |
High Cost-Performance Ratio – More efficient than shaded pole motors, more affordable than EC motors. Ideal balance for cost-sensitive HVAC applications.
No Start Relay Required – Permanent split capacitor design eliminates start relay and centrifugal switch. Simplifies wiring and reduces component count.
Multi-Speed Flexibility – 3-speed and 4-speed taps allow airflow adjustment to match different system requirements. One motor covers multiple speed settings.
Direct Drive Design – Mounts directly to blower wheel without belts or pulleys. Reduces maintenance and improves reliability.
Wide HP Range – 1/4 HP to 1 HP covers residential AC, air handler and light commercial HVAC. Reduces SKU count for distributors.
Reversible Rotation – CW/CCW reversible design fits both clockwise and counterclockwise blower applications. Simplifies inventory management.
Stable Bulk Supply – Standard models ship in 15–25 days. Supports rolling replenishment.
OEM & ODM Support – Custom shaft, mounting, lead length and speed taps available. Produced per customer drawings.
Export Packaging – Seaworthy carton and pallet packaging. Suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (HP, voltage, speed, frame size) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
