QD-U05PGC+ universal control board for wall-mounted split ACs. 5 working modes, 3 fan speeds, anti-cold draft, auto defrost. 220V, transformer output 13.5V. Includes remote, display, sensors & transformer. OEM available.
QD-U05PGC+ universal ON-OFF AC control board kit for wall-mounted split air conditioners. Supports 5 working modes (auto, cool, dry, fan, heat) and 3 fan speeds. Features anti-cold draft, timer ON/OFF, and auto defrost. Transformer input 220V 50/60Hz, output 13.5V 0.25A. Includes remote, display, sensor, and transformer.
| Parameter | Details |
|---|---|
| Model | QD-U05PGC+ Universal ON-OFF Control Board |
| Product Type | Wall-Mounted Split AC Control Board |
| Working Modes | Auto / Cool / Dry / Fan / Heat (5 Modes) |
| Fan Speeds | 3 levels (Low / Medium / High) + Auto Fan |
| Temperature Range | 16°C – 30°C |
| Input Voltage | 220V AC, 50/60Hz |
| Transformer Output | 13.5V, 0.25A |
| Key Functions | Anti-cold draft, timer ON/OFF, auto defrost |
| Compatibility | Universal replacement for conventional ON-OFF split ACs (Not for inverter ACs) |

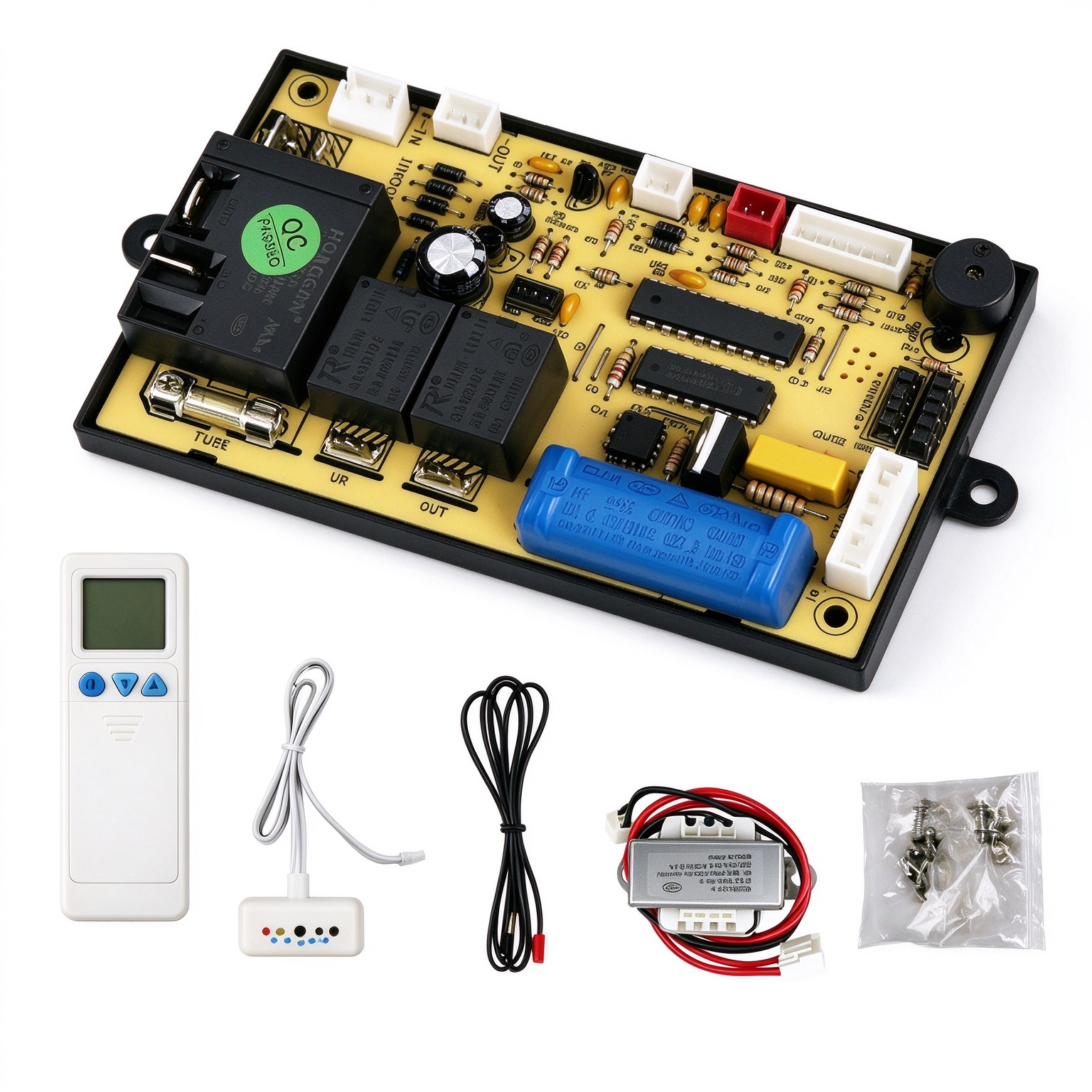

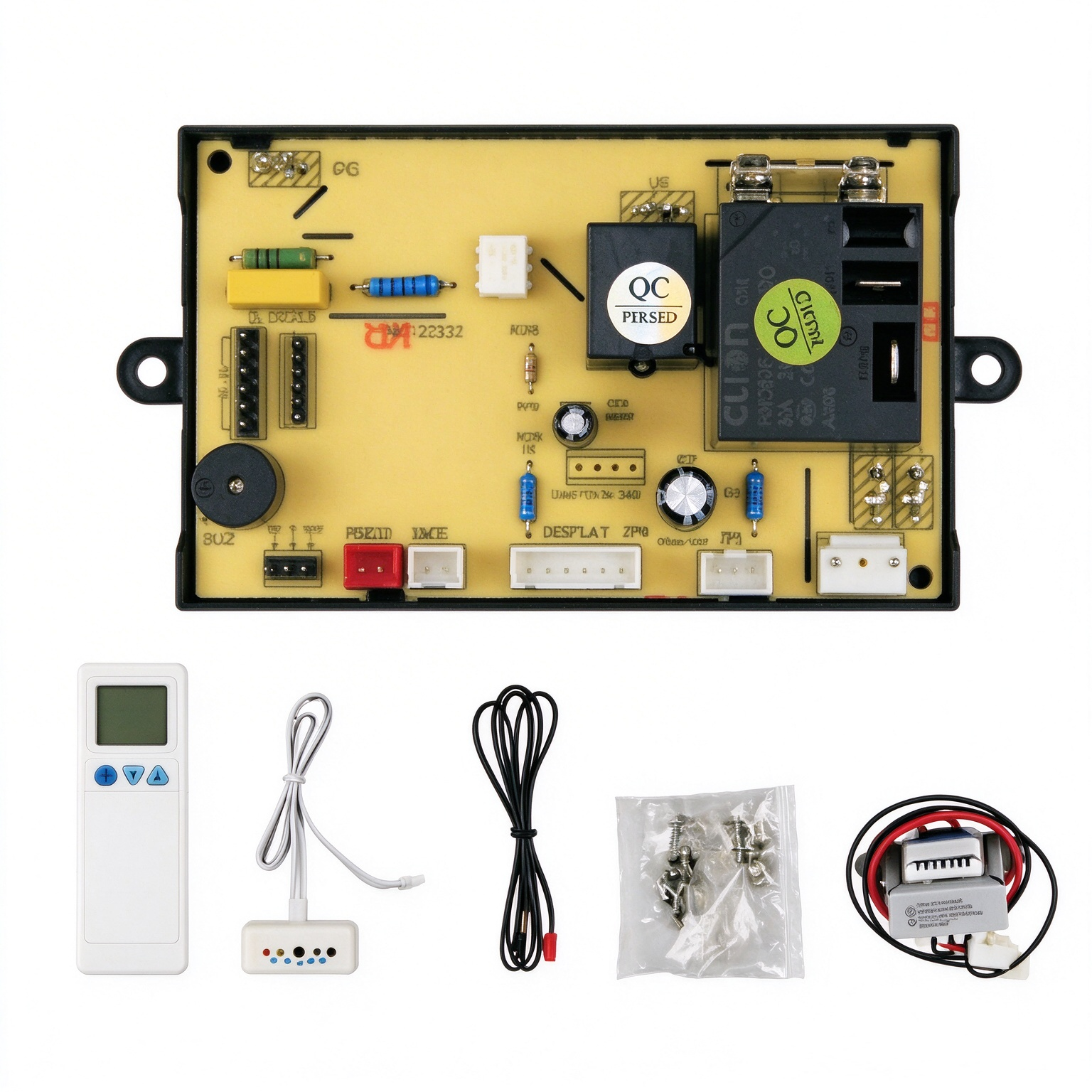

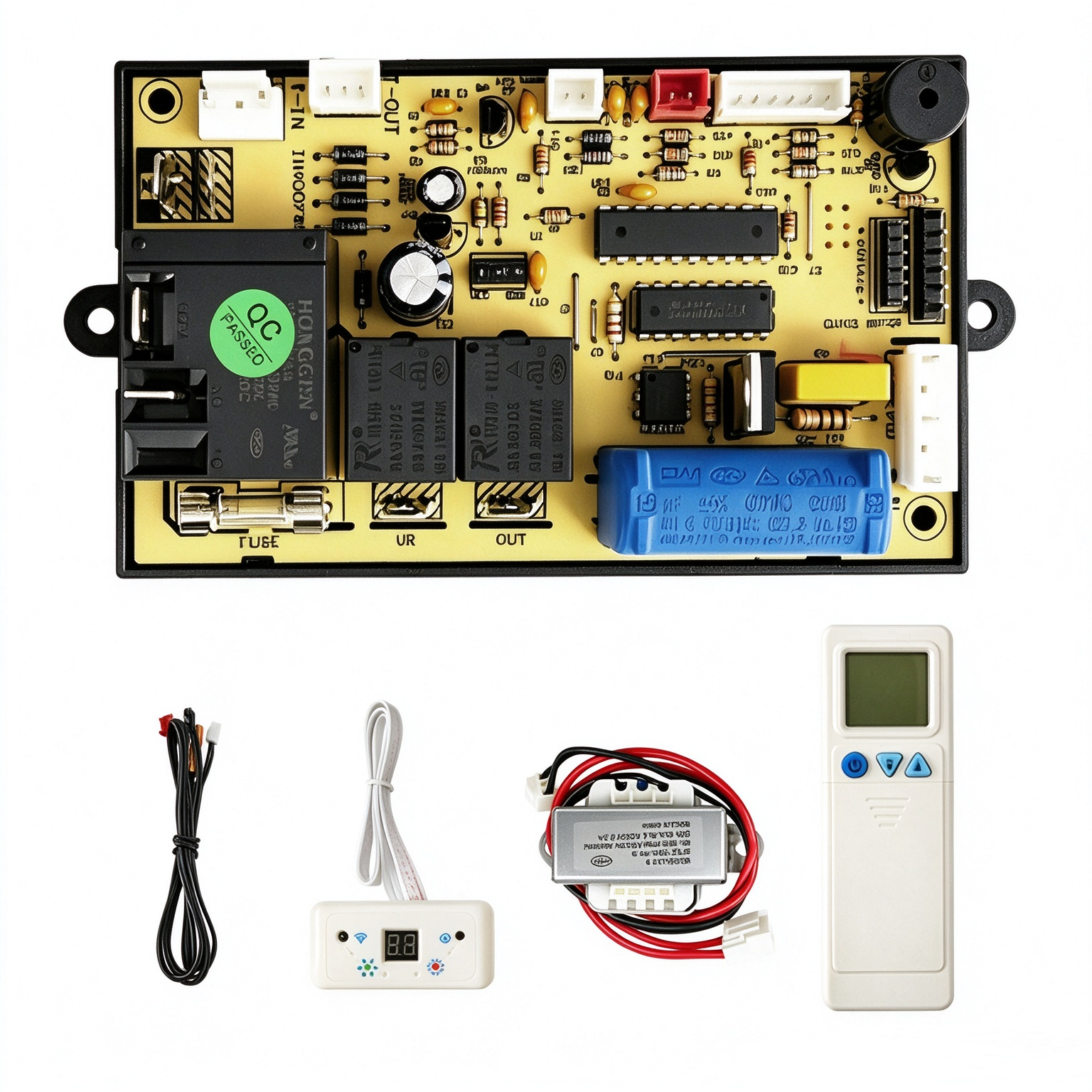

| Included Components | Control board, remote, display board, sensor (×1), transformer |
| Operating Temperature | -10°C to +55°C |
Universal ON-OFF Replacement – Fits most conventional wall-mounted split ACs. One board covers multiple repair needs.
5 Working Modes & 3 Fan Speeds – Supports Auto, Cool, Dry, Fan, and Heat with Low/Medium/High fan control. Delivers full functional coverage.
Anti-Cold Draft in Heating – Delays fan operation during heating startup. Prevents uncomfortable cold airflow for end users.
Auto Defrost Function – Automatically removes frost from the outdoor unit. Ensures efficient heating in low temperatures.
Timer ON/OFF – Allows scheduled startup and shutdown. Improves user convenience and energy management.
Integrated CBB Capacitor – Equipped with a high-quality film capacitor on the board. Ensures stable power supply and longer component life.
Complete Kit Included – Comes with remote, display, sensor, and transformer. Saves buyers the hassle of sourcing separate parts.
Clear Inverter Distinction – Specifically designed for ON-OFF split ACs, not inverter systems. Reduces mis-purchase and returns for B2B buyers.
OEM & ODM Support – Custom logo, packaging, and firmware available. Produced per customer specifications.
Export Packaging – Seaworthy carton and pallet packaging. Suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (voltage, quantity) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
