R410A quick coupler adapter for mini split HVAC systems
R410A quick coupler adapter for mini split HVAC systems - 图片 2
R410A quick coupler adapter for mini split HVAC systems - 图片 3
R410A quick coupler adapter for mini split HVAC systems - 图片 4
R410A quick coupler adapter for mini split HVAC systems - 图片 5

R410A quick coupler adapter for mini split HVAC systems

Air conditioner charging port adapter – R410A HVAC,Converts 5/16″ SAE charging/vacuum ports to accept 1/4″ SAE gauge hose sets. Brass construction with swivel tip. PTFE/rubber gaskets prevent leaks. 45° angled and straight options.

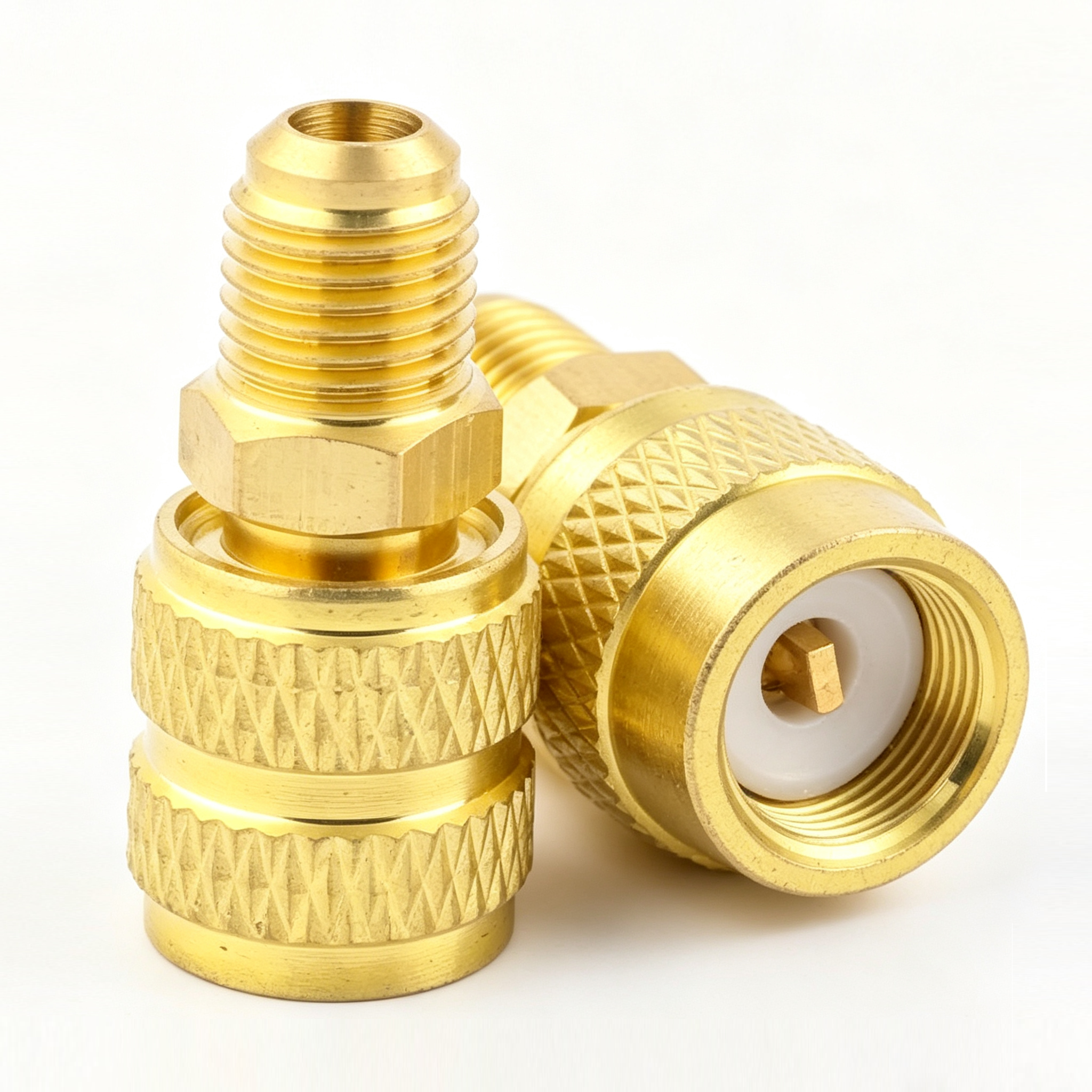

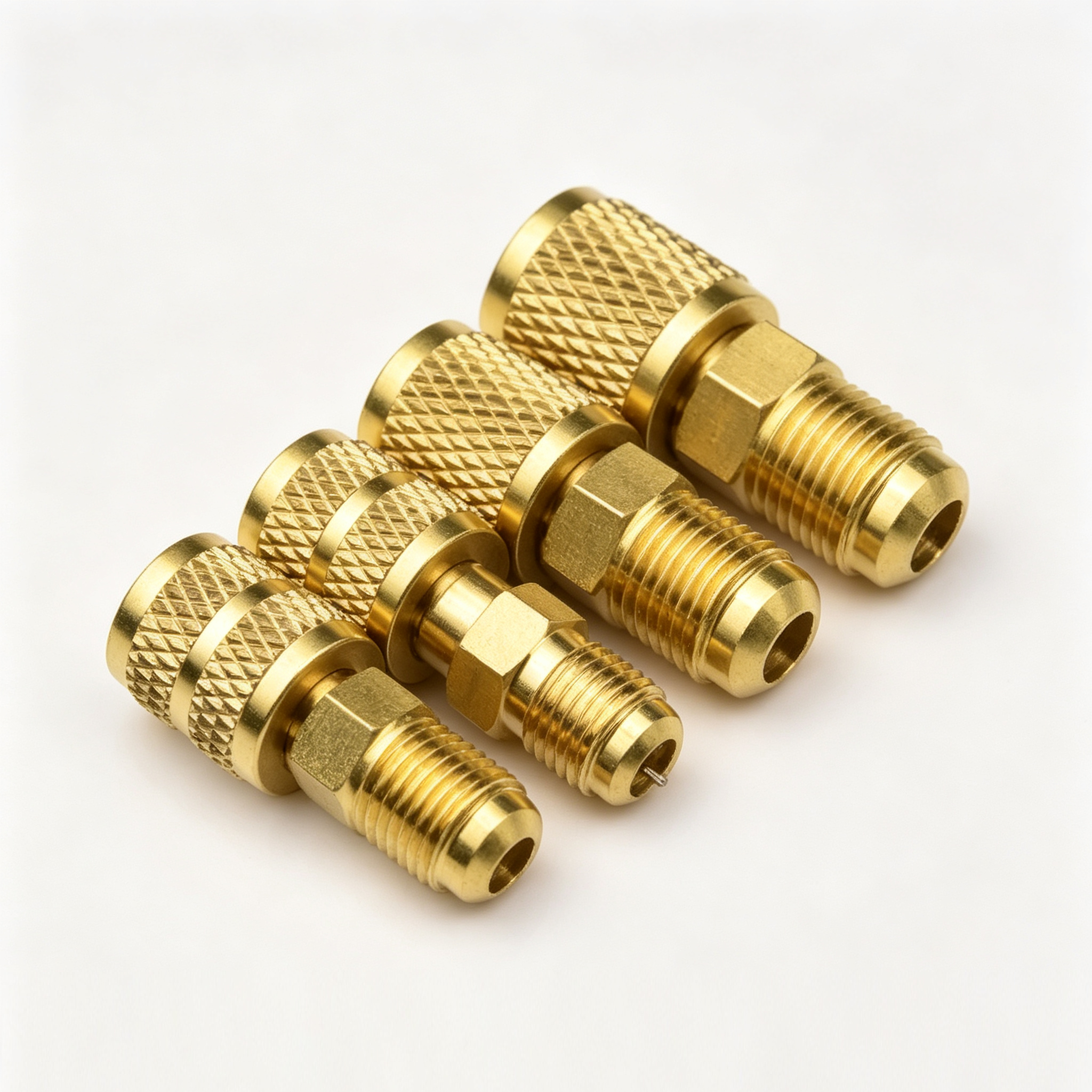

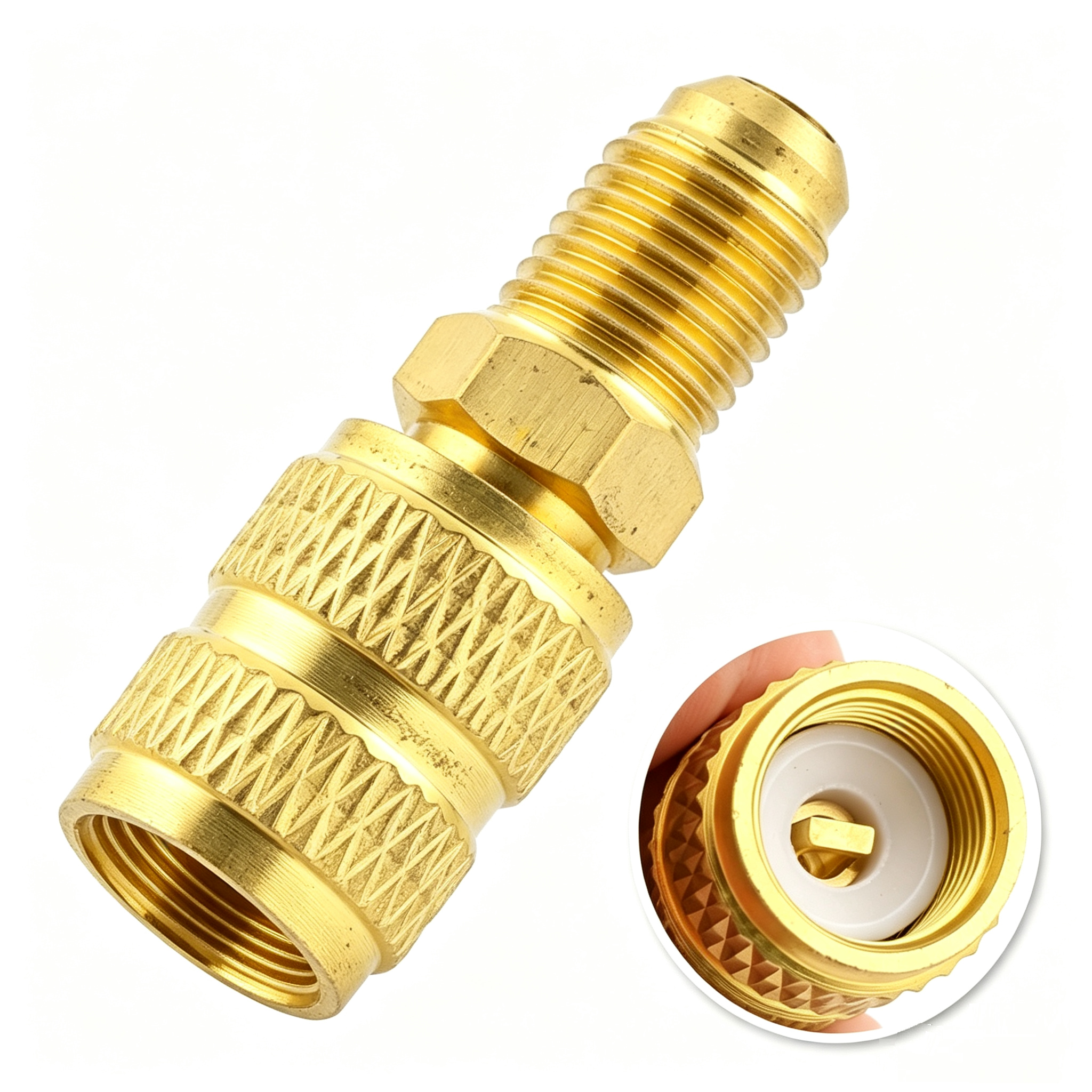

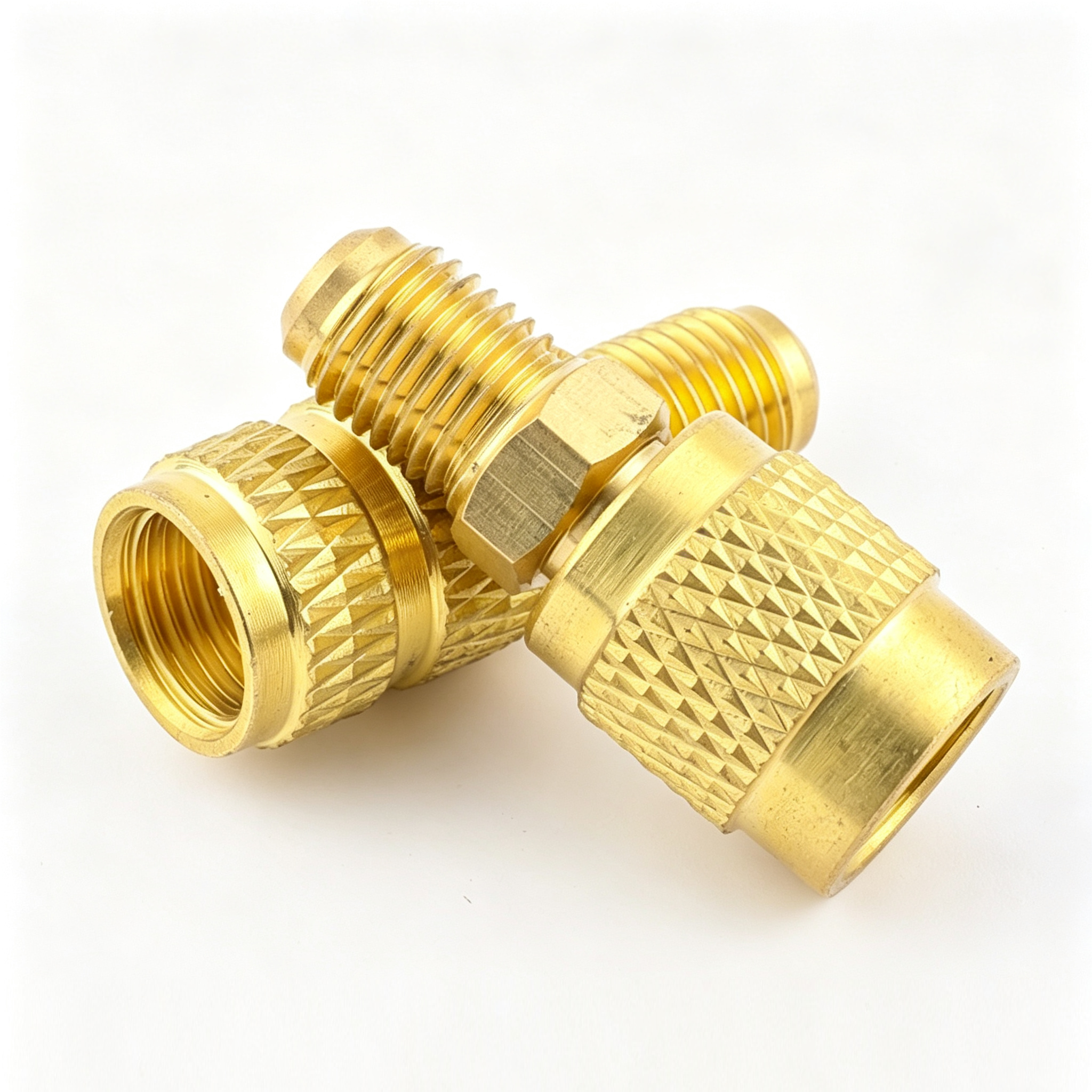

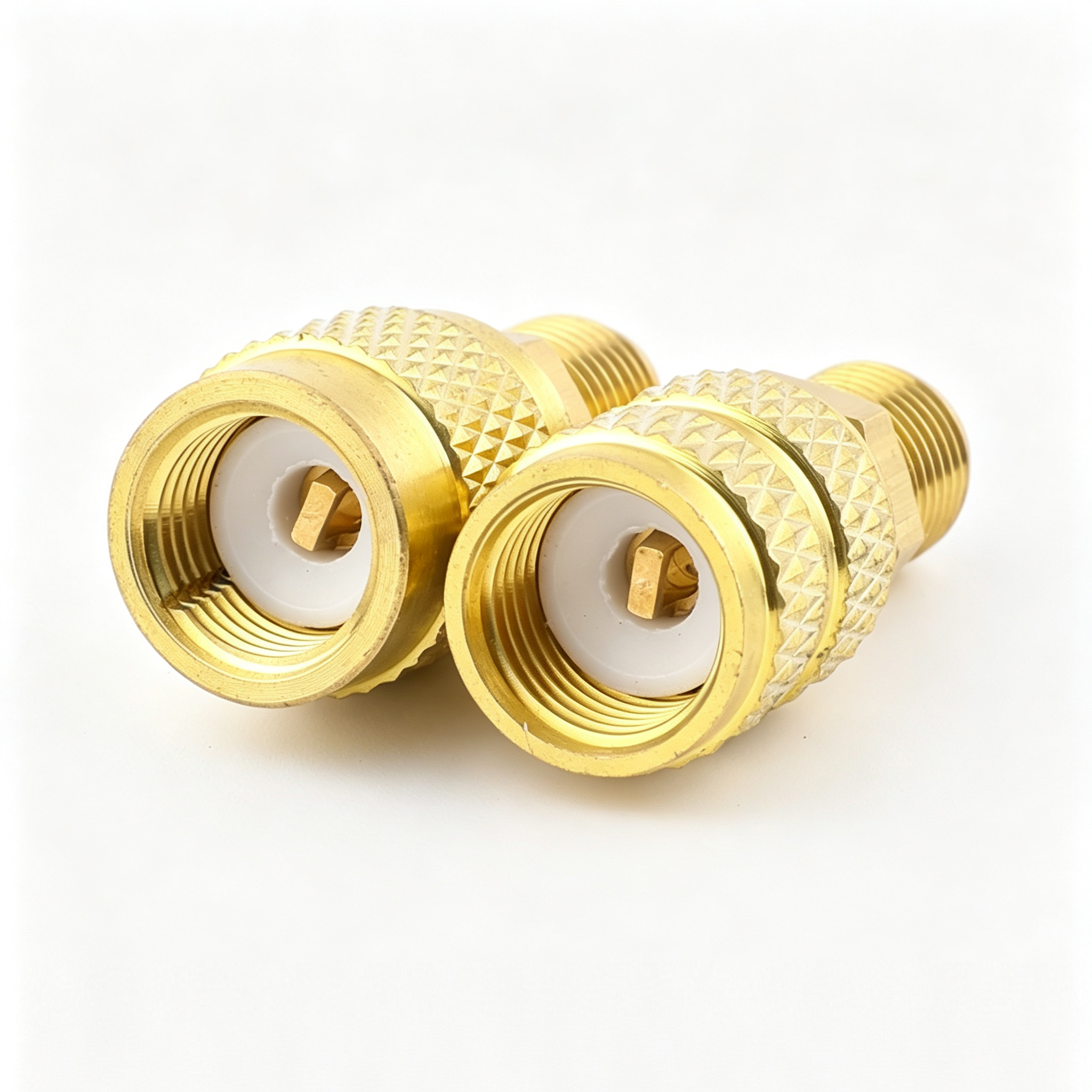

R410A Quick Coupler Adapter – 5/16″ Female to 1/4″ Male Flare

Our R410A Quick Coupler Adapter converts 5/16″ SAE charging and vacuum ports on mini split systems to accept standard 1/4″ SAE gauge hose sets. It solves the compatibility problem between newer R410A equipment and older manifold gauge sets, enabling refrigerant charging, evacuation, and pressure testing without replacing existing tools.

Made of heavy-duty brass with a full swivel tip for easy access in tight spaces. Deeply knurled coupler nuts allow finger-tightening. Available with PTFE and rubber gaskets to ensure a leak-free seal.

Specifications:

Parameter Details
Material Brass
Connection 5/16″ SAE Female Quick Coupler × 1/4″ SAE Male Flare
Angle Options Straight / 45° Angled
Swivel Full swivel tip
Gasket PTFE / Rubber
Application R410A Mini Split, HVAC, Refrigeration Service

Key Advantages

  • Tool Compatibility – Converts 5/16″ SAE ports to accept standard 1/4″ SAE gauge hoses, eliminating the need to buy new manifold gauges

  • Leak-Proof Sealing – Upgraded PTFE and rubber gaskets prevent refrigerant leakage during charging and evacuation

  • Easy Finger-Tightening – Deeply knurled coupler nuts for a firm grip without tools

  • 45° Angled Option – Allows easier access in tight spaces around the service port

  • Durable Brass – Corrosion-resistant construction with high tensile strength

Applications

  • R410A mini split system refrigerant charging and vacuum

  • HVAC and refrigeration service where 5/16″ to 1/4″ SAE conversion is required

  • Compatible with most newer R410A ductless mini split systems

Customization & Ordering

  • Angle – Straight or 45° angled

  • Gasket – PTFE or rubber, custom options available

  • Packaging – Individual bag, bulk carton, or custom labeled

  • Lead Time – 7–15 days

  • MOQ – Flexible; samples available

Get a Quote

For datasheets, samples, or bulk pricing, contact us directly.
