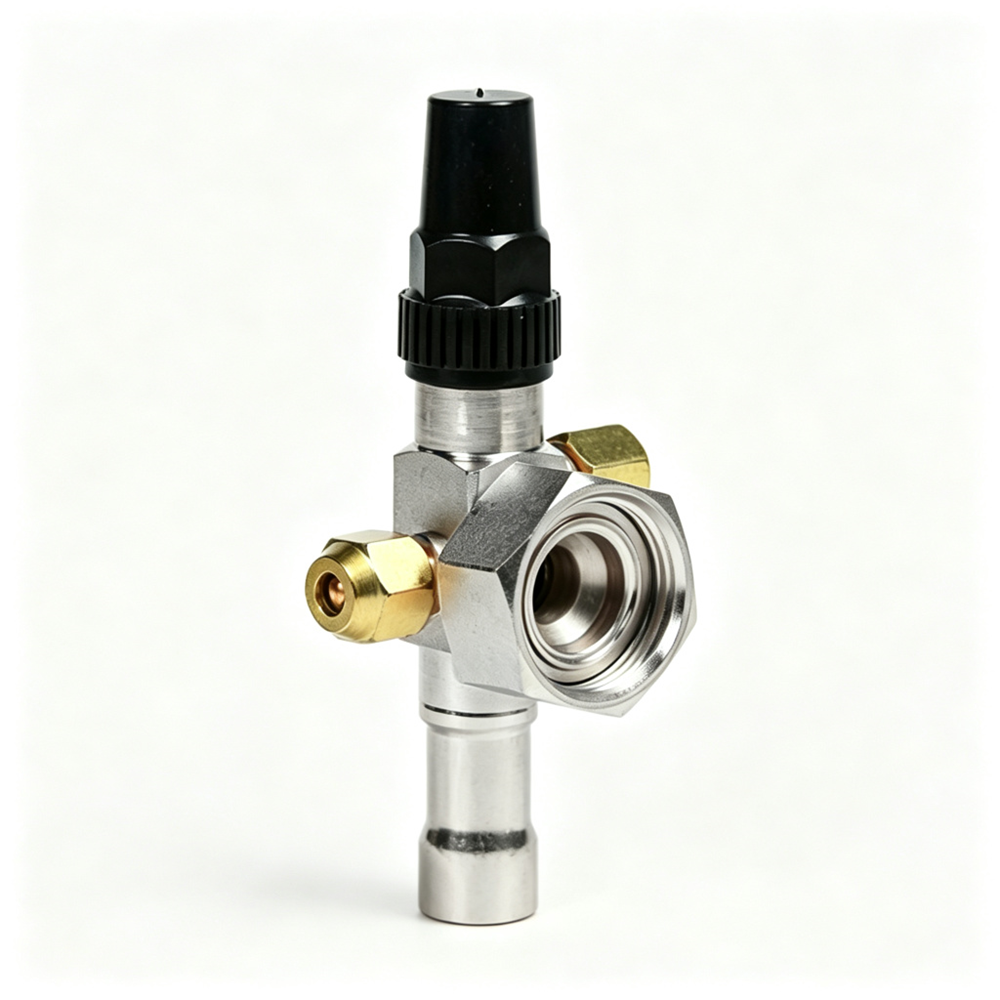

Rotalock Angle Valve for Refrigeration Compressor
Rotalock Angle Valve for Refrigeration Compressor - 图片 2
Rotalock Angle Valve for Refrigeration Compressor - 图片 3
Rotalock Angle Valve for Refrigeration Compressor - 图片 4
Rotalock Angle Valve for Refrigeration Compressor - 图片 5

Rotalock Angle Valve for Refrigeration Compressor

Rotalock angle valve for refrigerator & freezer compressor. 90° space-saving design. 3.0MPa working, 4.5MPa hydraulic. 3/8″–1-3/8″,R410A, R22, R134a.

Rotalock Angle Valve for Refrigeration Compressor

Rotalock angle service valve for space-saving compressor piping. 90° brass body, Rotalock thread × ODF/flare, 3.0 MPa working pressure, 4.5 MPa hydraulic test. Compatible with R22, R404A, R134a, R410A. UL listed. OEM branding available.

Specifications:

Parameter Details
Product Type Rotalock Angle Valve (90° Type)
Body Material Brass / Steel (optional)
Connection Type Rotalock threaded × Solder (ODF) / Flare
Rotalock Thread Size 1″-14 UNS, 1-1/4″-12 UNF, 1-3/4″-12 UNC (custom)
Solder Connection Size 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1-1/8″, 1-3/8″ ODF
Working Pressure 3.0 MPa (30 bar)
Hydraulic Test Pressure 4.5 MPa (45 bar)
Tight Test Pressure 3.3 MPa (33 bar)
Service Temperature -40°C to +150°C
Suitable Refrigerants R22, R404A, R134a, R507, R407C, R448A, R449A

Key Advantages:

  • 90° Angle Design Saves Space – In compact refrigeration units and limited installation spaces, the angle design reduces piping layout complexity and lowers installation labor hours.
  • Reliable High-Pressure Sealing – Working pressure 3.0 MPa, hydraulic test 4.5 MPa, meeting R410A high-pressure system requirements.
  • Precision-Machined Valve Body – Brass body precisely machined to ensure tight leak-free sealing and long-term smooth operation.
  • Wide Temperature Range – -40°C to +150°C, suitable for refrigerators, freezers, and commercial refrigeration equipment.
  • OEM Branding Support – Custom logo and brand printing available; packaging can be customized to channel requirements.
  • One-Stop Multi-Spec Supply – Rotalock thread from 1″ to 1-3/4″, solder connection from 3/8″ to 1-3/8″ – all covered in one order.
  • Compatible with Major Brands – Fits Copeland, Bitzer, Danfoss, Tecumseh compressor models.

Customization & Ordering:

  • Rotalock Thread Size – 1″-14 UNS to 1-3/4″-12 UNC, customizable

  • Solder/Flare Connection – 3/8″ to 1-3/8″ ODF, or as per request

  • Body Material – Brass or steel, customizable

  • Angle Direction – Left or right angle, customizable

  • Printing – Custom logo and branding available

  • Packaging – Carton boxes or wooden pallets

  • Lead Time – 10–20 days for standard sizes

  • Samples – Available upon request

  • MOQ – Negotiable

Get a Quote:

For technical datasheets, samples, or bulk pricing, contact us directly.
