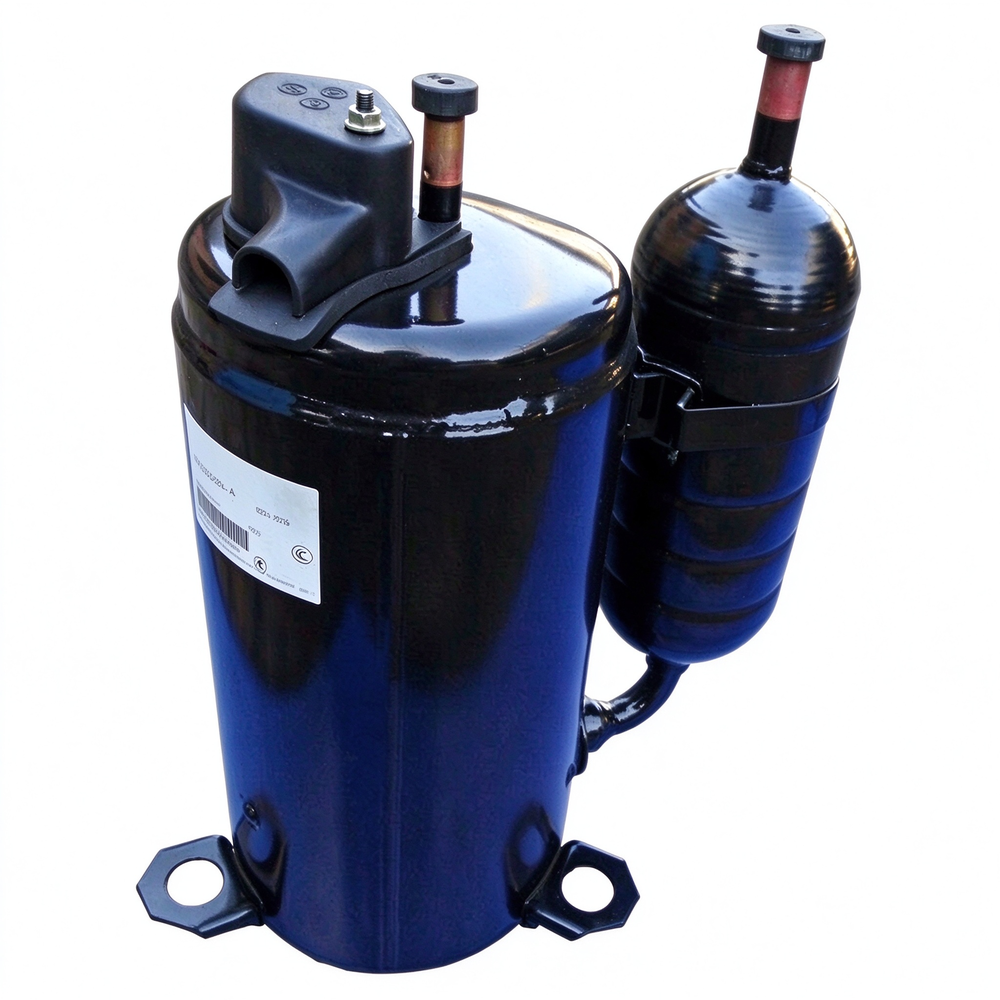

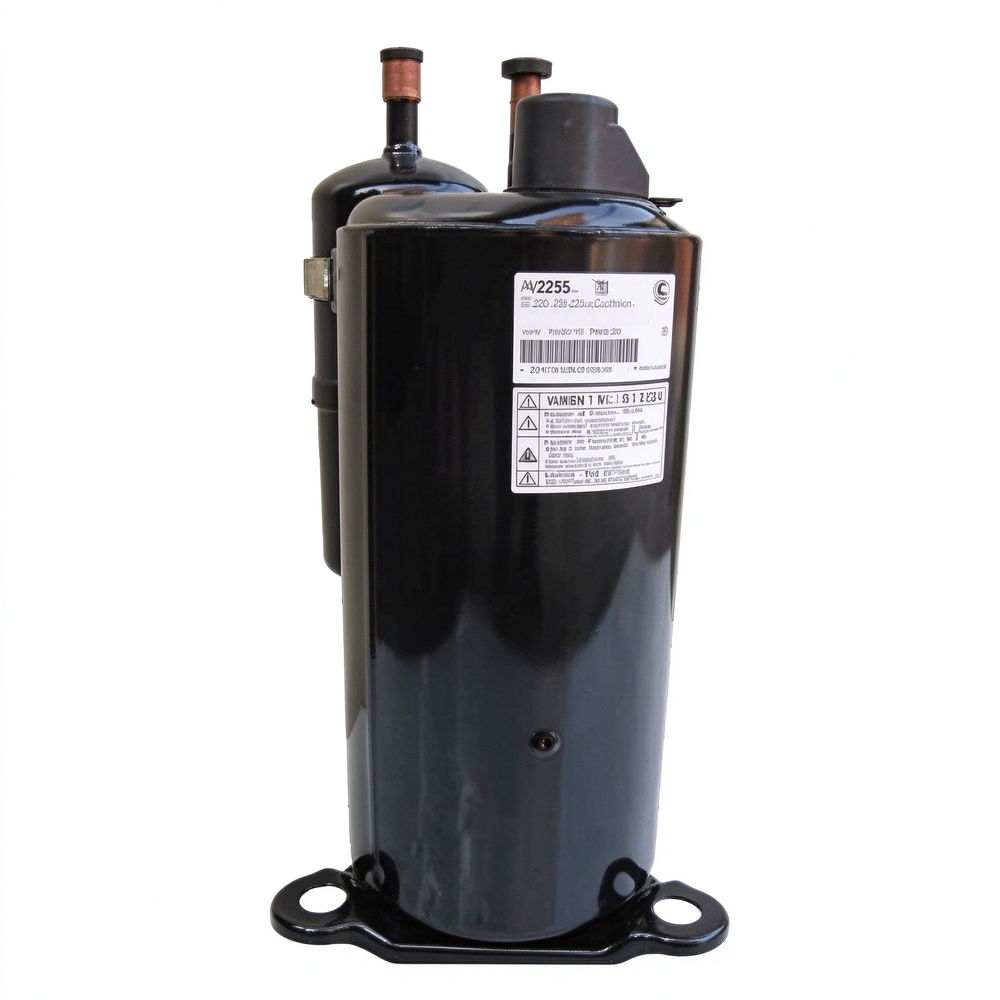

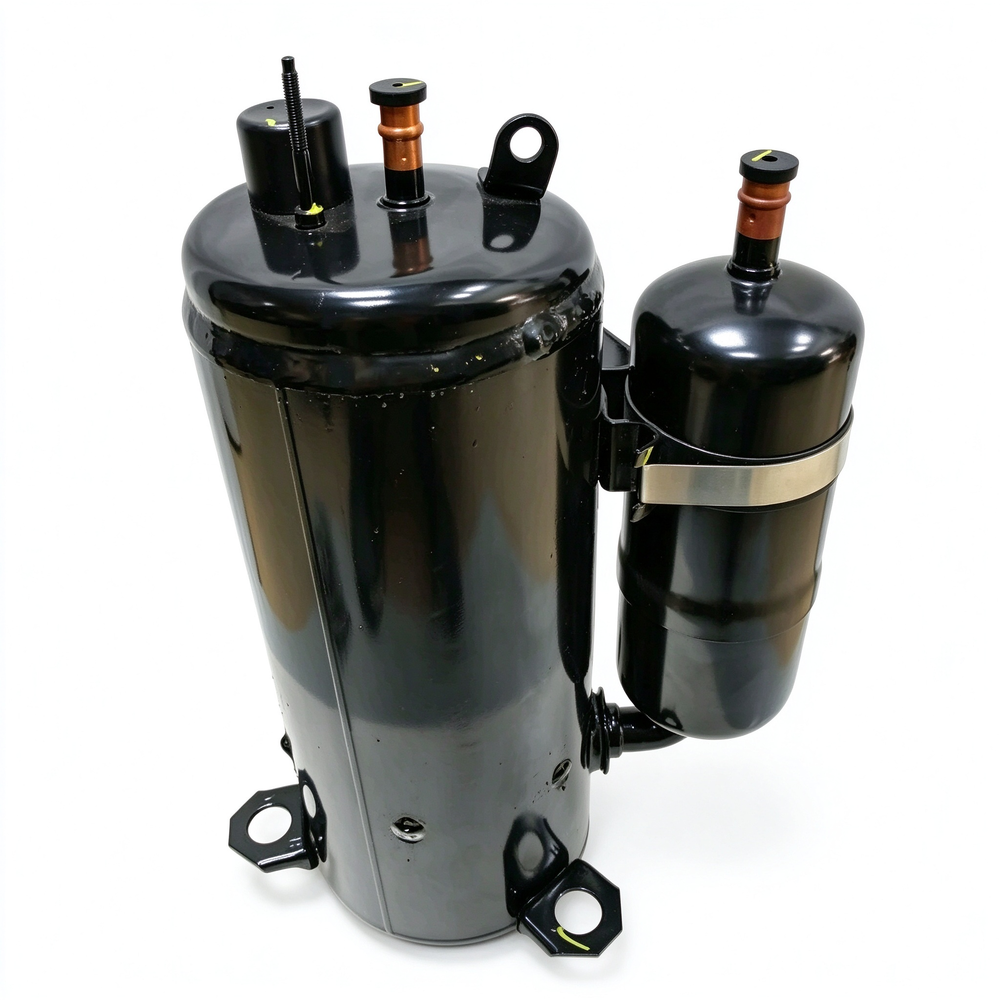

Hermetic rotary compressor for split air conditioners, dehumidifiers, heat pump water heaters and small refrigeration units. Available in fixed-speed and DC-inverter versions, compatible with R32, R410A, R22 and R134a. Compact, quiet and energy-efficient replacement compressors for 9,000 to 36,000 BTU systems.
The rotary compressor uses an eccentric roller inside a cylindrical chamber to compress refrigerant continuously. Its simple structure, small footprint and low noise make it the standard choice for residential and light-commercial air conditioning. A fully hermetic shell contains the motor and compression mechanism, eliminating external shaft seals and refrigerant leaks. We supply replacement rotary compressors in both fixed-speed and DC-inverter versions, covering 9,000 to 36,000 BTU cooling capacity.
Key Features:
Specifications:
| Parameter | Value |
|---|---|
| Type | Hermetic rotary compressor |
| Capacity range | 9,000 – 36,000 BTU/h (approx. 1 HP – 5 HP) |
| Speed type | Fixed speed (ON/OFF) / DC inverter |
| Voltage | 115V/60Hz; 220–240V/50Hz; 380V/3ph/50–60Hz |
| Refrigerants | R32, R410A, R22, R134a, R290 |
| Mounting | Vertical / horizontal |
| Motor protection | Internal overload |
| Application type | HBP / MBP |
| Cooling method | Air-cooled |
| Noise level | 45–60 dBA (model dependent) |
Applications:
Split air conditioners, window AC, portable AC, dehumidifiers, heat pump water heaters, wine coolers, small chillers, refrigerated display cases.
Ordering:
MOQ negotiable; lead time 10–25 days; OEM/ODM with custom marking; samples available.
