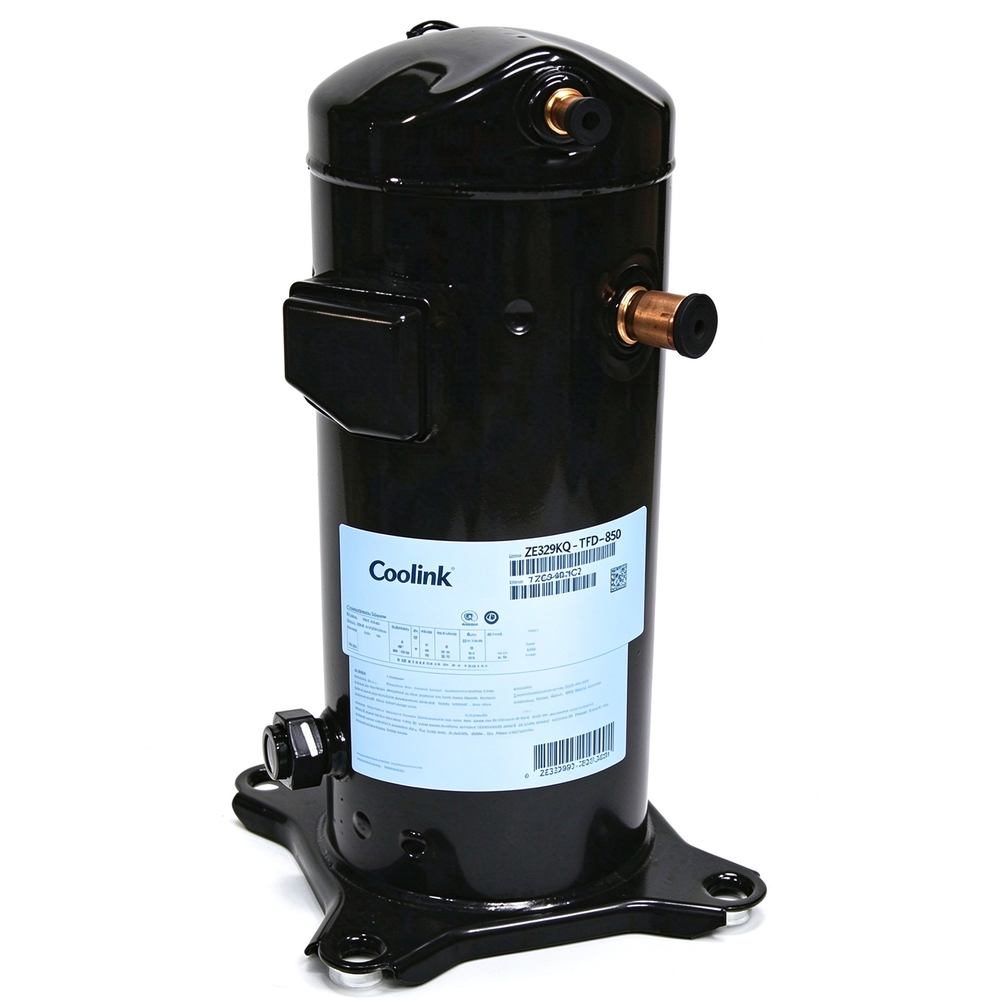

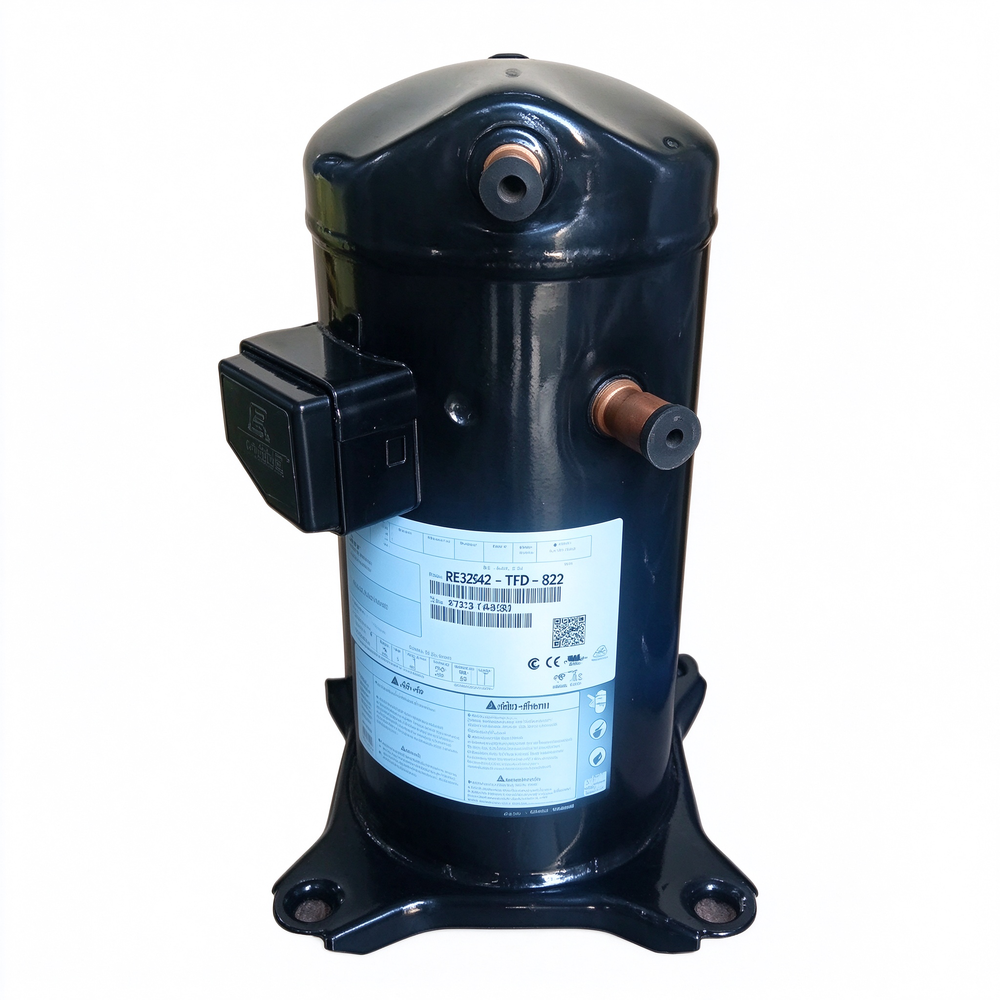

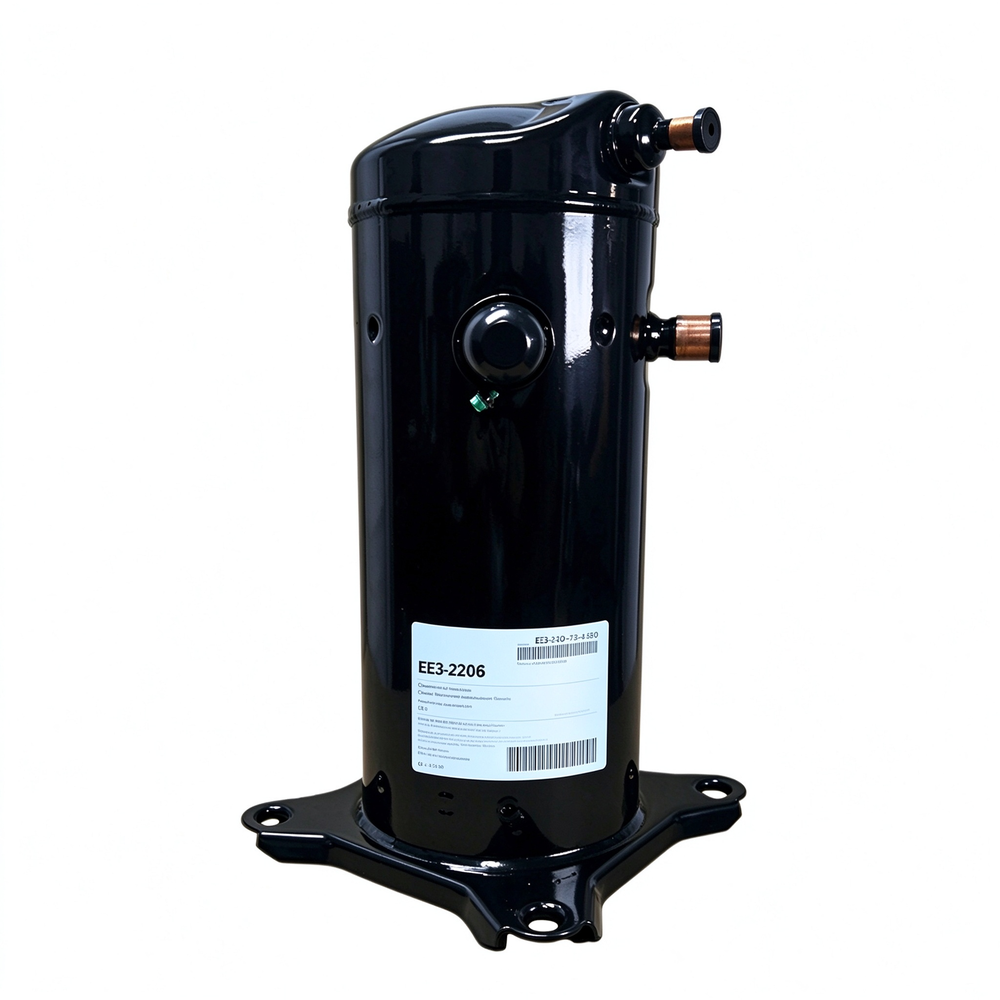

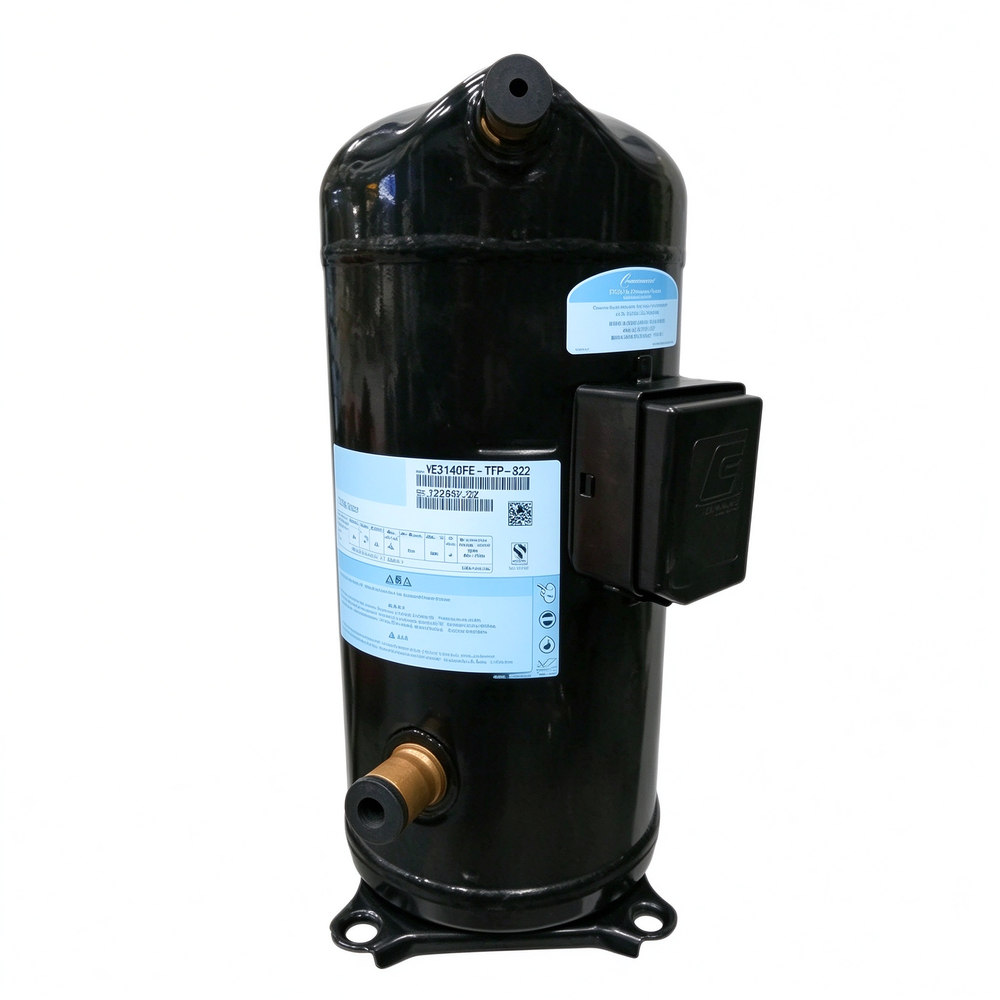

Hermetic scroll compressor 2-25HP for refrigeration. R410A/R404A/R134A, low vibration, wide voltage range. Vertical hermetic design with built-in overload protection and crankcase heater. Suitable for chillers, cold rooms, condensing units and rooftop AC systems.Wholesale, MOQ negotiable, OEM/ODM.
The scroll compressor uses two interleaved spiral scrolls to compress refrigerant in a continuous, smooth motion. With fewer moving parts than reciprocating compressors, it delivers lower vibration, lower noise and higher volumetric efficiency across medium- and high-back-pressure applications. The fully hermetic shell isolates the refrigerant inside, preventing leaks and making the unit maintenance-free. We supply a wide range of replacement scroll compressors compatible with common refrigeration and air-conditioning systems.
Key Features:
Specifications:
| Parameter | Value |
|---|---|
| Type | Hermetic scroll compressor |
| Power range | 2 HP – 25 HP |
| Voltage | 220–240V/1ph/50Hz; 380–420V/3ph/50–60Hz; 440–480V/3ph/60Hz |
| Refrigerants | R410A, R404A, R134a, R407C, R32 |
| Mounting | Vertical |
| Motor protection | Internal overload |
| Crankcase heater | 70 W (selected models) |
| Application type | MBP / HBP |
| Cooling type | Air-cooled |
| Noise level | 55–70 dBA (model dependent) |
Applications :
Air-conditioning units, chillers, heat pumps, condensing units, cold rooms, refrigerated display cases.
Ordering:
MOQ negotiable; lead time 10–25 days; OEM/ODM; samples available.
