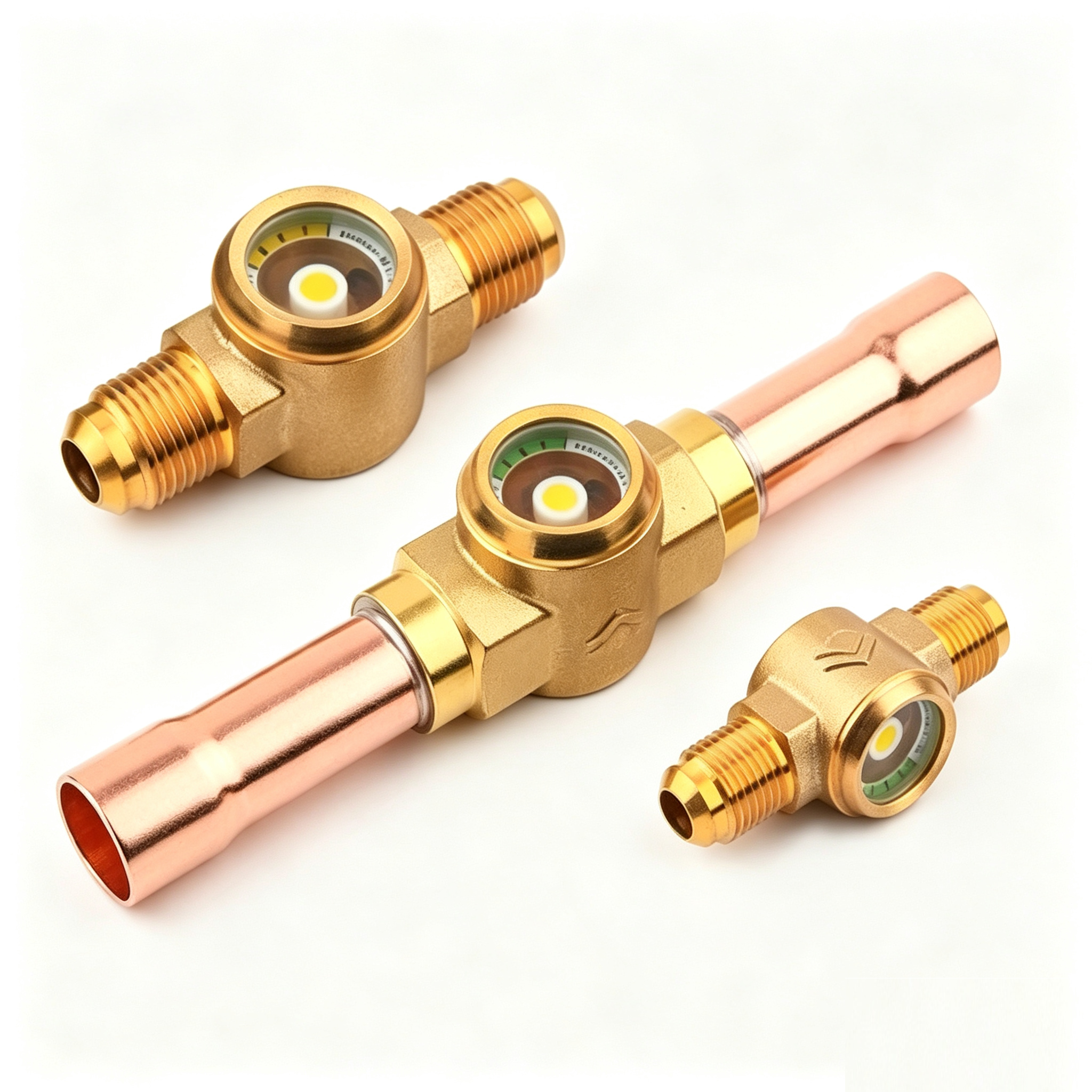

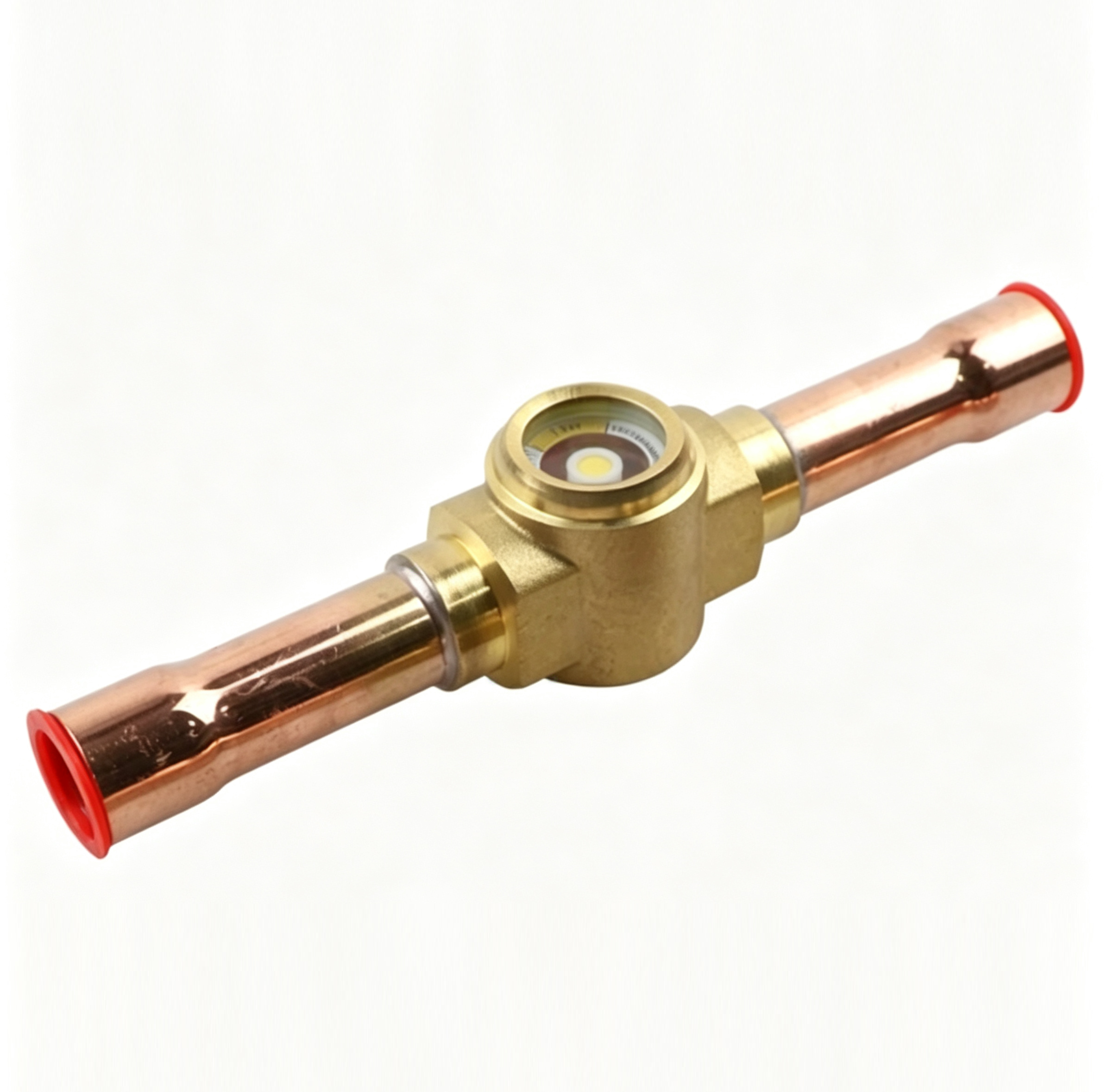

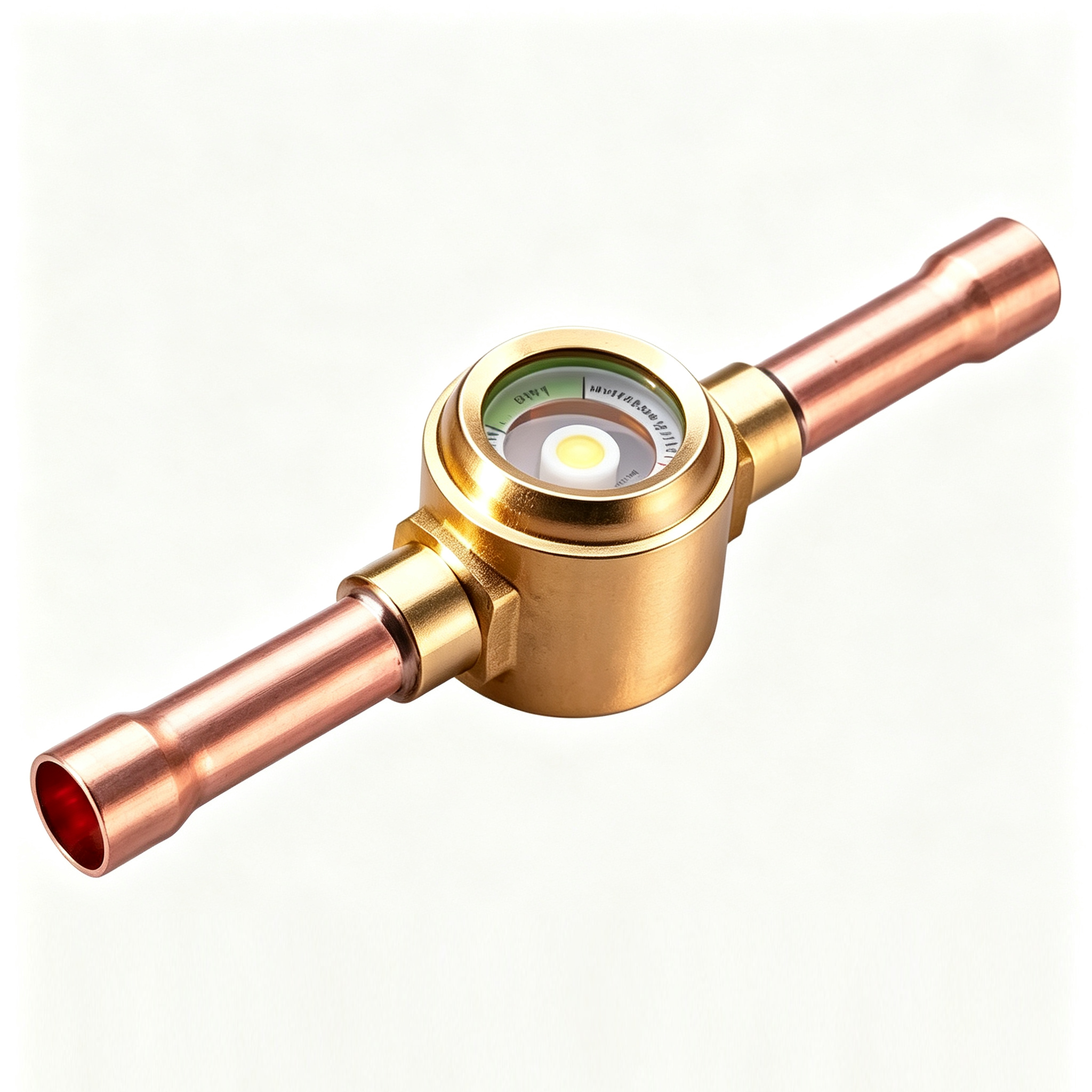

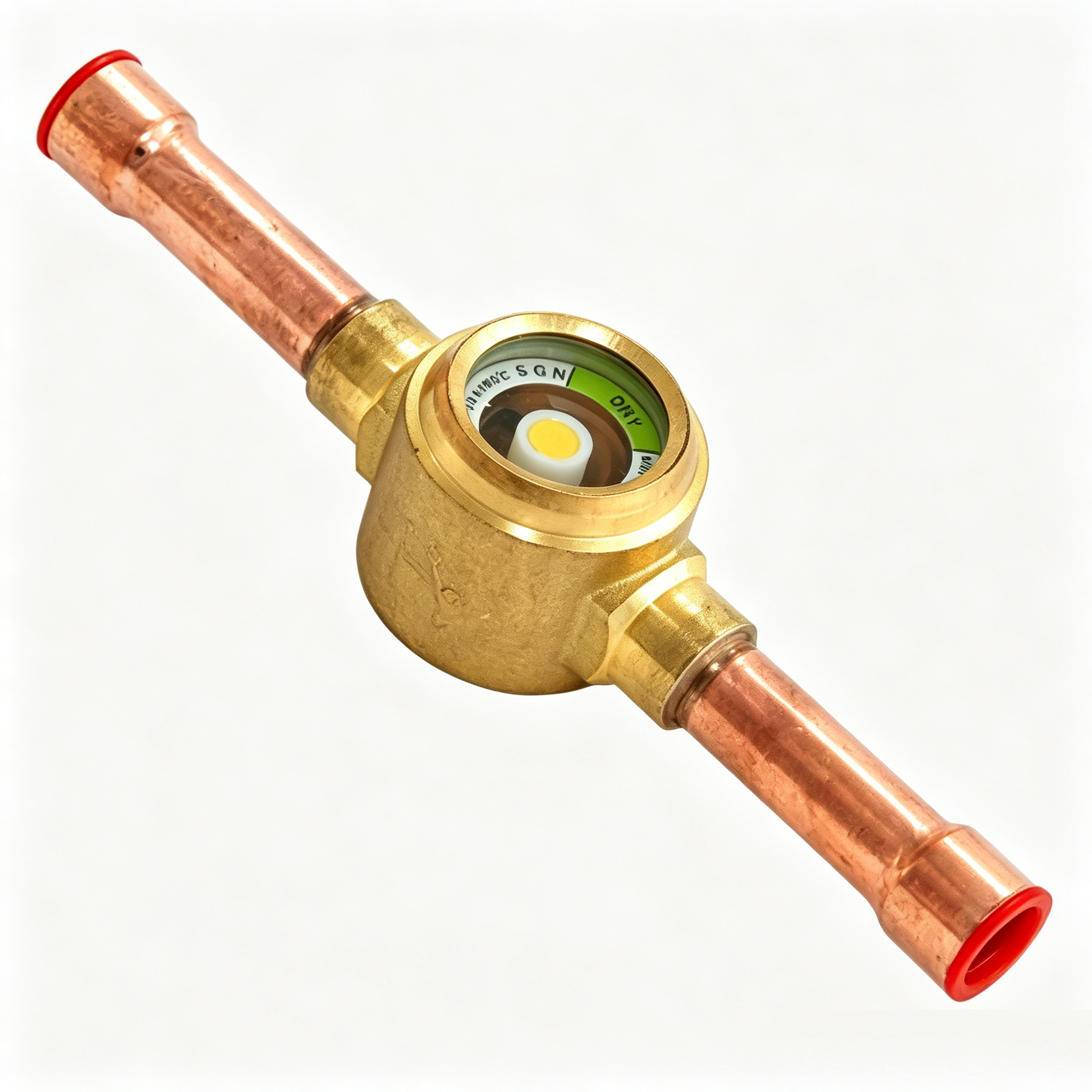

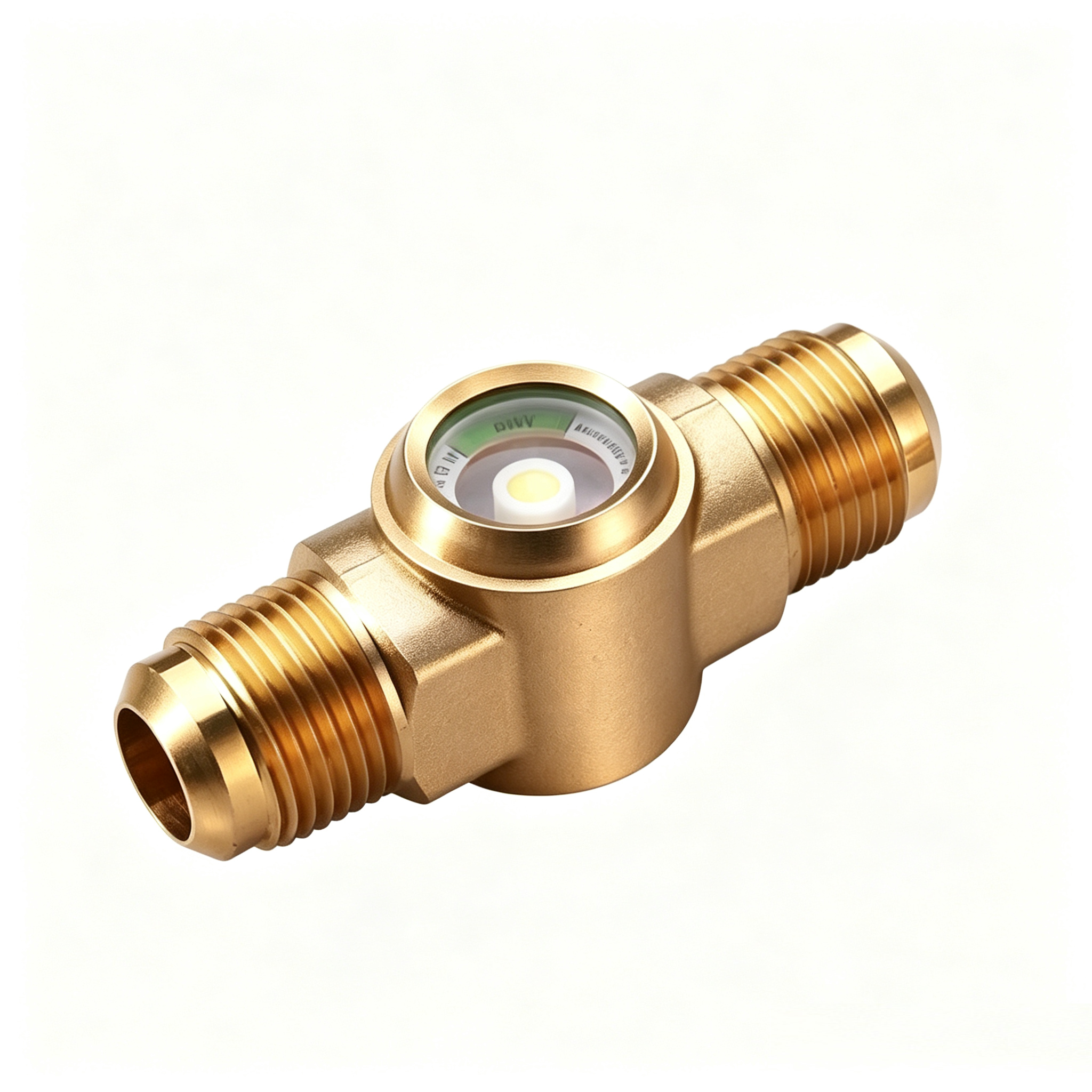

Brass sight glass with moisture indicator for HVAC and refrigeration liquid lines. ODF solder and SAE flare connections. Working pressure up to 46 bar. Temperature range -40°C to +80°C. Compatible with R22, R134a, R404A, R407C, R410A, R507C.
Our Brass Sight Glass is installed after the filter drier on the liquid line to provide visual monitoring of refrigerant flow condition and moisture content. The wide-angle glass offers clear visibility, while the high-precision color-changing indicator gives an at-a-glance reading of system moisture levels.
Constructed from forged brass with a PTFE seal for leak-free performance. Available in ODF solder and SAE flare connections.
| Parameter | Details |
|---|---|
| Material | Forged Brass |
| Indicator | High-precision color-changing moisture indicator |
| Glass | Wide-angle, high-clarity sight glass |
| Seal | PTFE |
| Connection | ODF Solder / SAE Flare |
| Size Range | 1/4″ – 7/8″ (6mm – 22mm) |
| Max Working Pressure | 46 bar (667 psig) |
| Temperature Range | -40°C to +80°C |
| Refrigerants | R22, R134a, R404A, R407C, R410A, R507C |
Dual Function – Monitors both refrigerant flow (bubble detection) and moisture content in one fitting
Clear Visibility – Wide-angle glass with bright internal finish for easy reading in the field
Leak-Proof Sealing – PTFE seal ensures reliable performance under high pressure and thermal cycling
High Pressure Rated – 46 bar working pressure covers R410A and other high-pressure refrigerants
Corrosion Resistant – Forged brass body withstands moisture and refrigerant exposure
Liquid line monitoring in split AC, central HVAC, and commercial refrigeration
System commissioning and service diagnostics — refrigerant charging and moisture verification
Installation after filter drier in the liquid line
Connection – ODF solder or SAE flare, sizes 1/4″ to 7/8″
Packaging – Individual box or bulk carton
Lead Time – 7–25 days
MOQ – Flexible; samples available
For datasheets, samples, or bulk pricing, contact us directly.
