Universal AC/DC inverter control system kits for 6000–24000 BTU ACs. Drives DC/AC compressor, outdoor DC/AC fan, indoor DC/PG fan & EEV. FOC tech, 106–282V. Includes boards, display & sensors.
Universal AC/DC inverter control kit for 6000–24000 BTU air conditioners. Input 106–282V. 180° sine-wave FOC technology. Capable of driving strong DC/AC compressors, outdoor DC/AC fan motors, indoor DC/PG fan motors, and electronic expansion valves (EEV). Includes indoor/outdoor boards, display, and sensors. OEM support.
| Parameter | Details |
|---|---|
| Product Type | Universal AC/DC Inverter Control System |
| Capacity Variants | 12000 BTU / 24000 BTU (covers 6000–24000 BTU range) |
| Input Voltage | 106–282V, 50/60Hz |
| Max Current | 15A / 20A (depends on capacity) |
| Compressor Drive | Strong DC/AC Compressor |
| Outdoor Fan Drive | Outdoor DC/AC Fan Motor |
| Indoor Fan Drive | Indoor DC/PG Fan Motor |
| Valve Drive | Electronic Expansion Valve (EEV) |
| Working Temperature | -10°C to +55°C |

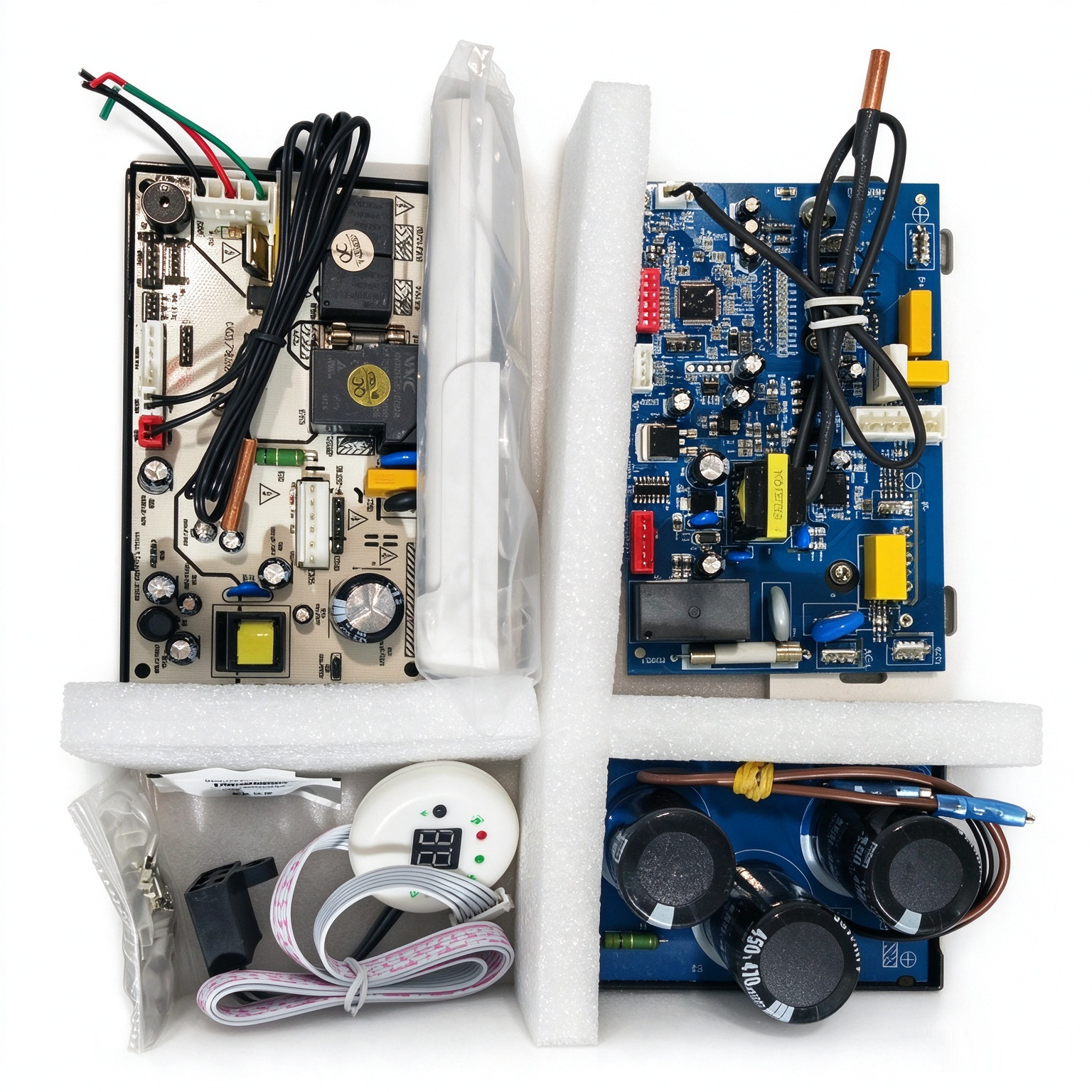

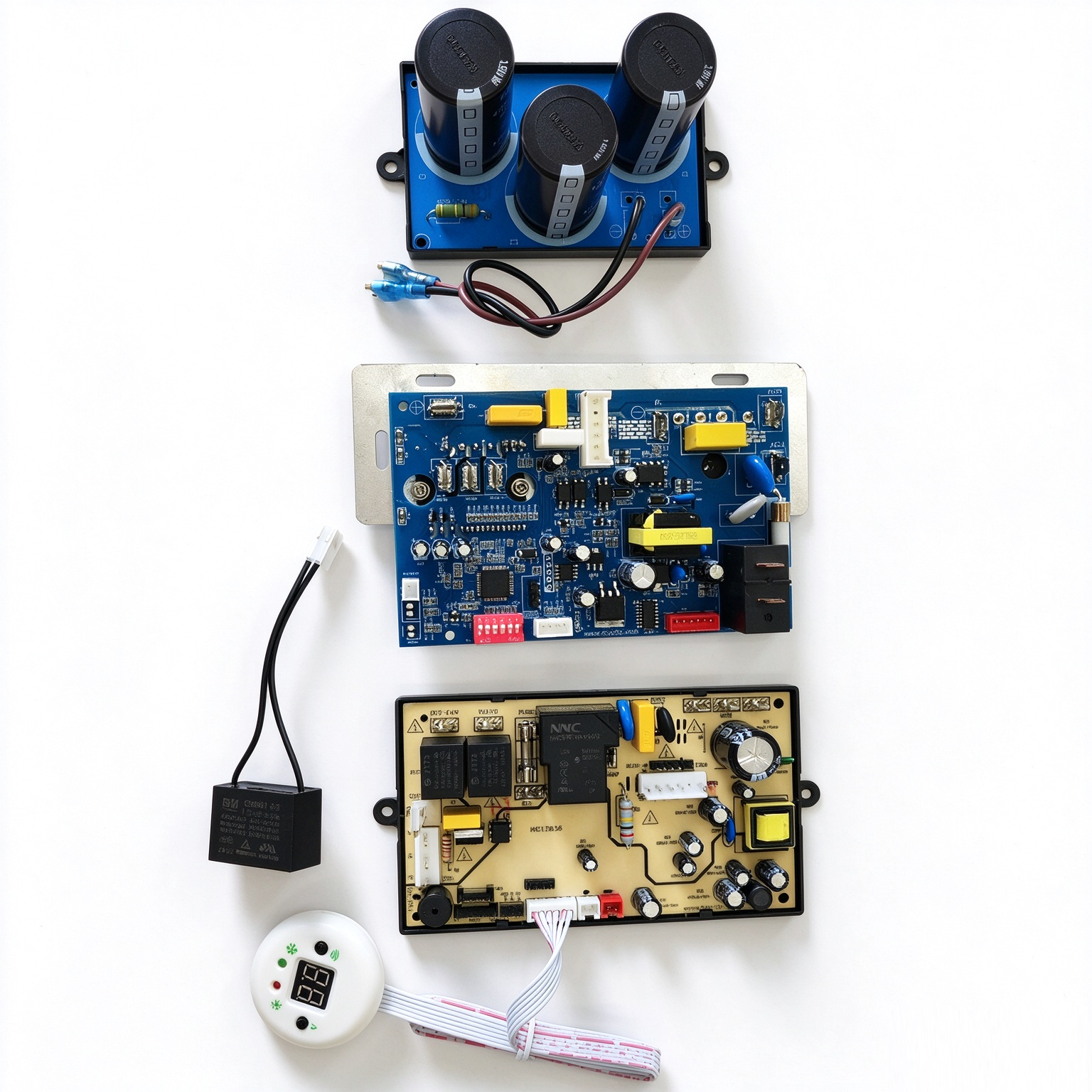

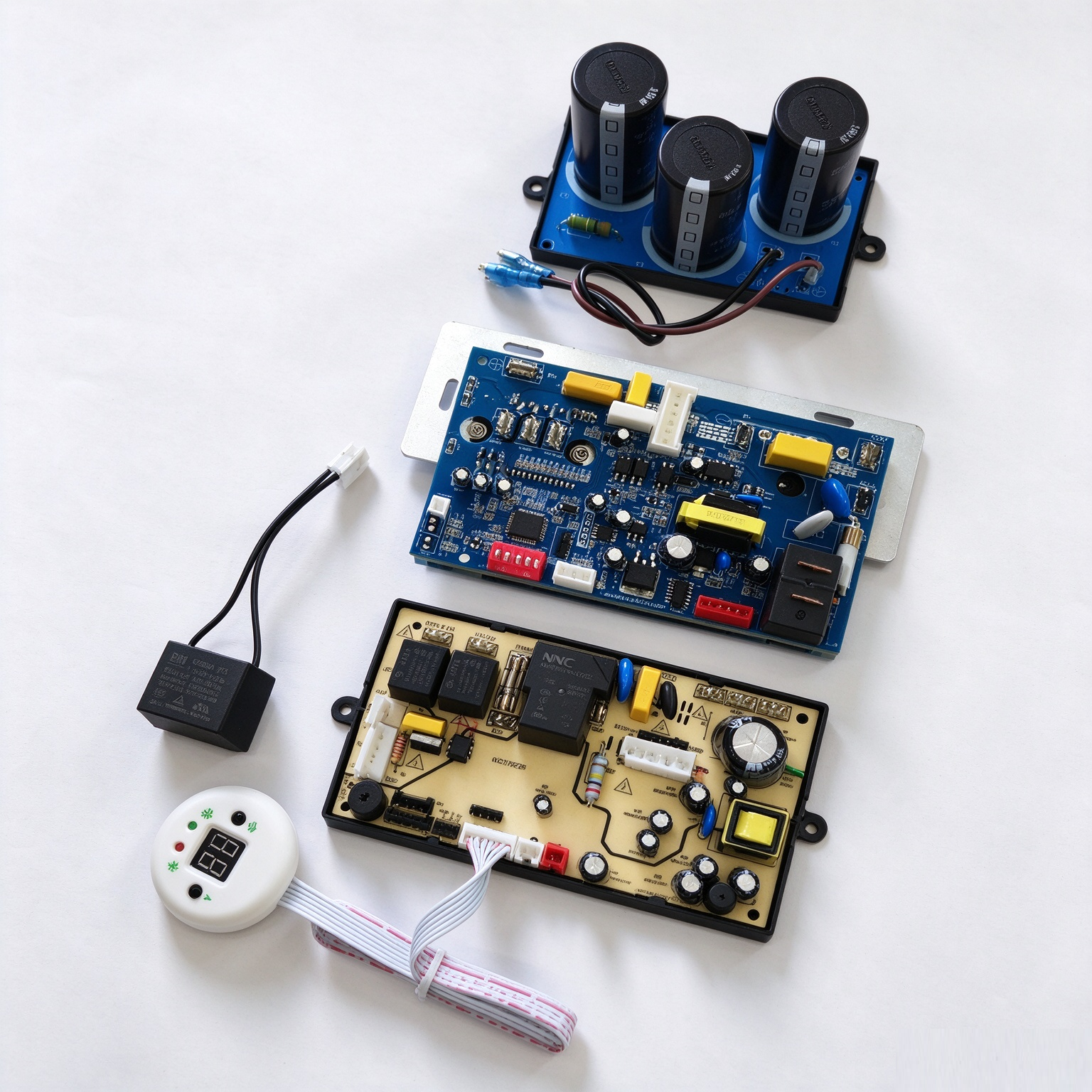

| Included Components | Indoor board, outdoor board, display board, connecting cables, sensors |
Universal Drive Capability – Drives strong DC/AC compressors and outdoor DC/AC fan motors. Offers ultimate flexibility for replacing various AC brands.
Supports Indoor DC/PG Fans – Compatible with modern indoor DC or PG fan motors. Ensures smooth airflow control and energy savings.
Integrated EEV Control – Built-in electronic expansion valve (EEV) drive capability. Matches high-end inverter systems without needing extra modules.
Wide Capacity Coverage – Supports 12000 BTU and 24000 BTU systems (6000–24000 BTU range). Covers standard residential to large room air conditioners.
Advanced FOC Technology – 180° sine-wave FOC control ensures smooth compressor operation. Improves energy efficiency and reduces noise.
Wide Voltage Range – Operates on 106–282V, 50/60Hz. Suitable for unstable power grids and global markets.

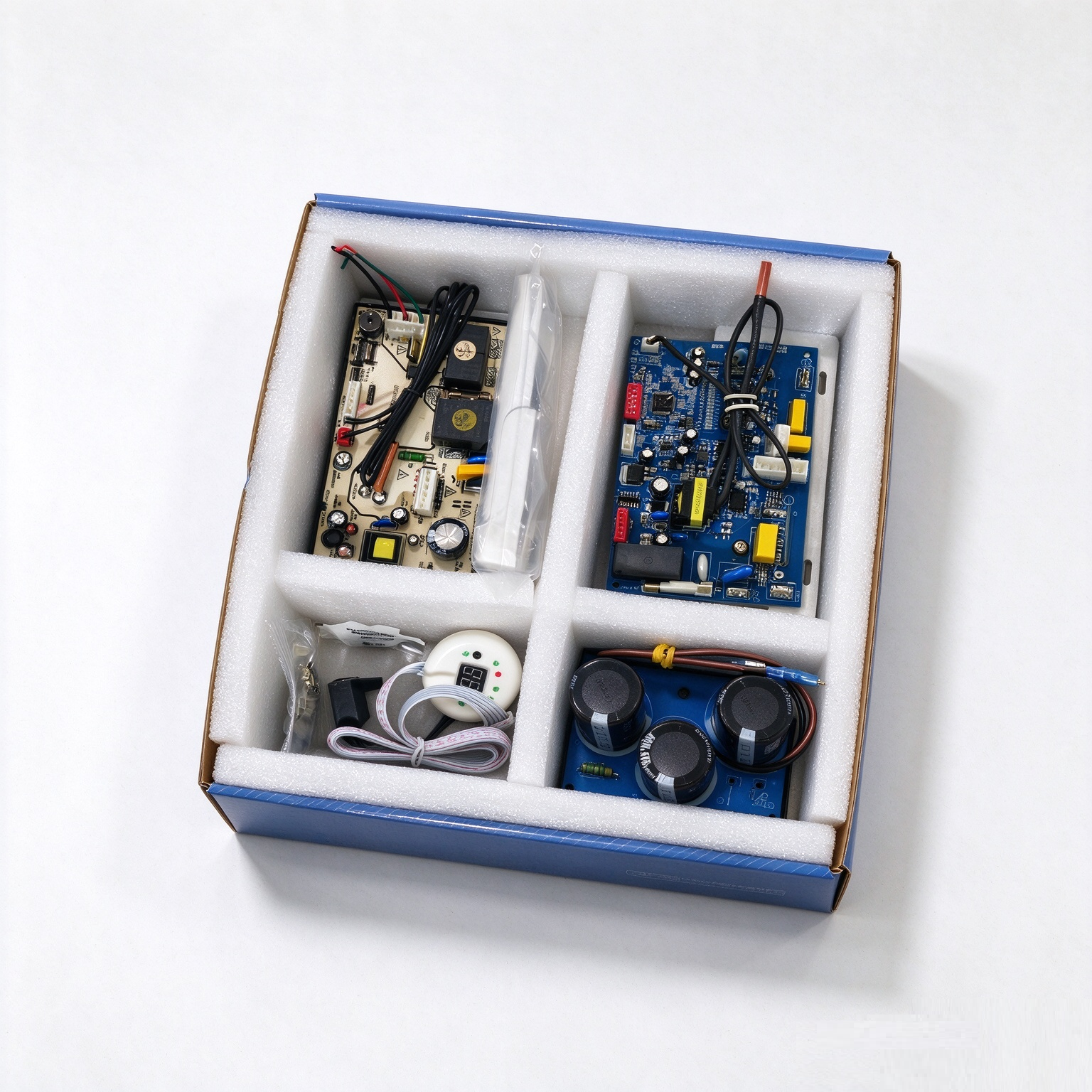

Complete Kit Included – Comes with indoor board, outdoor board, display, and sensors. Ready for immediate installation.
Comprehensive Protection – Multi-type protection includes over-current, over-voltage, and self-diagnosis. Ensures long-term system safety.
OEM & ODM Support – Custom logo and packaging available. Produced per customer specifications.
Export Packaging – Seaworthy carton and pallet packaging. Suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (capacity, fan type, throttling type) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
