Welded copper filter driers for refrigerators, freezers & air conditioners. 5g–50g molecular sieve, 100μm filtration. R134a, R404A, R410A, R600a compatible. Free samples.

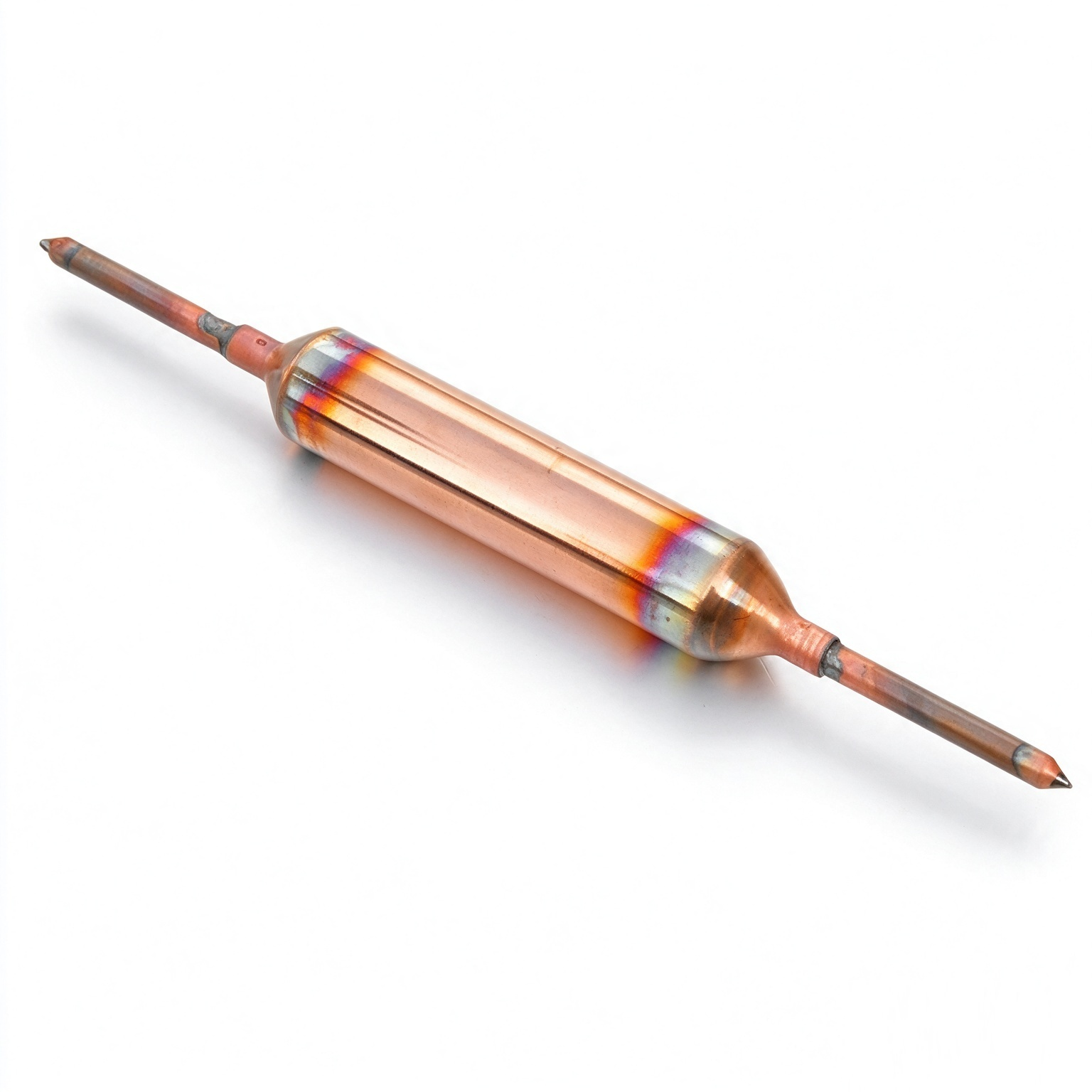

Welded copper filter drier for one-way refrigeration circuits. Compact spun copper body with mixed desiccant absorbs moisture and acid, filtering solid contaminants down to 100μm. Molecular sieve 5g–50g. Compatible with R134a, R404A, R407C, R410A, R507C, R600a. Max working pressure 4.2 MPa. ODF welded connections. Custom sizes available. OEM & ODM support.
| Parameter | Details |
|---|---|
| Product Type | Welded Copper Filter Drier |
| Body Material | Spun copper / Copper-plated steel |
| Connection Type | Welded ODF (Solder) |
| Molecular Sieve | XH-9 / XH-5 / XNi-77-9 (mixed desiccant) |
| Molecular Sieve Weight | 5g, 7g, 10g, 12g, 15g, 20g, 25g, 30g, 40g, 50g |
| Filtration Rating | 100μm (standard), finer options available |
| Body Diameter | 16mm – 30mm |
| Overall Length | 80mm – 250mm |
| Extension Tube | Φ6.35mm (1/4″) × 50mm, or as per request |
| Max Working Pressure | 4.2 MPa (42 bar) |
| Burst Pressure | ≥13.5 MPa |
| Operating Temperature | -30°C to +80°C |
| Compatible Refrigerants | R134a, R404A, R407C, R410A, R507C, R600a, R22 |
| Inner Cleanliness | Residual moisture ≤25mg/100cm³; residual impurity ≤30mg/100cm³ |
Dual Function Protection – Absorbs moisture and acid while filtering solid contaminants down to 100μm, protecting compressors from premature failure caused by ice blockages, acid formation, and particulate damage.
High Moisture & Acid Capacity – Mixed desiccant (molecular sieve + activated alumina) provides high static water absorption rate (≥20%), effectively removing moisture and acid from the refrigerant circuit.
Corrosion-Resistant Copper Body – Spun copper construction offers excellent corrosion resistance, making it suitable for coastal and marine applications where standard steel-bodied driers may fail.
Compact & Lightweight – Compact design with low weight minimizes space occupation and vibration load on piping, suitable for refrigerators, water dispensers, and compact HVAC units.
Welded ODF Connections – Full copper fittings allow clean, leak-free welded installation. Compatible with standard copper tubing and brazing alloys.
Stable Bulk Supply – Standard sizes ship in 15–25 days, supporting rolling replenishment and reducing inventory capital occupation.
OEM & ODM Support – Custom logo, packaging, and product labeling available. Can produce according to customer drawings or samples.
Batch Traceability – Each batch undergoes strict quality inspection.
Export Packaging – Seaworthy carton and pallet packaging, suitable for long-distance ocean shipping.
For technical datasheets, samples, or bulk pricing, contact us directly.
Send your specifications (molecular sieve weight, connection size, refrigerant type) for a free technical evaluation and quotation within 24 hours. OEM and ODM orders welcome.
